Removal

2AZ-FE ENGINE MECHANICAL: ENGINE FRONT OIL SEAL: REMOVAL

REMOVAL

1. REMOVE FRONT WHEEL RH
2. REMOVE FRONT FENDER APRON SEAL RH
3. REMOVE ENGINE UNDER COVER LH
4. REMOVE ENGINE UNDER COVER RH
5. REMOVE V-RIBBED BELT Removal
6. REMOVE CRANKSHAFT PULLEY
(a) TMMK made:




(1) Using SST, secure the pulley in place and loosen the pulley bolt.
SST: 09960-10010
09962-01000
09963-01000




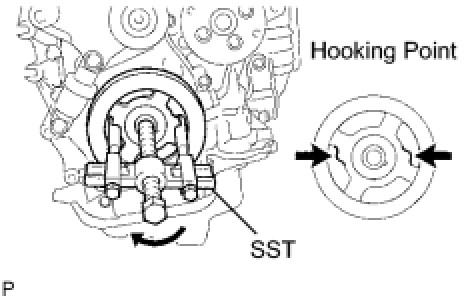

(2) Using SST, remove the pulley bolt and pulley.
SST: 09950-40011
09951-04010
09952-04010
09953-04030
09955-04041
09957-04010
09954-04010
91111-51014
(b) TMC made:

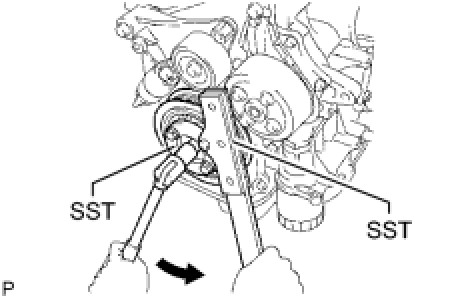

(1) Using SST, secure the pulley in place and loosen the pulley bolt.
SST: 09213-54015
91651-60855
SST: 09330-00021

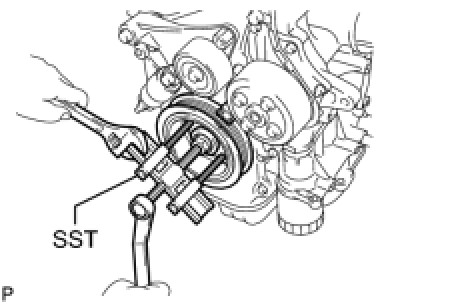

(2) Using SST, remove the pulley bolt and pulley.
SST: 09950-50013
09951-05010
09952-05010
09953-05020
09954-05021
SST: 09950-40011
09957-04010
HINT: If necessary, remove the pulley and pulley bolt using SST.

7. REMOVE TIMING CHAIN CASE OIL SEAL

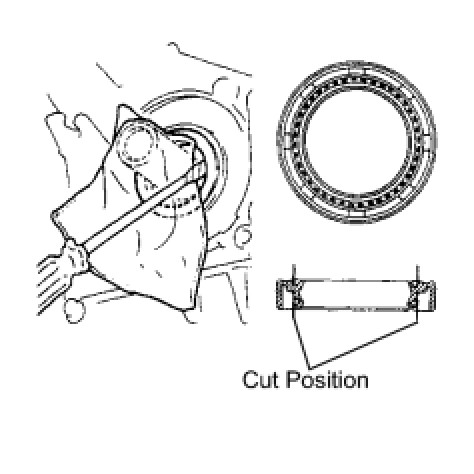

(a) Using a knife, cut off the oil seal lip.
(b) Using a screwdriver with the tip taped, pry out the oil seal.
NOTICE: After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
