2AZ-FE ENGINE MECHANICAL: ENGINE REAR OIL SEAL: REMOVAL

REMOVAL

1. SEPARATE AUTOMATIC TRANSAXLE ASSEMBLY (for Automatic Transaxle)
HINT: Removal.

2. SEPARATE MANUAL TRANSAXLE ASSEMBLY (for Manual Transaxle)
HINT: Removal.

3. REMOVE DRIVE PLATE & RING GEAR SUB-ASSEMBLY (for Automatic Transaxle)
(a) TMMK made:




(1) Using SST, hold the crankshaft.
SST: 09960-10010
09962-01000
09963-01000
(b) TMC made:




(1) Using SST, hold the crankshaft.
SST: 09213-54015
91651-60855
SST: 09330-00021

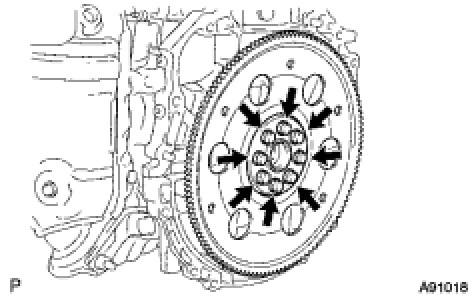

(c) Remove the 8 bolts, rear spacer, drive plate and front spacer.
4. REMOVE CLUTCH COVER ASSEMBLY (for Manual Transaxle) Disassembly
5. REMOVE CLUTCH DISC ASSEMBLY (for Manual Transaxle) Disassembly
6. REMOVE FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)
(a) TMMK made:




(1) Using SST, hold the crankshaft.
SST: 09960-10010
09962-01000
09963-01000
(b) TMC made:




(1) Using SST, hold the crankshaft.
SST: 09213-54015
91651-60855
SST: 09330-00021

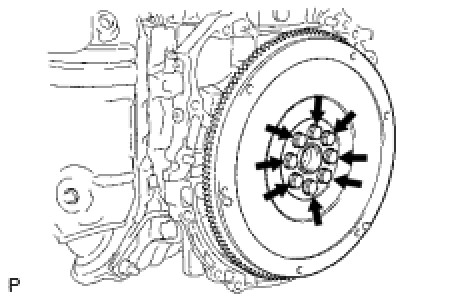

(c) Remove the 8 bolts and flywheel.
7. REMOVE ENGINE REAR OIL SEAL

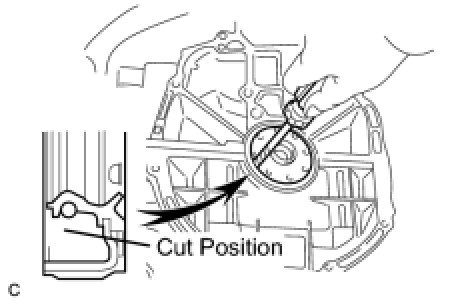

(a) Using a knife, cut through the oil seal lip.
(b) Using a screwdriver with its tip taped, pry out the oil seal.
NOTICE: After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
