Removal

AIR CONDITIONING: COMPRESSOR AND PULLEY (for 2AZ-FE): REMOVAL

REMOVAL

1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair
2. DISCONNECT REFRIGERANT FROM REFRIGERATION SYSTEM
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment Service Precautions

3. DRAIN ENGINE COOLANT Testing and Inspection
4. REMOVE FRONT WHEEL RH
5. REMOVE ENGINE UNDER COVER RH
6. REMOVE FRONT FENDER APRON SEAL RH
7. REMOVE V-RIBBED BELT Removal
8. REMOVE GENERATOR ASSEMBLY Removal
9. DISCONNECT RADIATOR HOSE OUTLET





(a) Using pliers, grip the claws of the clip and slide the clip to disconnect the radiator hose outlet.
10. REMOVE PIPING CLAMP





(a) Remove the piping clamp from the No. 1 cooler refrigerant discharge hose and No. 1 cooler refrigerant suction hose.
11. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE





(a) Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose from the compressor and pulley.
(b) Remove the O-ring from the No. 1 cooler refrigerant discharge hose.
NOTICE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

12. DISCONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE





(a) Remove the bolt and disconnect the No. 1 cooler refrigerant suction hose from the compressor and pulley.
(b) Remove the O-ring from the No. 1 cooler refrigerant suction hose.
NOTICE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

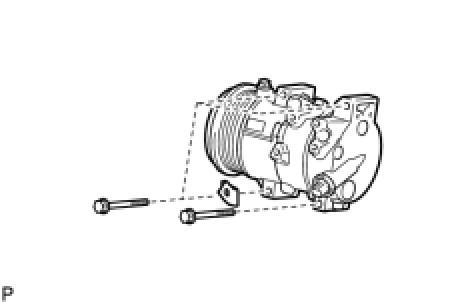

13. REMOVE COMPRESSOR AND PULLEY
(a) Disconnect the connector.





(b) Remove the 4 bolts, engine wire harness bracket, and the compressor and pulley.
