Home
>>
Toyota
>>
2009
>>
Camry L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Service and Repair
>>
Components
Components

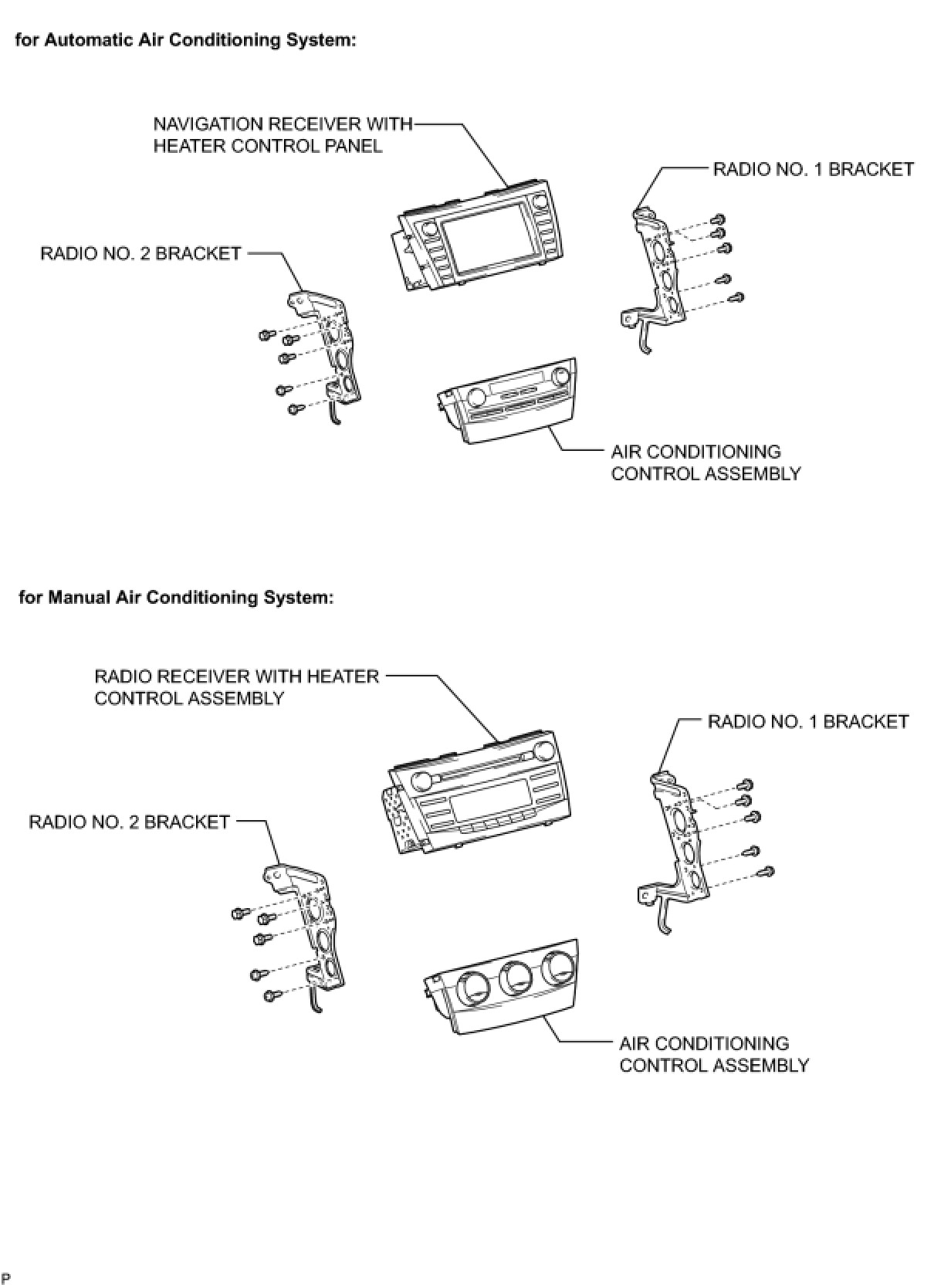

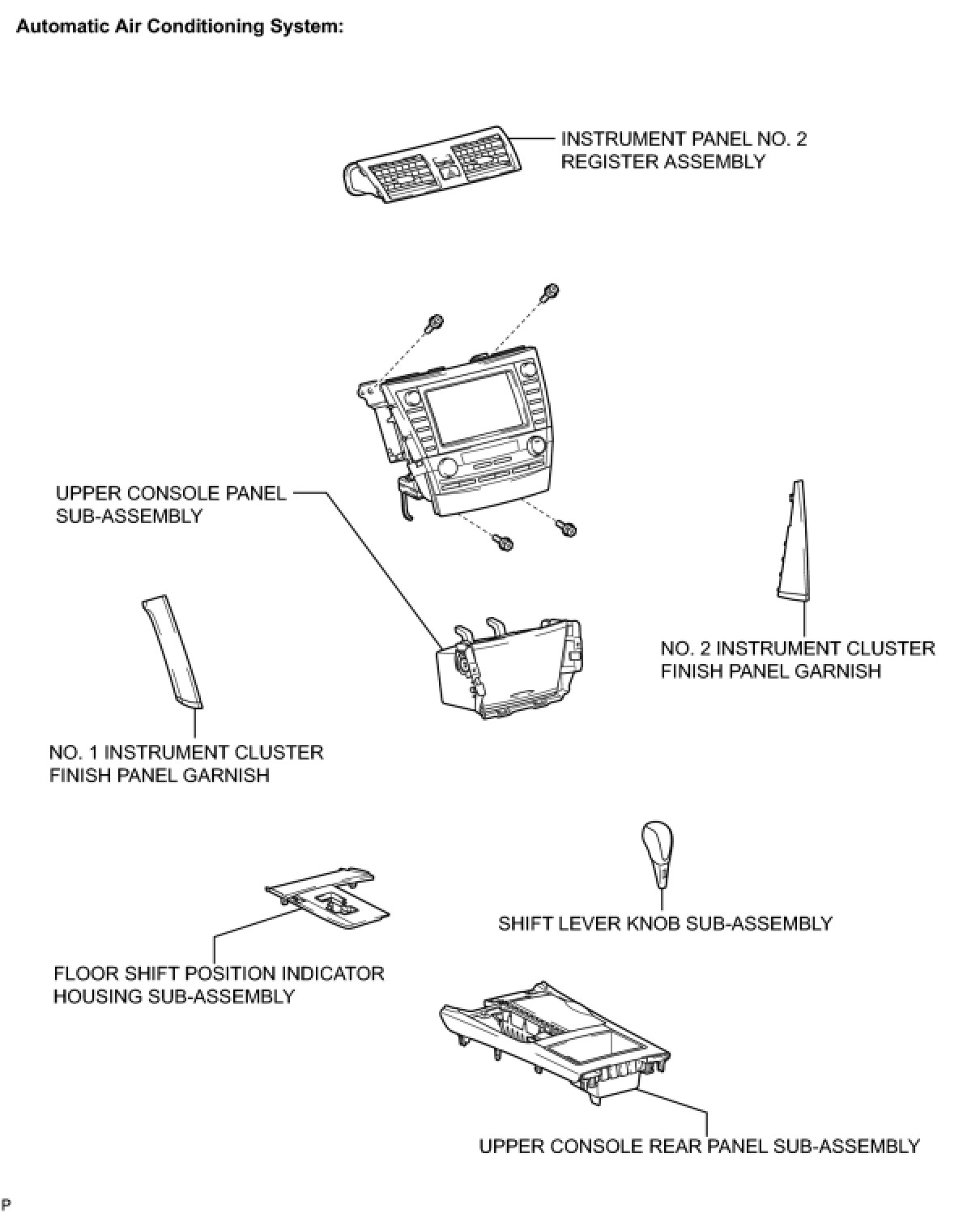

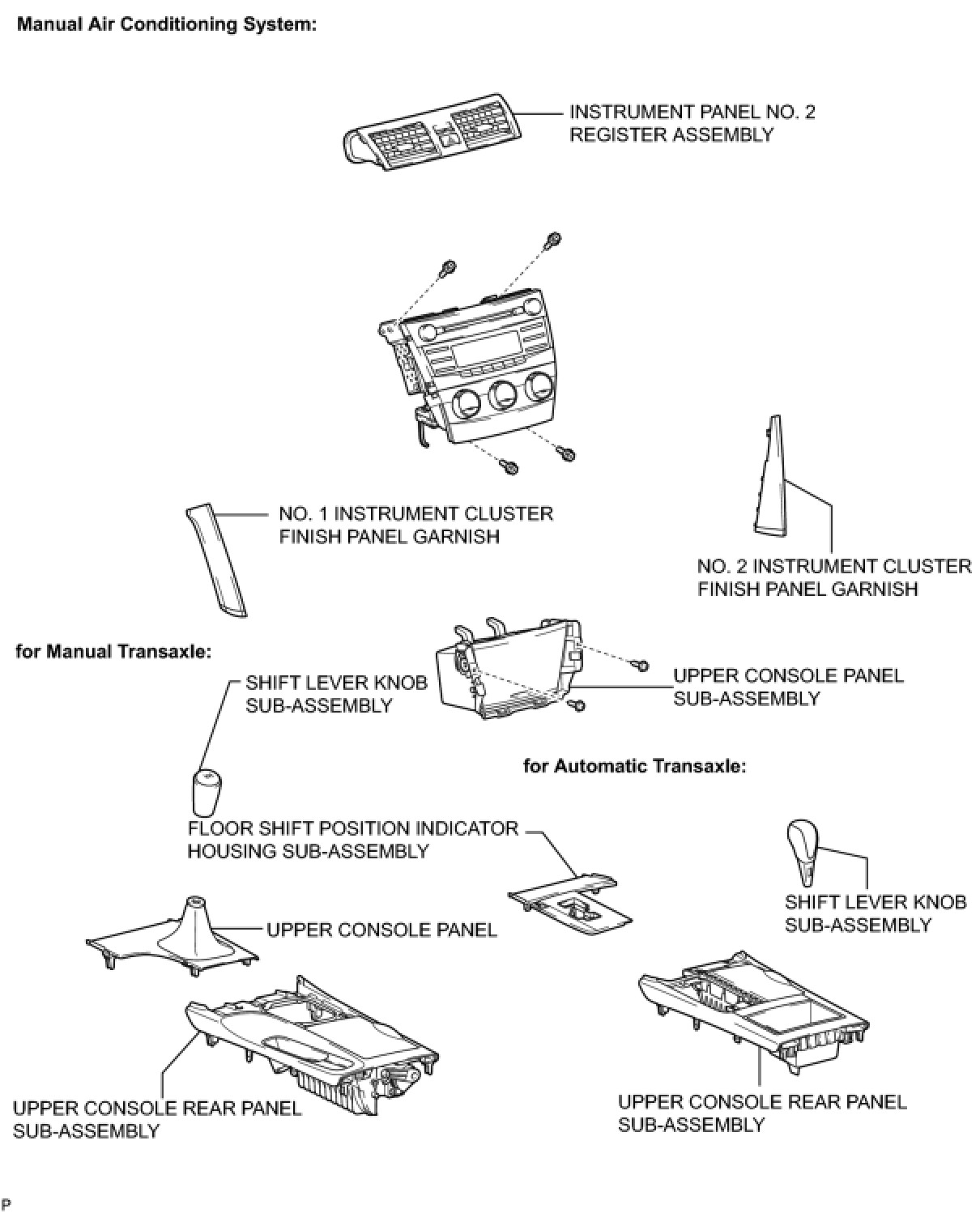

AIR CONDITIONING: AIR CONDITIONING PANEL: COMPONENTS
COMPONENTS
ILLUSTRATION
