BRAKE CONTROL: SKID CONTROL BUZZER (w/ VSC): REMOVAL

REMOVAL

1. PRECAUTION Removal
2. REMOVE FRONT DOOR SCUFF PLATE Removal
3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY Removal
4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made) Removal
5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made) Removal
6. REMOVE NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY Removal
7. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (w/o Smart Key System) Removal
8. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL (w/ Smart Key System) Removal

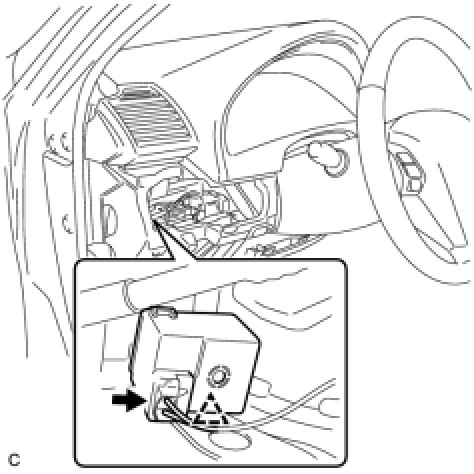

9. REMOVE SKID CONTROL BUZZER





(a) Disconnect the skid control buzzer connector.
(b) Remove the clip and skid control buzzer assembly.
