Meter / Gauge System

METER: METER / GAUGE SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

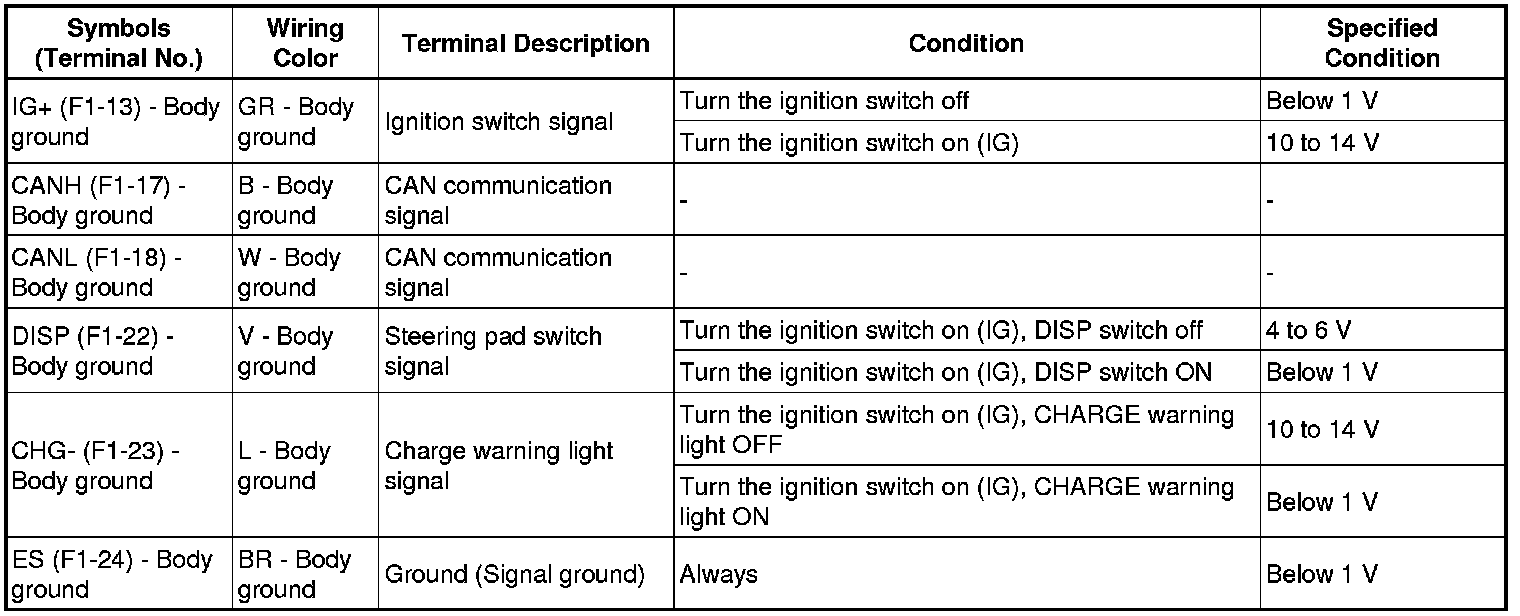

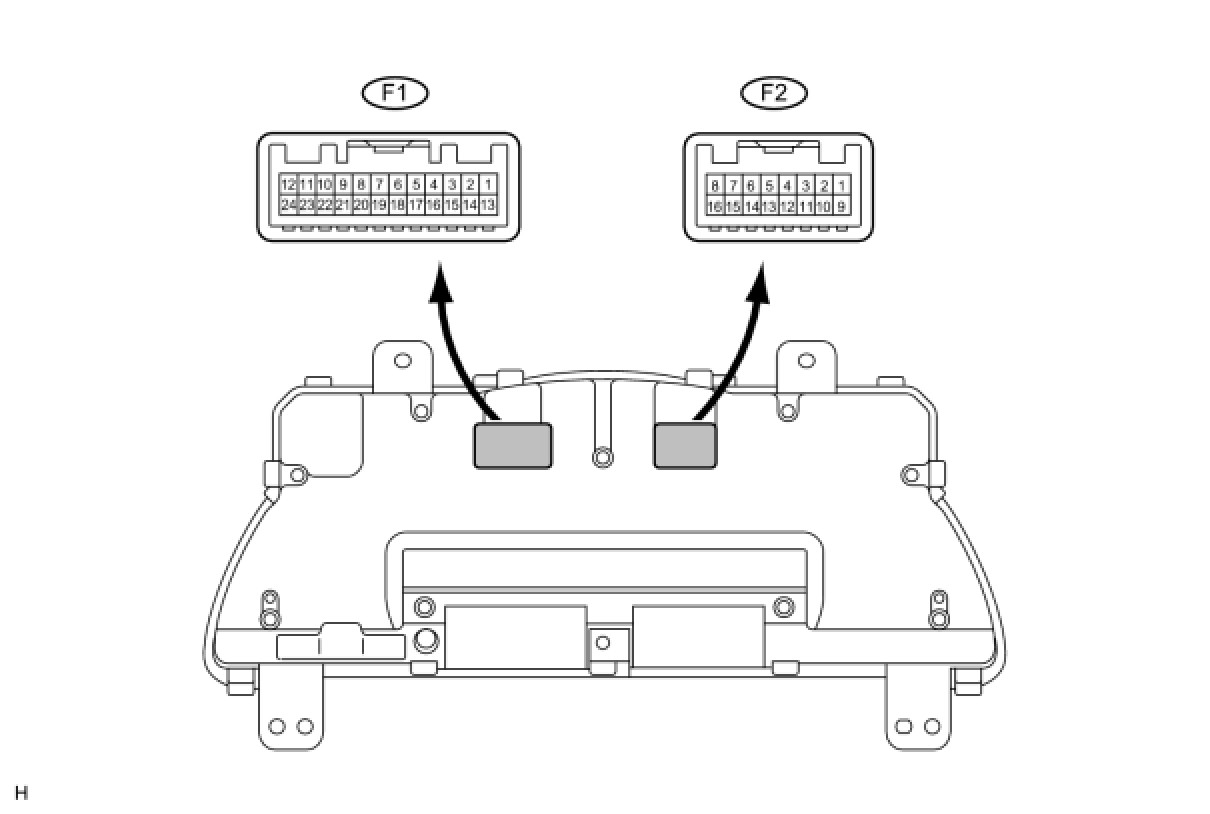

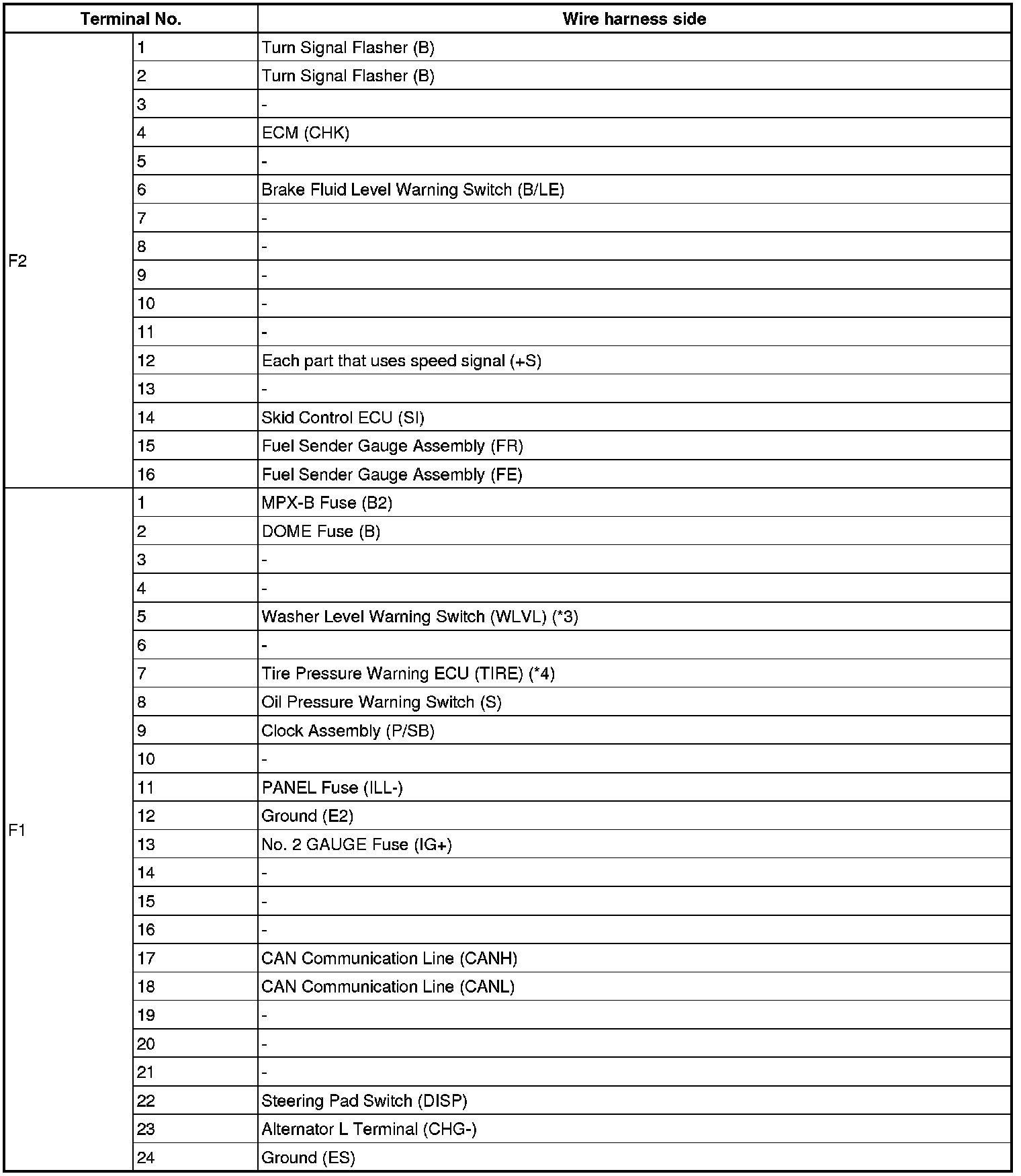

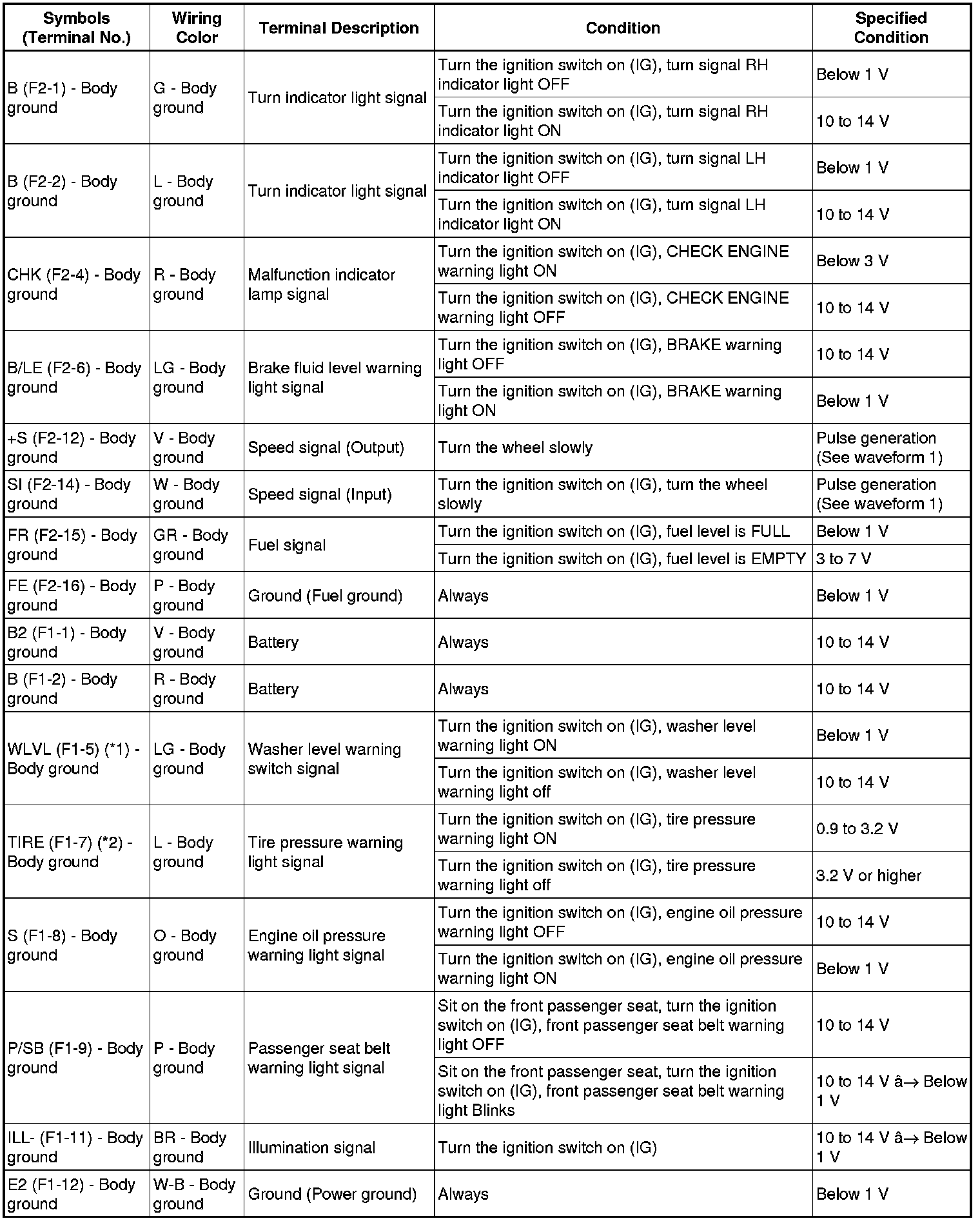

1. COMBINATION METER ASSEMBLY













*1: with Washer Level Warning Light
*2: with Tire Pressure Warning System

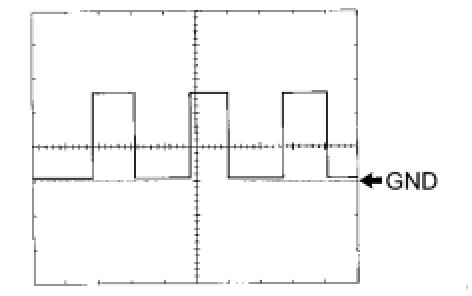

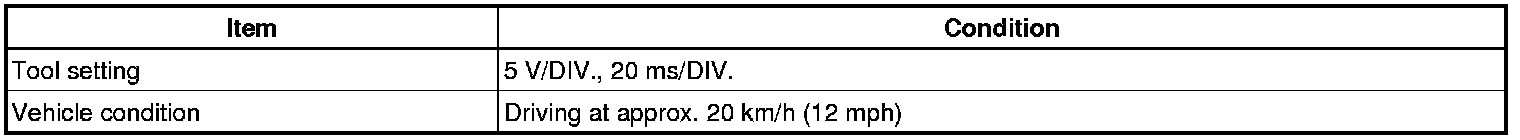

(a) Waveform 1 (Reference): Using oscilloscope:

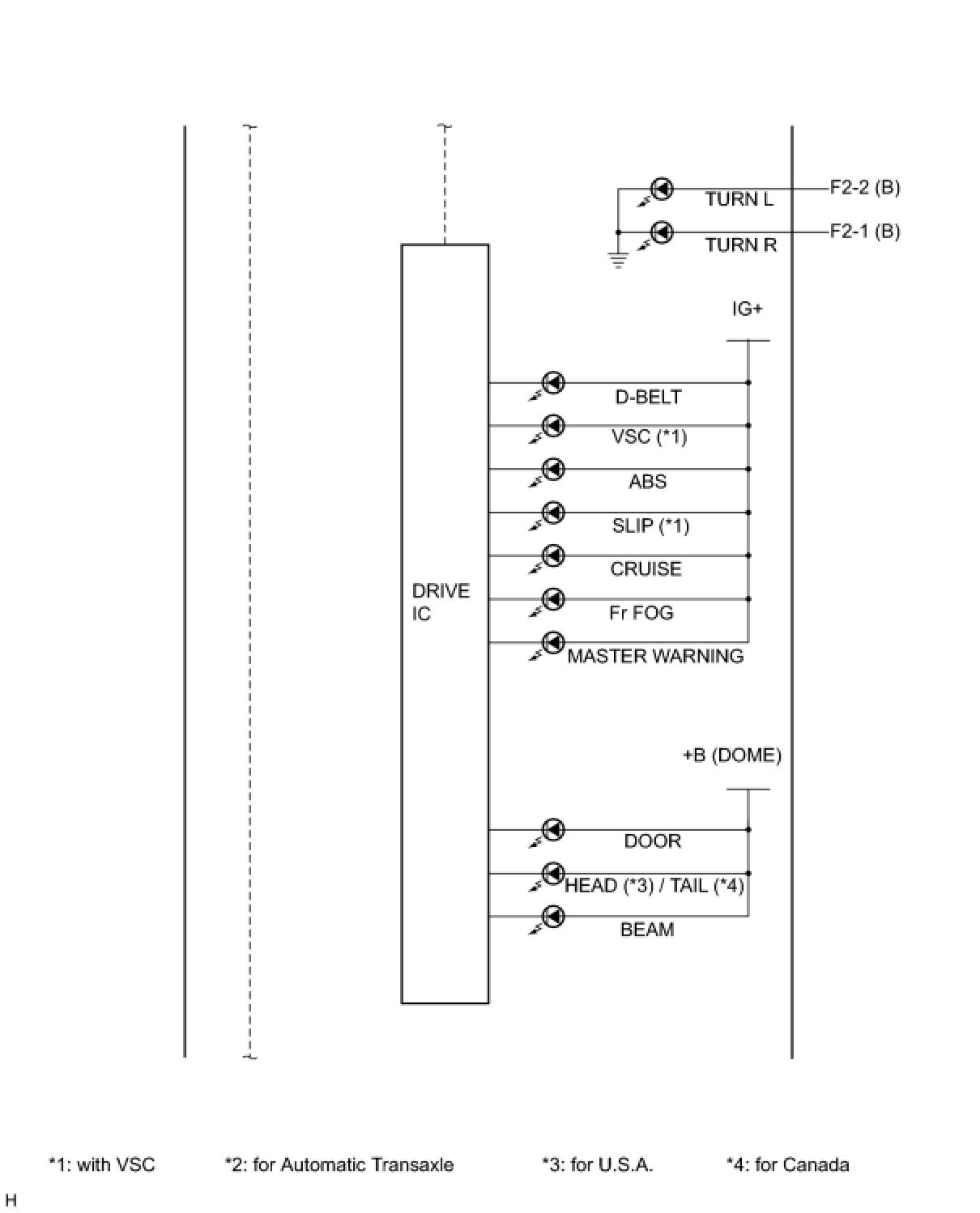

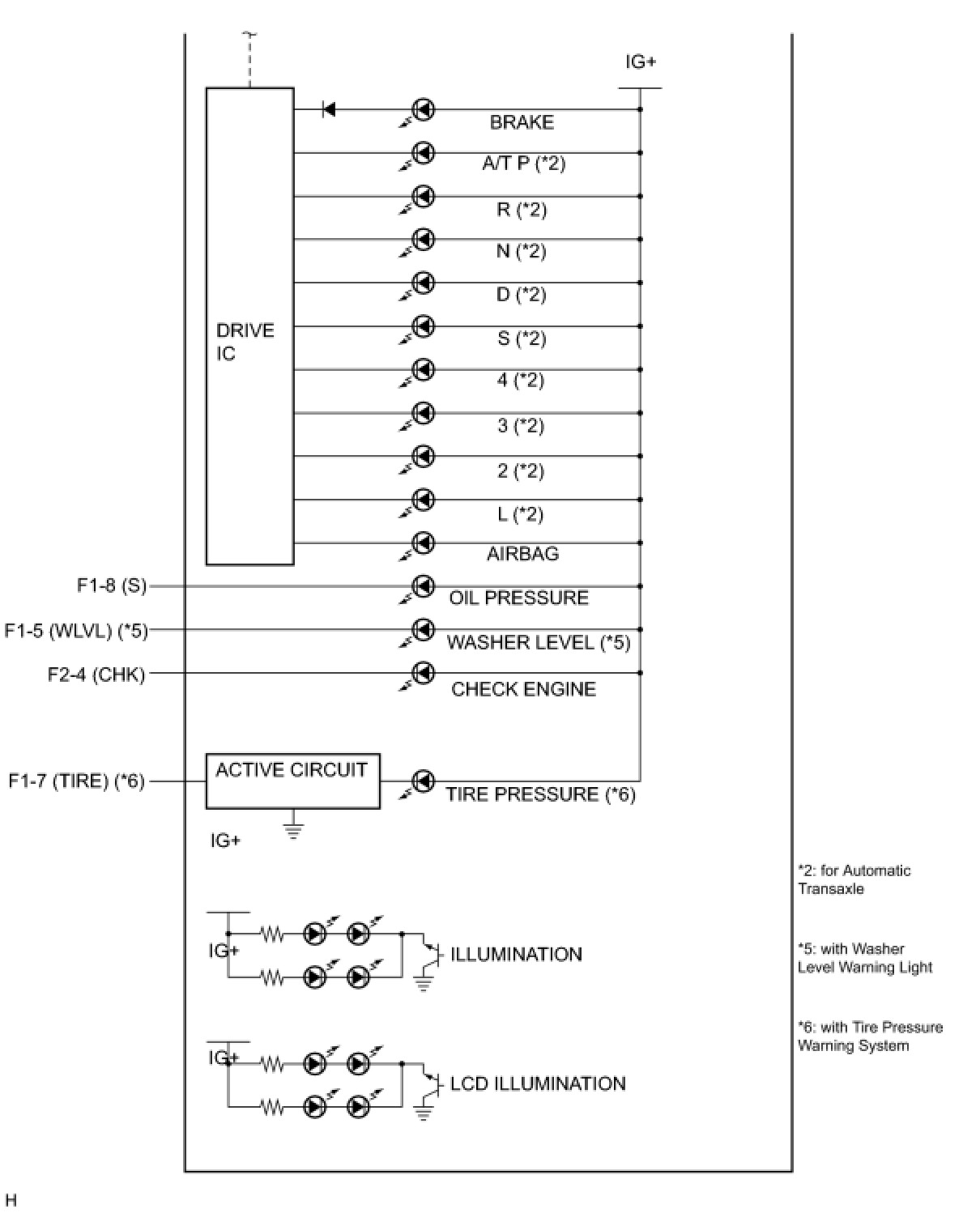

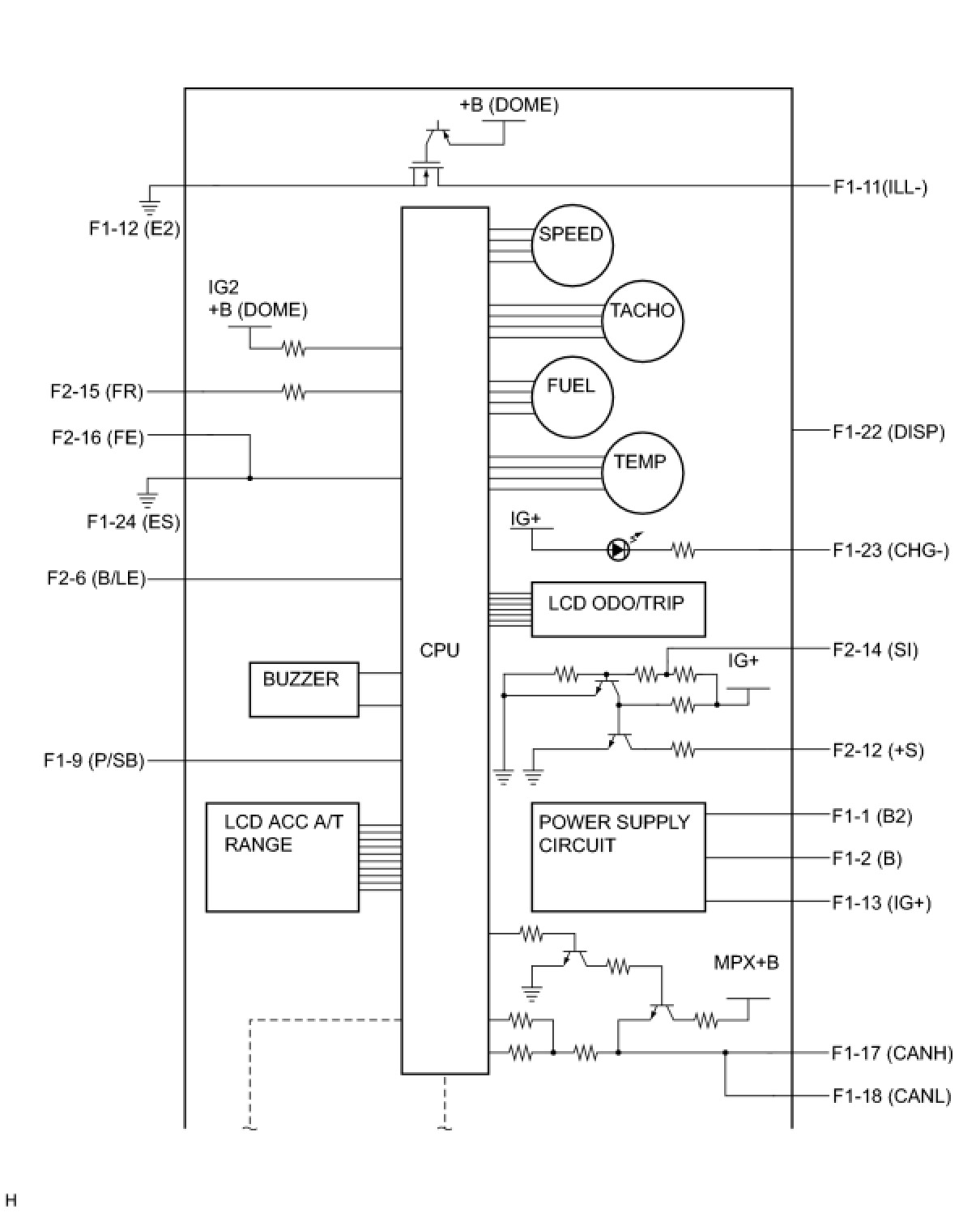

2. COMBINATION METER INNER CIRCUIT

















*1: without VSC
*2: with VSC
*3: with Washer Level Warning Light
*4: with Tire Pressure Warning System
