Installation

LIGHTING: HEADLIGHT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL HEADLIGHT ASSEMBLY
(a) Connect the connectors.

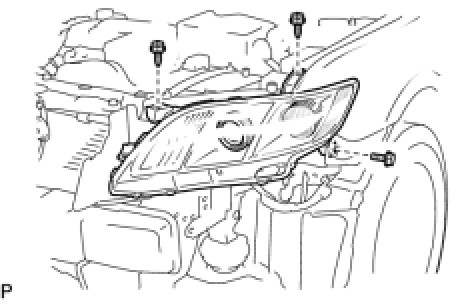

(b) Install the headlight assembly with the bolt and 2 screws.
Torque: 3.6 Nm (37 kgf-cm, 32in-lbf)
2. INSTALL FRONT BUMPER ASSEMBLY (w/o Fog Light) Installation
3. INSTALL FRONT BUMPER ASSEMBLY (w/ Fog Light) Installation
4. INSTALL COOL AIR INTAKE DUCT SEAL (for 2GR-FE) Installation
5. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT Adjustments
6. PREPARATION FOR HEADLIGHT AIMING (Using a tester) Adjustments
7. PREPARATION FOR HEADLIGHT AIMING (Using a screen) Adjustments
8. HEADLIGHT AIMING INSPECTION Adjustments
9. HEADLIGHT AIMING ADJUSTMENT Adjustments
10. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT (w/ Fog Light) Adjustments
11. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments
12. FOG LIGHT AIMING INSPECTION (w/ Fog Light) Adjustments
13. FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light) Adjustments
