HORN: HIGH PITCHED HORN: INSTALLATION

INSTALLATION

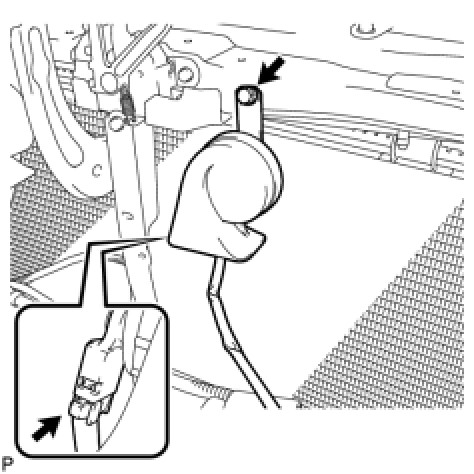

1. INSTALL HIGH PITCHED HORN ASSEMBLY





(a) Install the high pitched horn assembly with the bolt.
Torque: 20 Nm (204 kgf-cm, 15ft-lbf)
(b) Connect the connector.
2. INSTALL FRONT BUMPER ASSEMBLY Installation
3. INSTALL COOL AIR INTAKE DUCT SEAL (for 2GR-FE) Installation
4. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT (w/ Fog Light) Adjustments
5. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments
6. FOG LIGHT AIMING INSPECTION (w/ Fog Light) Adjustments
7. FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light) Adjustments
