LIGHTING: LICENSE PLATE LIGHT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL LICENSE PLATE LIGHT ASSEMBLY

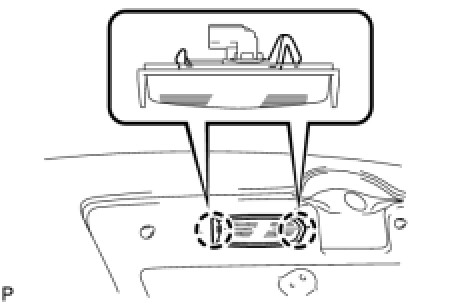

(a) Engage the 2 claws to install the license plate light assembly.
(b) Connect the connector.
2. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
3. INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
4. INSTALL LUGGAGE DOOR OPENING SWITCH ASSEMBLY (w/ Smart Key System) Installation
5. INSTALL LUGGAGE COMPARTMENT DOOR COVER
