Installation

LIGHTING: REAR COMBINATION LIGHT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL REAR LIGHT ASSEMBLY





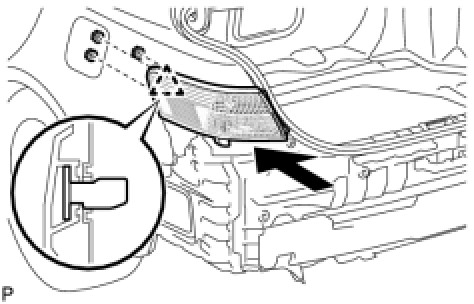

(a) Engage the pin and install the rear light assembly.
(b) Install the 3 nuts.
Torque: 3.6 Nm (37 kgf-cm, 32in-lbf)

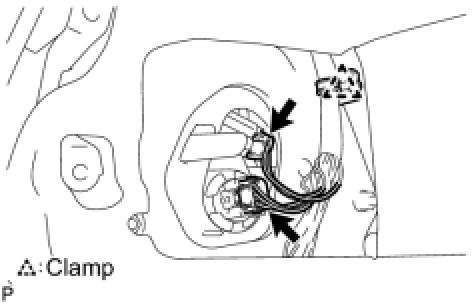

(c) Connect the connector and clamp.
2. INSTALL LUGGAGE COMPARTMENT DOOR COVER
3. INSTALL REAR COMBINATION LIGHT ASSEMBLY

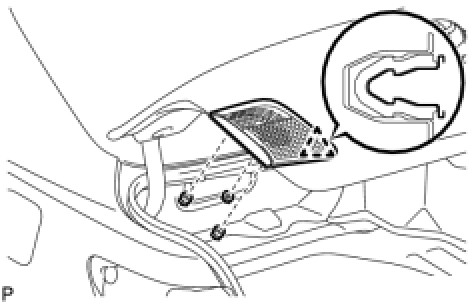

(a) Engage the clip and install the rear combination light assembly.
(b) Install the 3 nuts.
Torque: 3.6 Nm (37 kgf-cm, 32in-lbf)

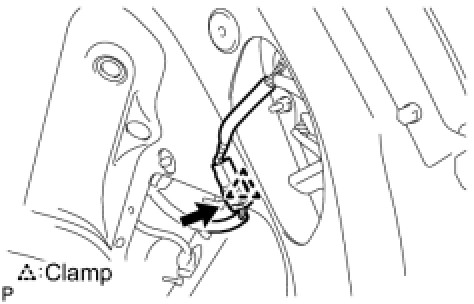

(c) Connect the 2 connectors and clamp.
4. INSTALL REAR FLOOR FINISH PLATE Installation
5. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Installation
6. INSTALL LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY Installation
7. INSTALL SPARE WHEEL COVER ASSEMBLY
8. INSTALL SPARE WHEEL COVER CLAMP
9. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
10. INSTALL REAR BUMPER ASSEMBLY (w/o Rear Lower Spoiler) Installation
11. INSTALL REAR BUMPER ASSEMBLY (w/ Rear Lower Spoiler) Installation
12. INSTALL REAR FLOOR BOARD (w/ Rear Lower Spoiler) Installation
