Symptom Related Diagnostic Procedures
LIGHTING: LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE
PROBLEM SYMPTOMS TABLE
1. Headlight system:
2. Daytime running light system:
3. Taillight system:

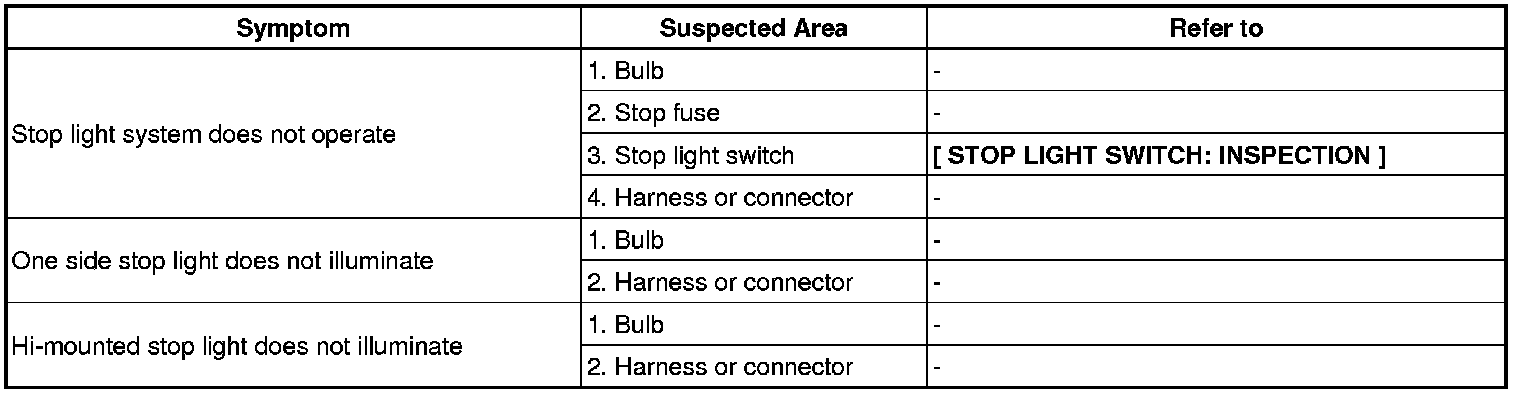

4. Stop light system:
5. Front fog light system:
6. Turn signal and hazard warning system:

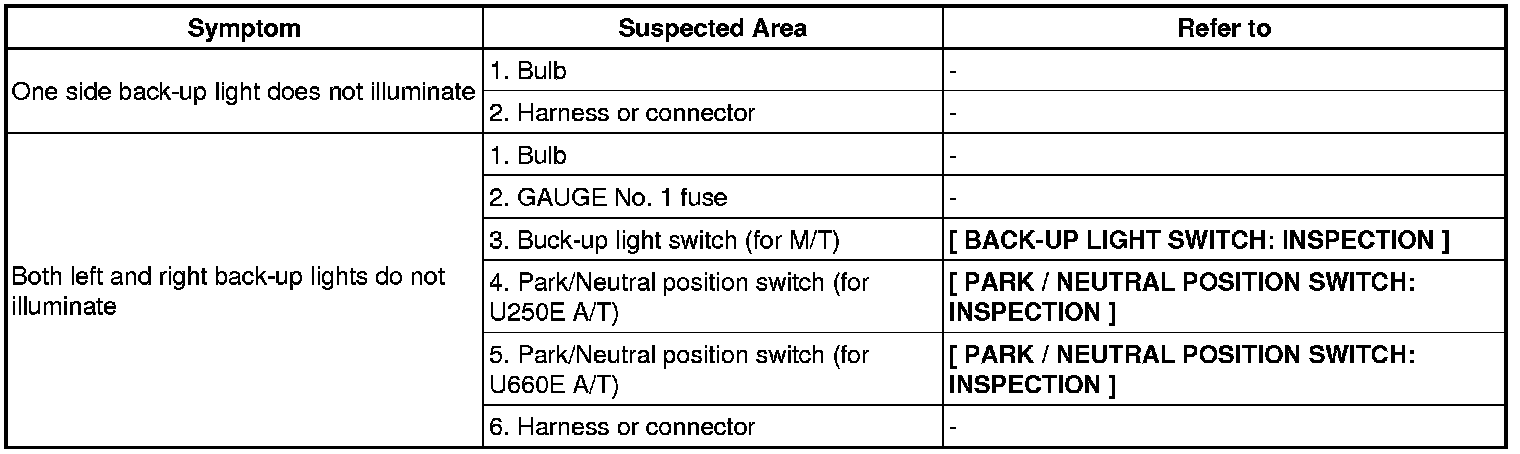

7. Back-up light system:
8. Illuminated entry system:

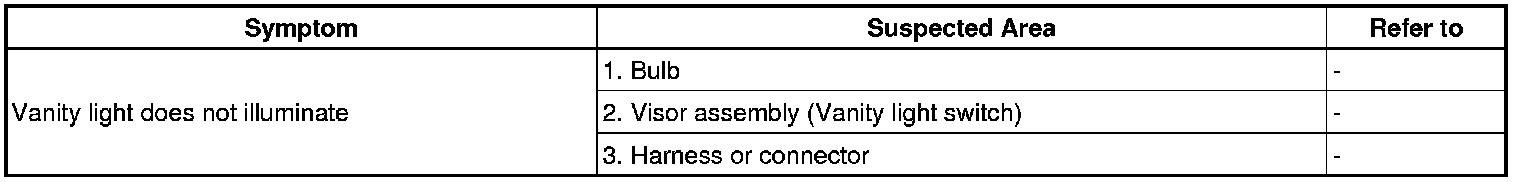

9. Vanity light system:

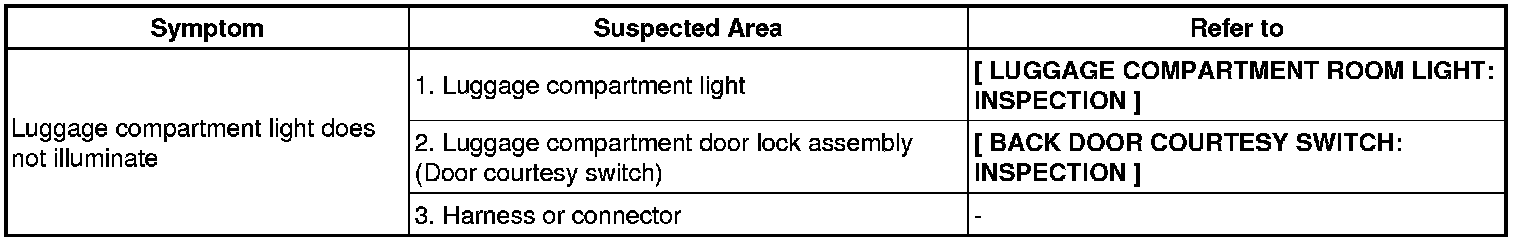

10. Luggage compartment light system:

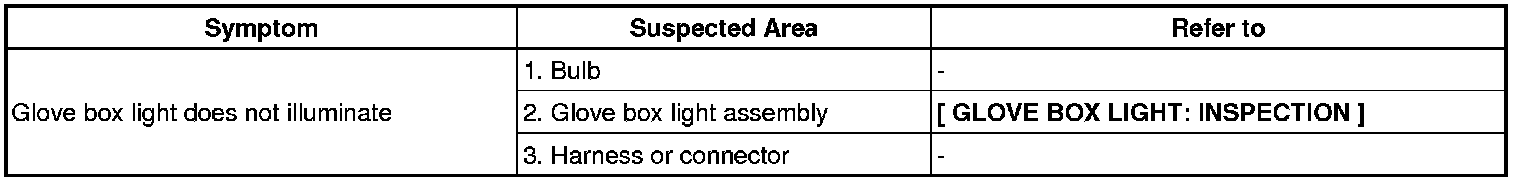

11. Glove box light system:

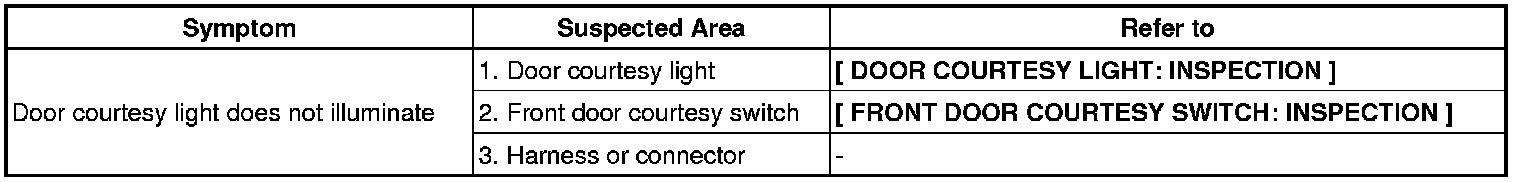

12. Door courtesy light system:

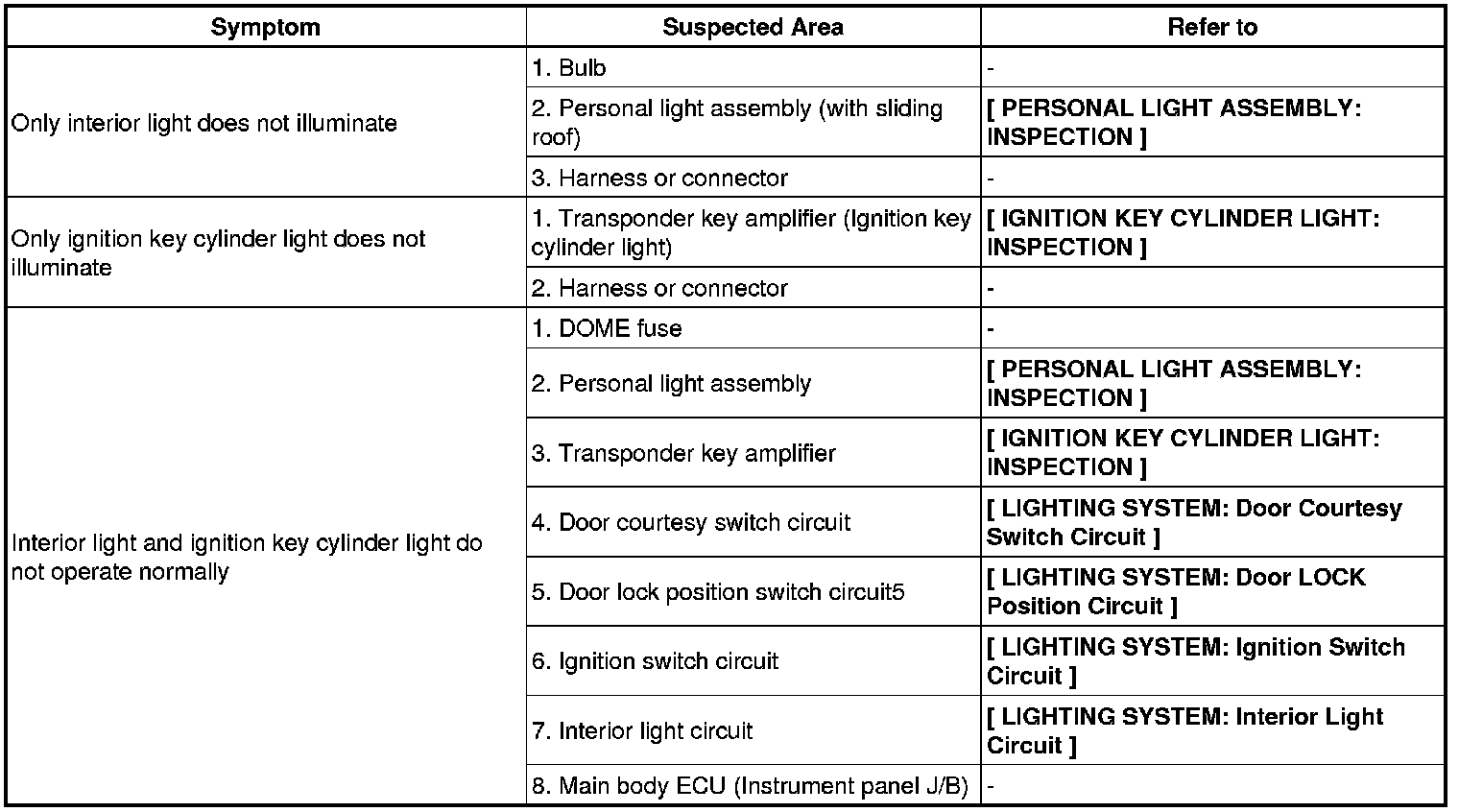

13. Personal light system:
14. Automatic light control system:

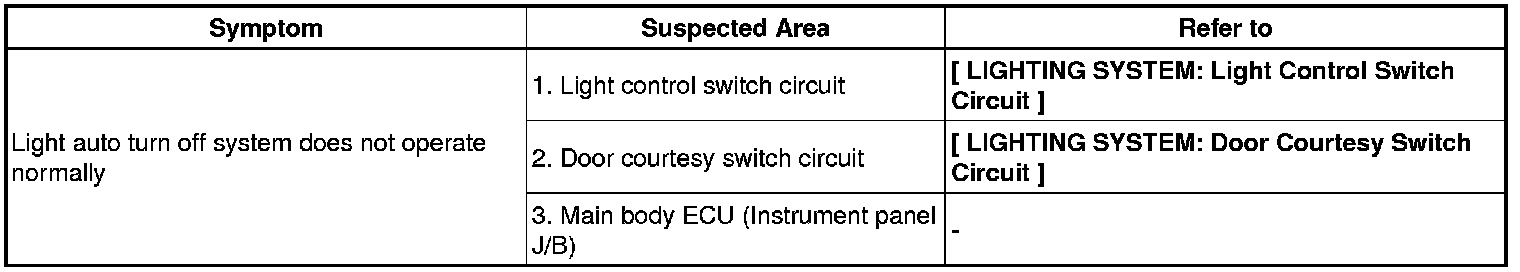

15. Light auto turn off system:

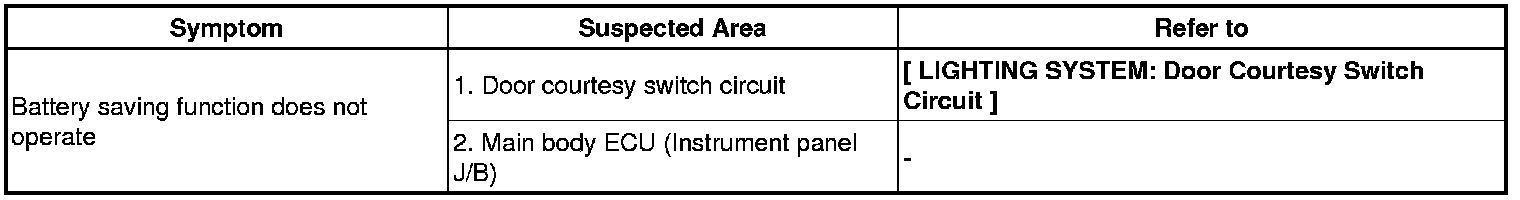

16. Battery saving system:
