Home
>>
Toyota
>>
2009
>>
Camry L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Ground Locations
>>

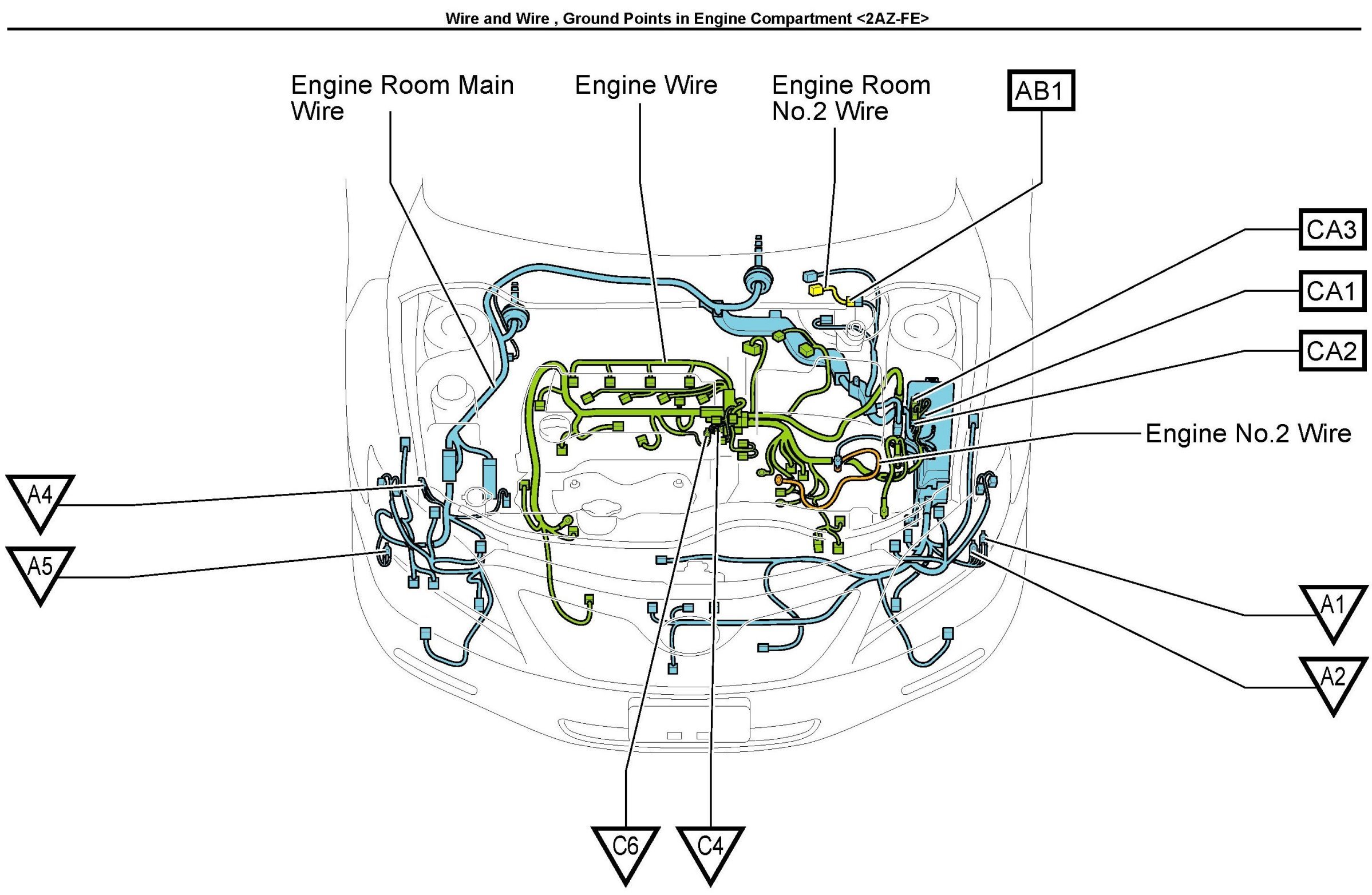

Wire and Wire, Ground Points In Engine Compartment
Wire and Wire, Ground Points In Engine Compartment

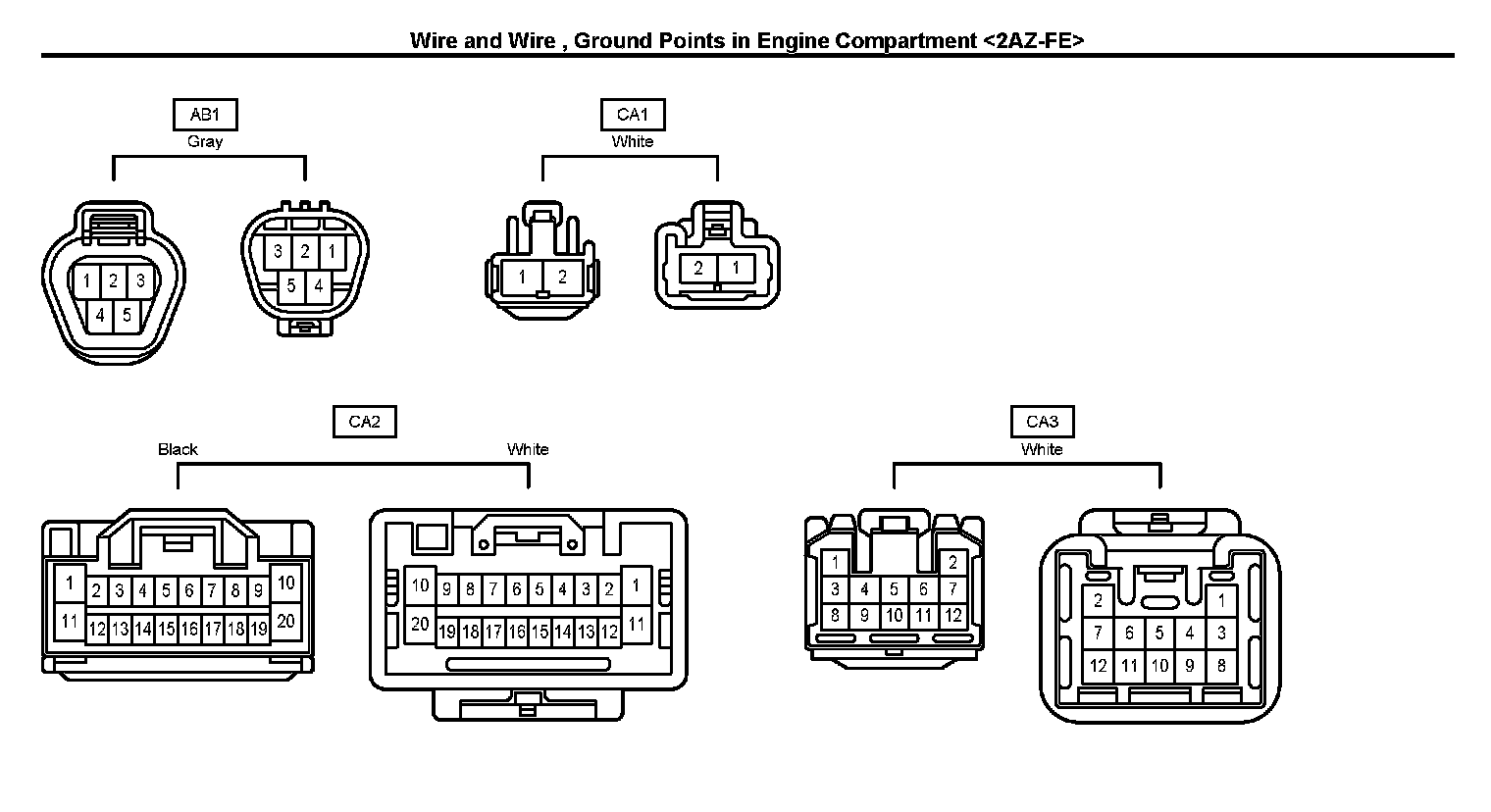

A1-C6, AB1-CA3:
AB1-CA3:
