Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Camry L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Variable Valve Timing Actuator
>>
Service and Repair
>>
Components
Components

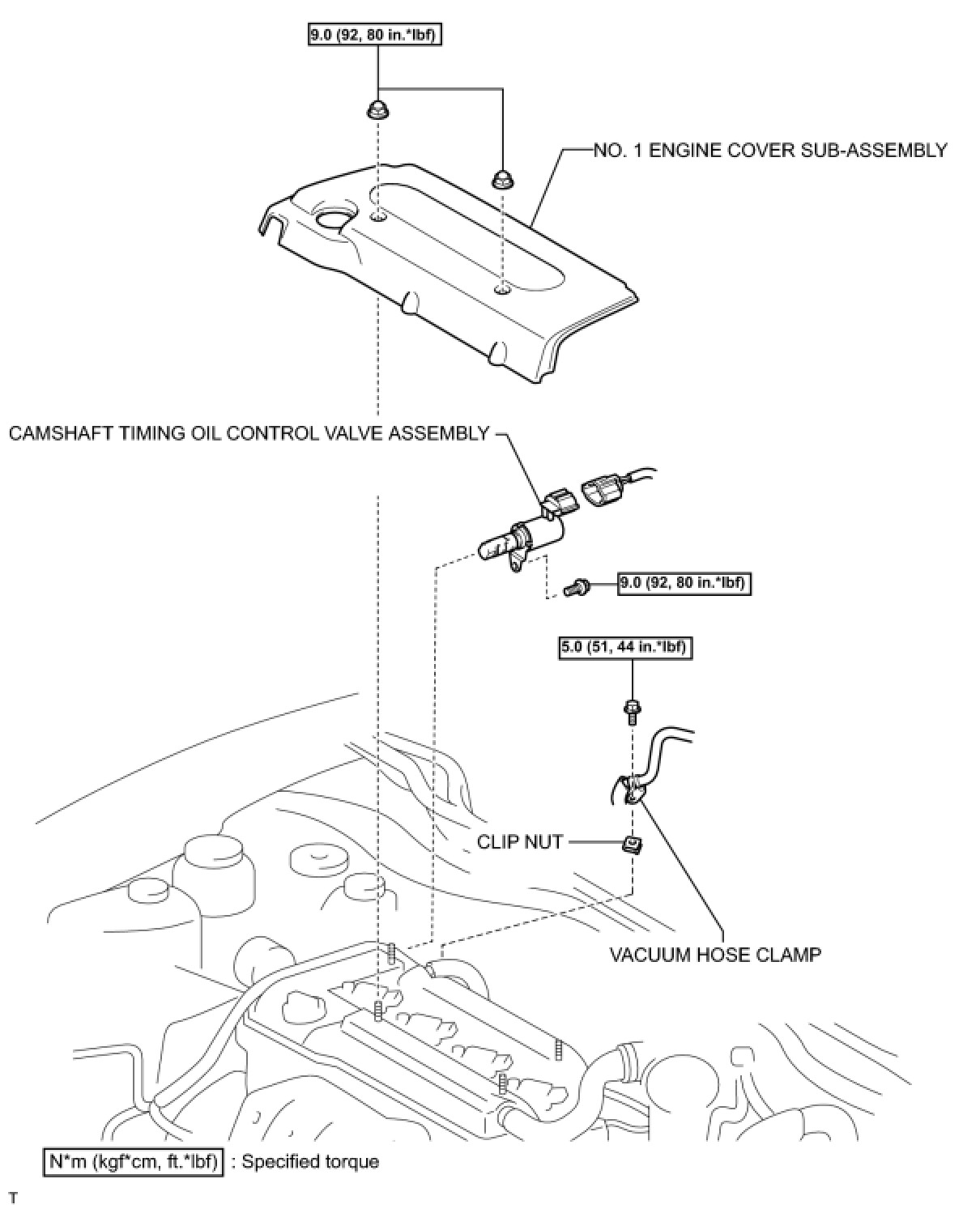

2AZ-FE ENGINE CONTROL SYSTEM: CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY: COMPONENTS
COMPONENTS
ILLUSTRATION
