Emission Control Systems: Description and Operation
2AZ-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM

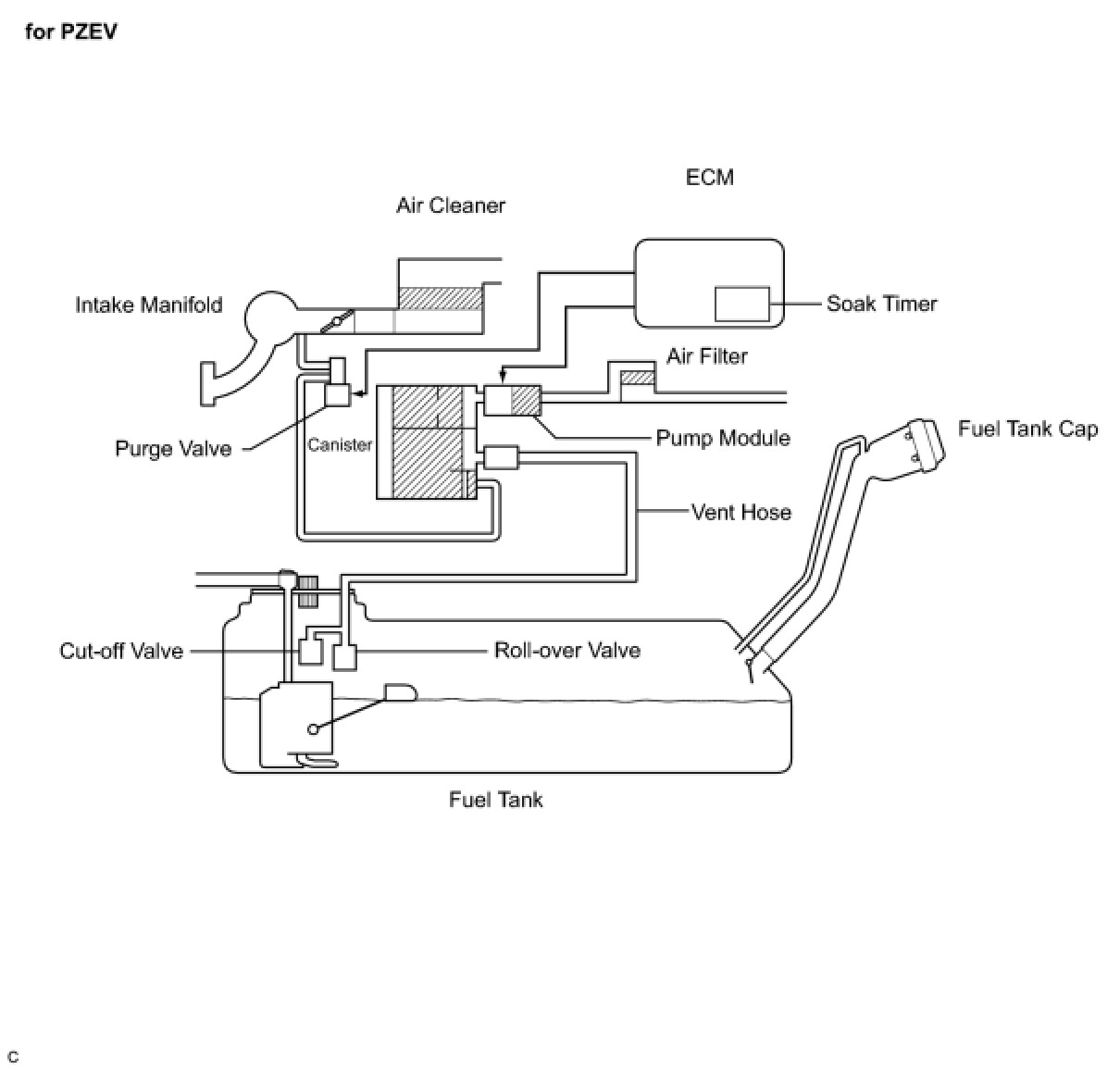

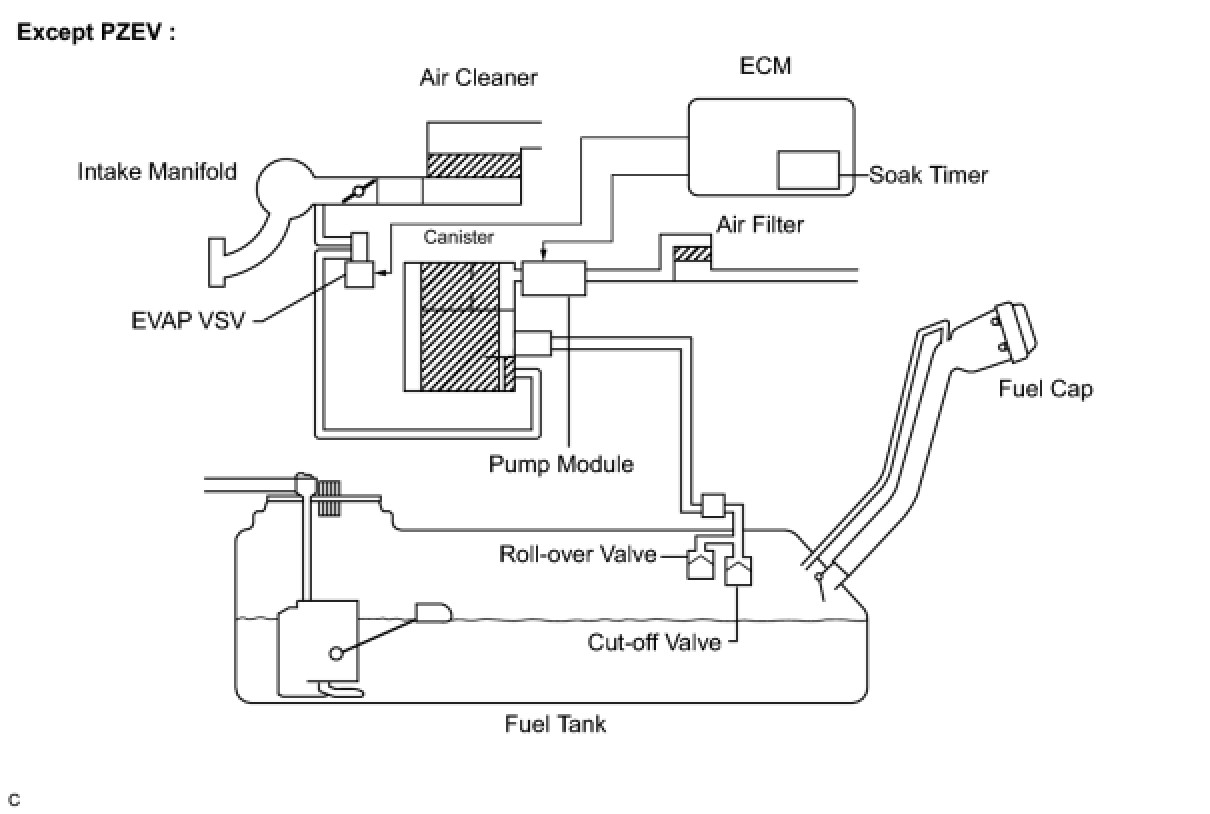

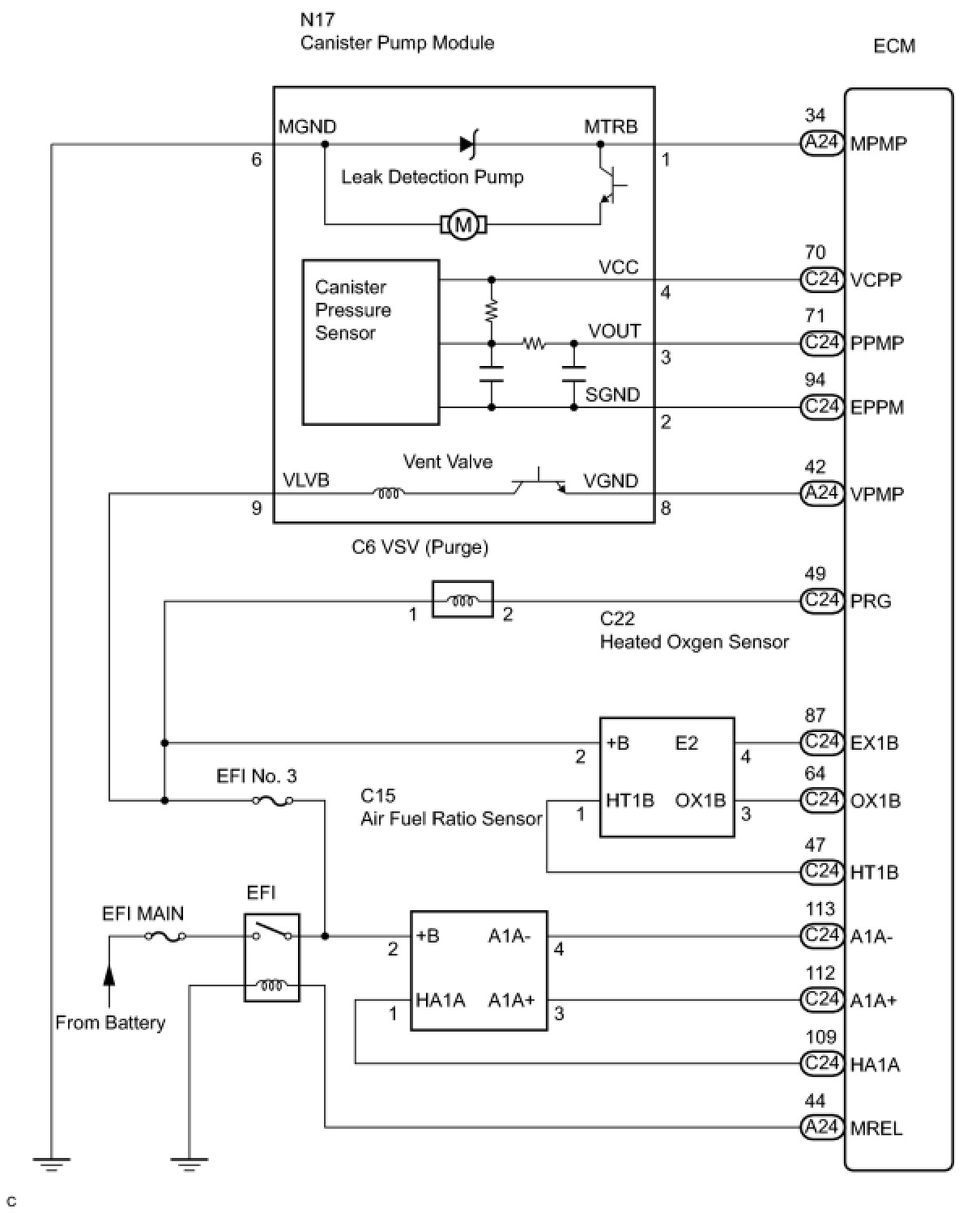

SYSTEM DIAGRAM
