2AZ-FE EMISSION CONTROL: PURGE VALVE: INSTALLATION

INSTALLATION

1. REMOVE VACUUM SWITCHING VALVE

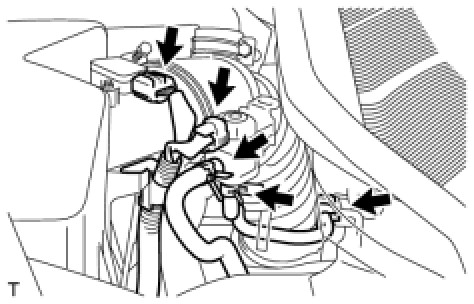

(a) Install the vacuum switching valve onto the air cleaner hose.





(b) Connect the 2 purge line hoses to the vacuum switching valve.
(c) Connect the vacuum switching valve connector.
