2AZ-FE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL ROD: INSTALLATION

INSTALLATION

1. INSTALL ACCELERATOR PEDAL ROD
NOTICE:
- Avoid physical shock to the accelerator pedal assembly.
- Do not disassemble the accelerator pedal assembly.

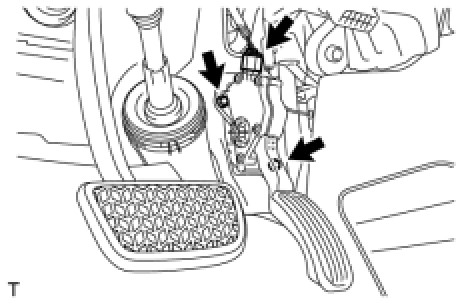

(a) Install the accelerator pedal rod with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48in-lbf)
(b) Connect the accelerator pedal position sensor connector.
