2AZ-FE INTAKE: INTAKE AIR CONTROL VALVE: REMOVAL

REMOVAL

1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY
HINT: Removal

2. REMOVE INTAKE AIR CONTROL VALVE

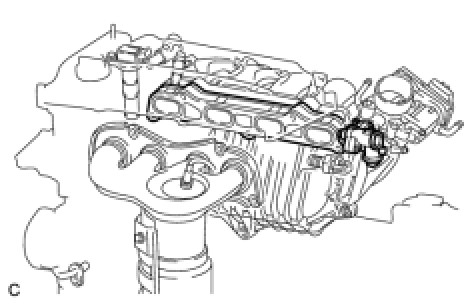

(a) Remove the intake air control valve.
