Ignition System: Description and Operation

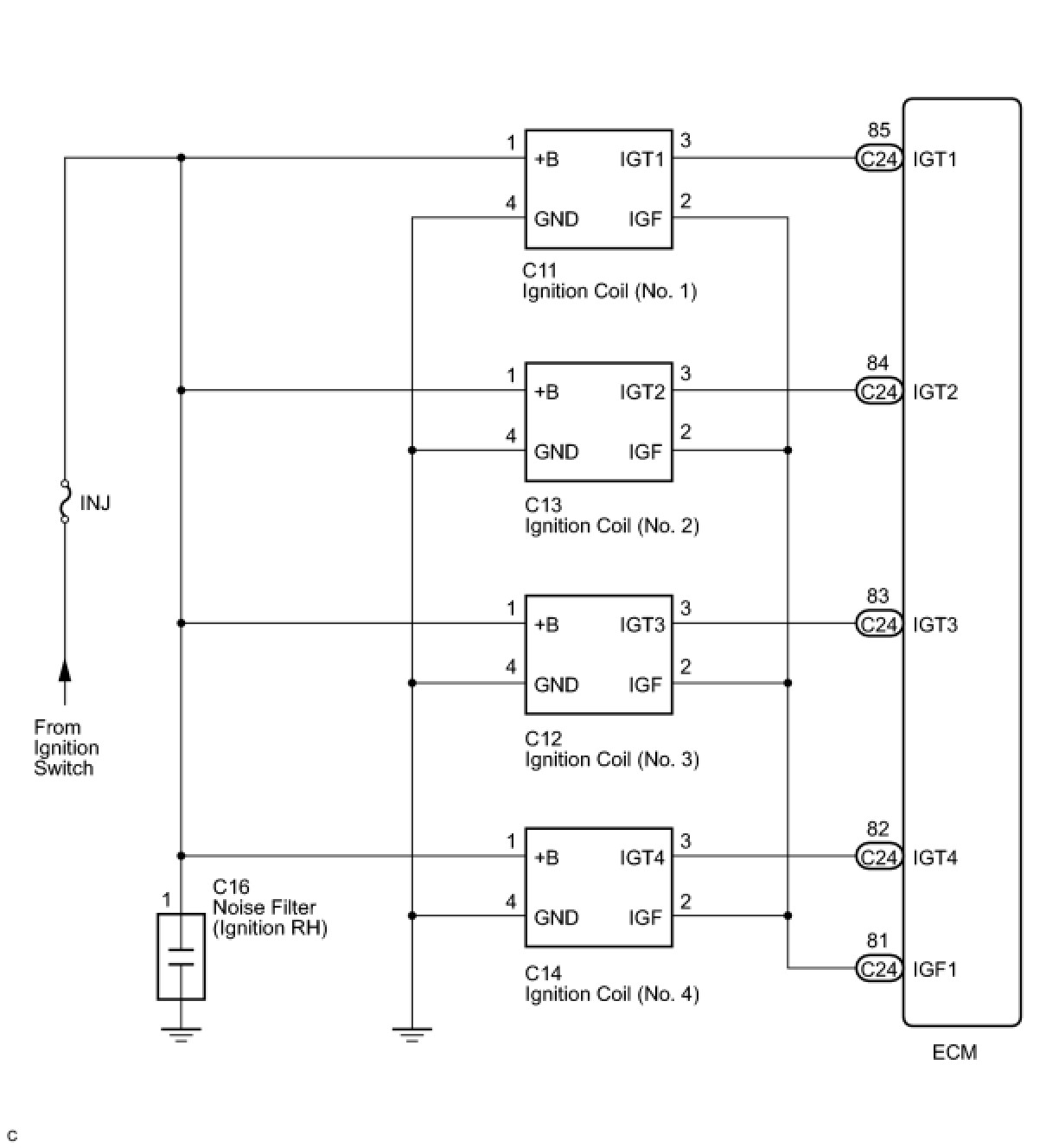

2AZ-FE IGNITION: IGNITION SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
