2AZ-FE IGNITION: IGNITION COIL: INSTALLATION

INSTALLATION

1. INSTALL IGNITION COIL ASSEMBLY

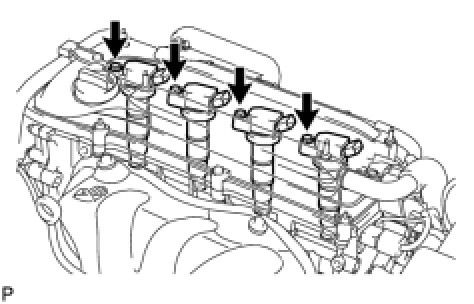

(a) Install the 4 ignition coils with the 4 bolts.
Torque: 9.0 Nm (92 kgf-cm, 80in-lbf)
(b) Connect the 4 ignition coil connectors.
2. INSTALL NO. 1 ENGINE COVER Installation
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
