Powertrain Management: Locations

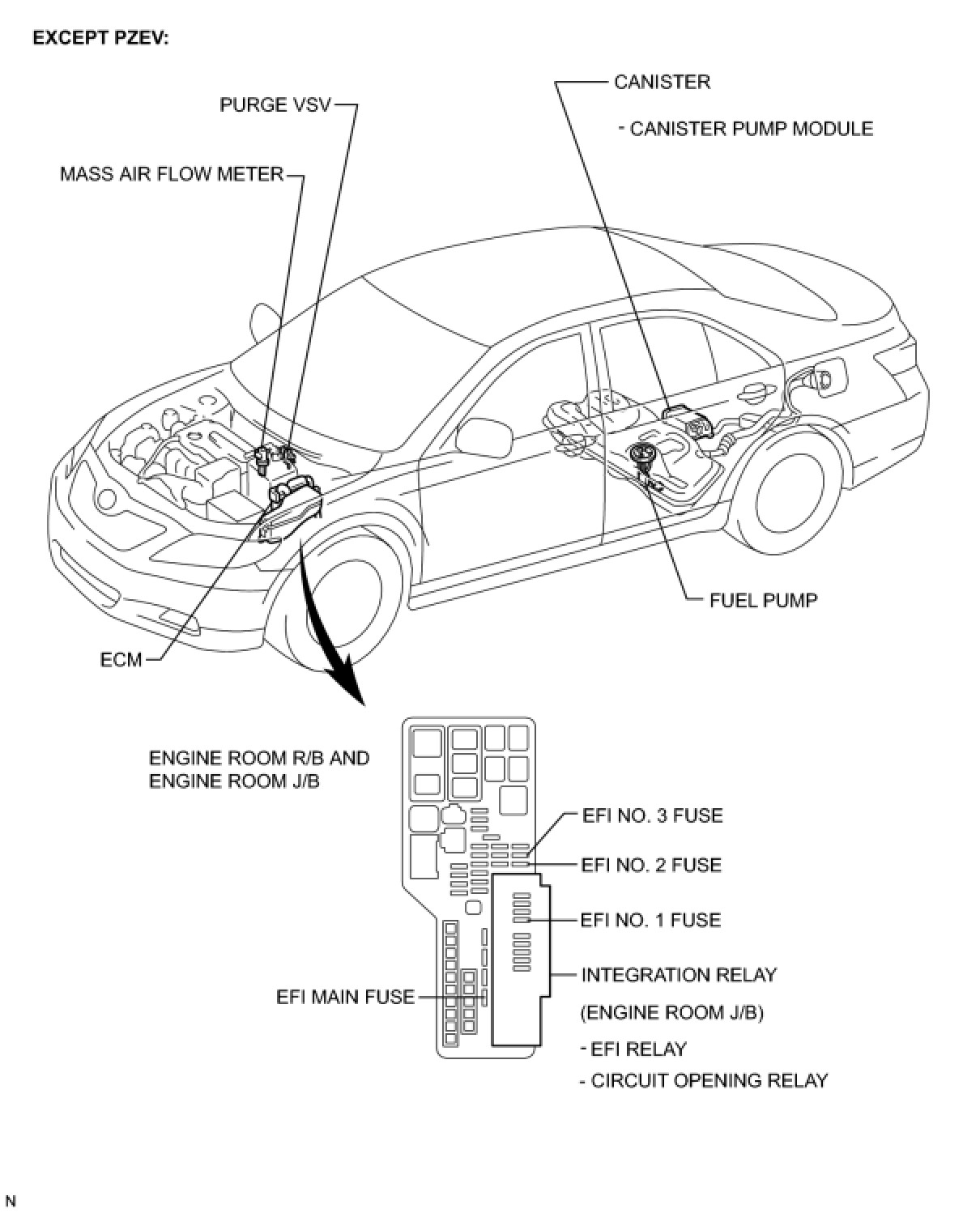

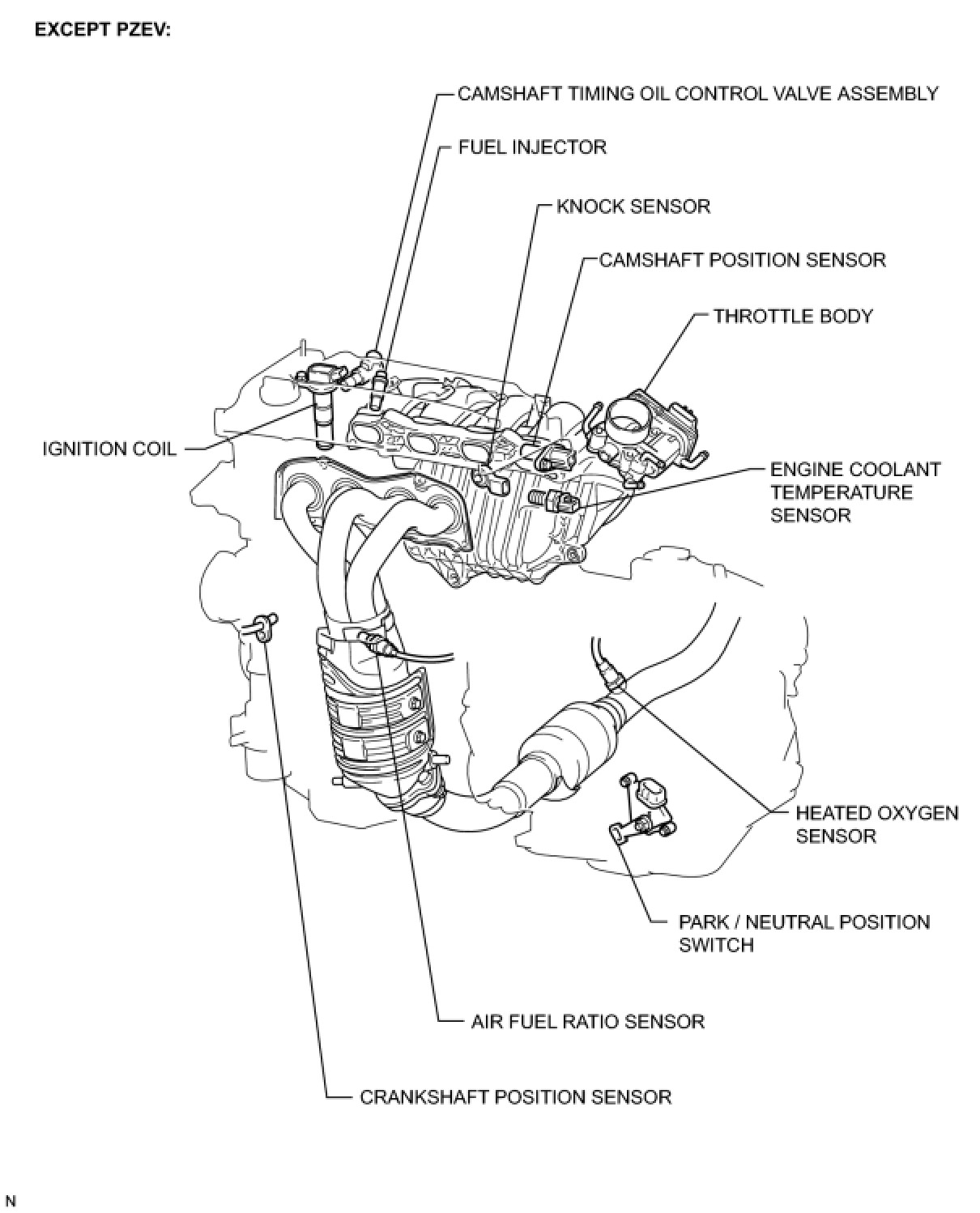

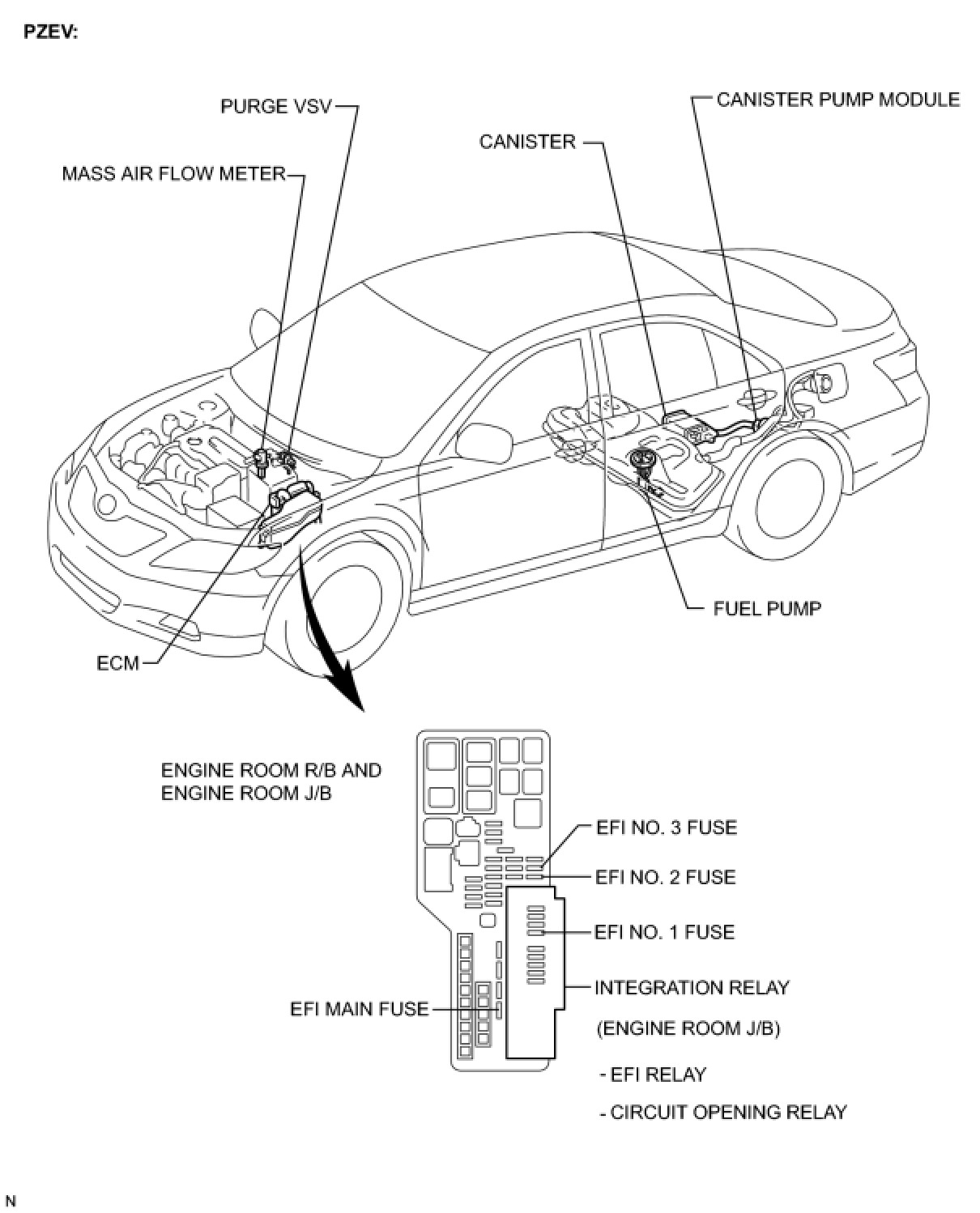

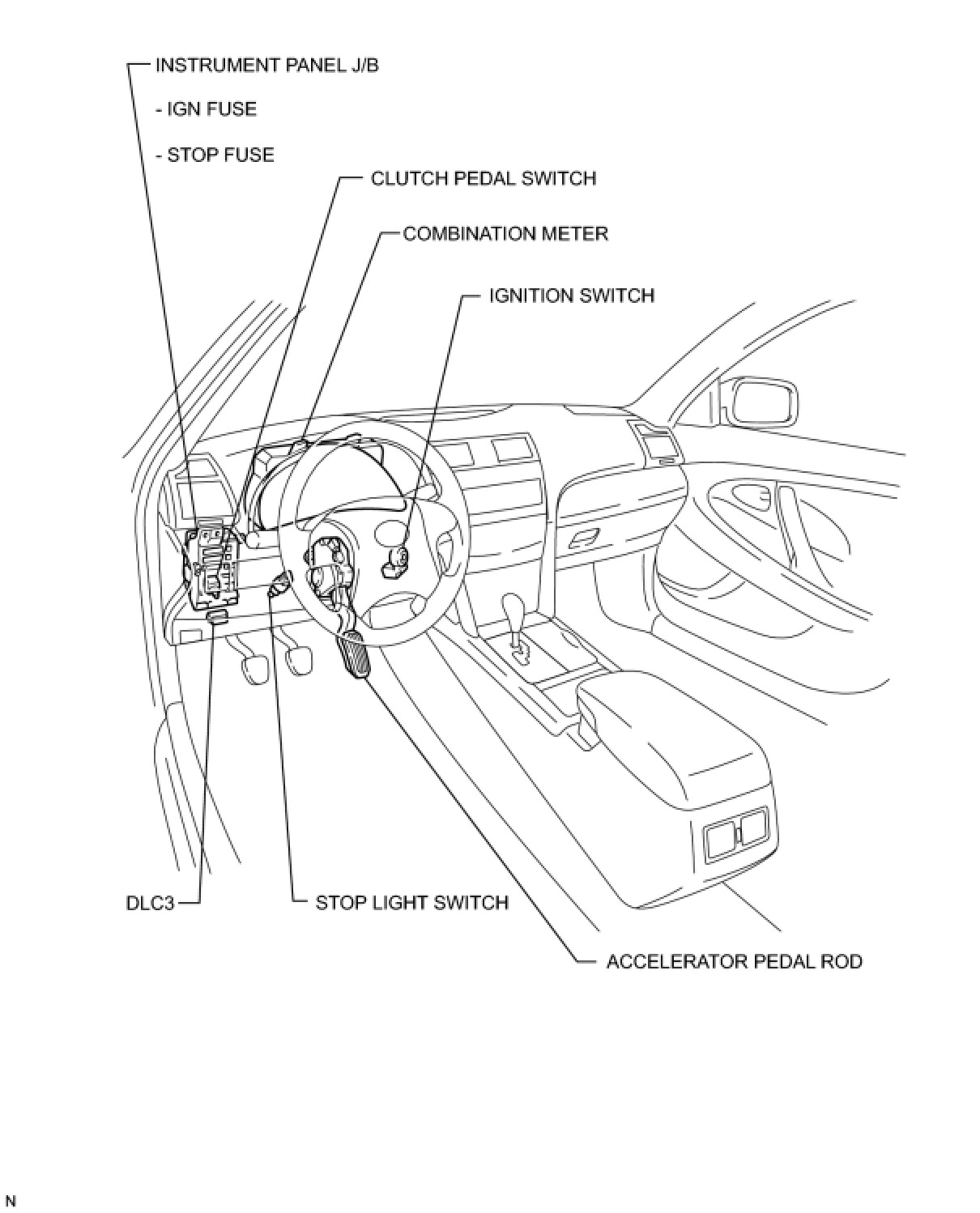

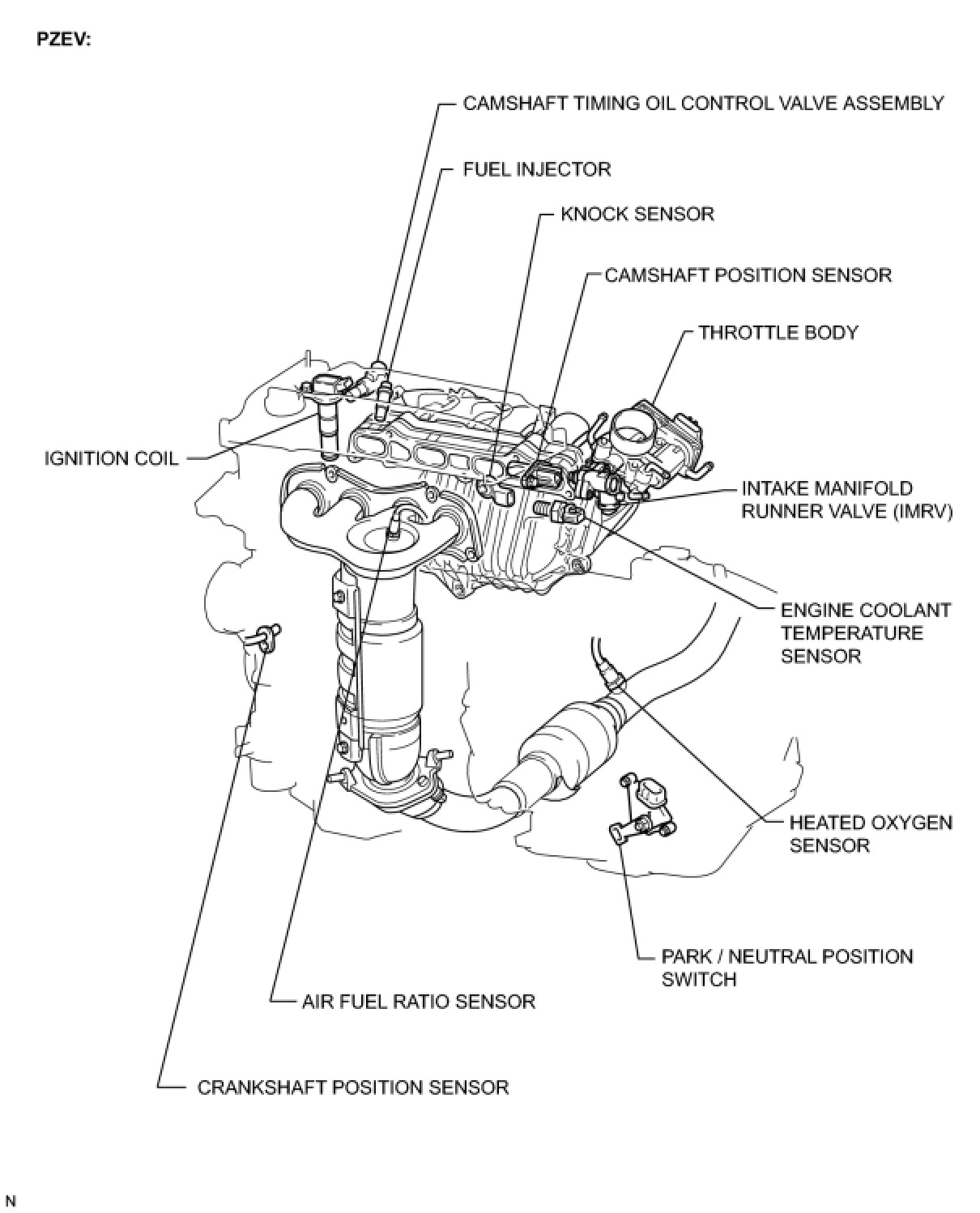

2AZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
