Tail Lamp Relay: Testing and Inspection

LIGHTING: TAILLIGHT RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT TAILLIGHT RELAY





(a) Remove the taillight relay from the instrument panel J/B assembly.

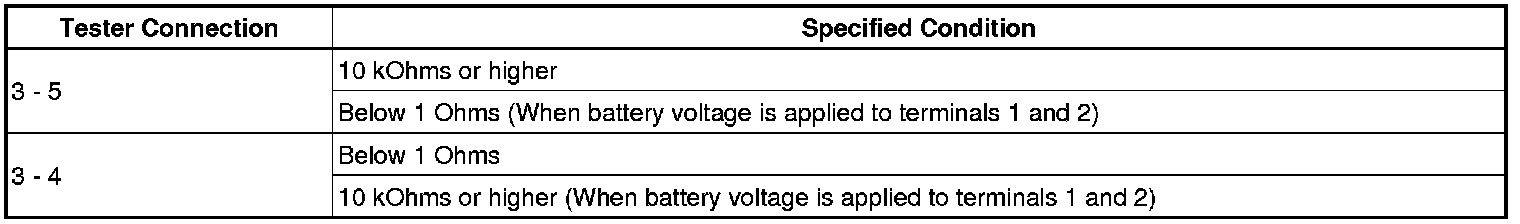

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





If the result is not as specified, replace the taillight relay.
