Circuit Opening Relay








2AZ-FE ENGINE CONTROL SYSTEM: CIRCUIT OPENING RELAY: INSPECTION

INSPECTION

1. INSPECT CIRCUIT OPENING RELAY





(a) Using an ohmmeter, measure the resistance according to the value(s) in the table below.

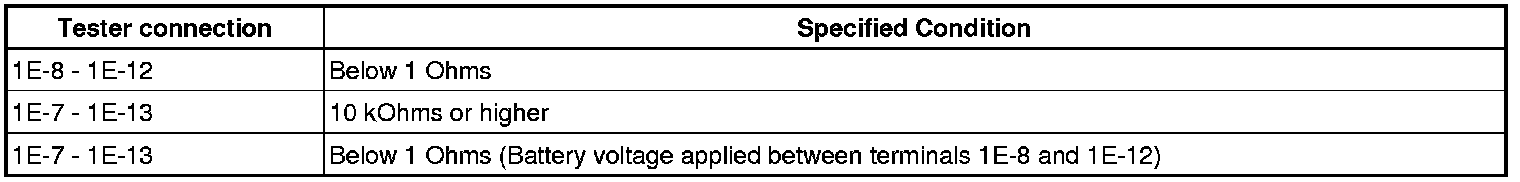

Standard resistance:
