Timing Chain Tensioner

NO. 1 CHAIN TENSIONER ASSEMBLY

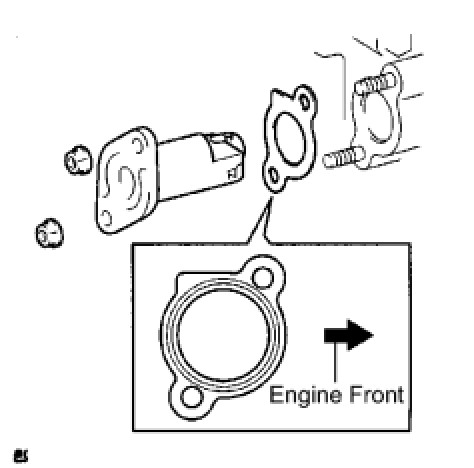

Install a new gasket and the chain tensioner with the 2 nuts.
Torque 9.0 Nm (92 kgf-cm, 80 in-lbf)

NO. 2 CHAIN SUB-ASSEMBLY

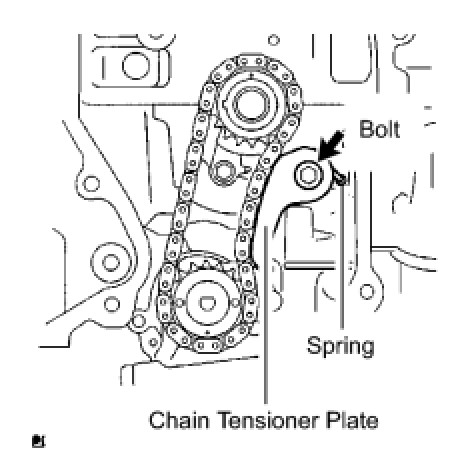

Insert the damper spring into the adjusting hole, and then install the chain tensioner plate with the bolt.
Torque 12 Nm (122 kgf-cm, 9 ft-lbf)
