Home >> Toyota >> 2009 >> Camry L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Specifications >> Pressure, Vacuum and Temperature Specifications >> Engine >> System Specifications

System Specifications

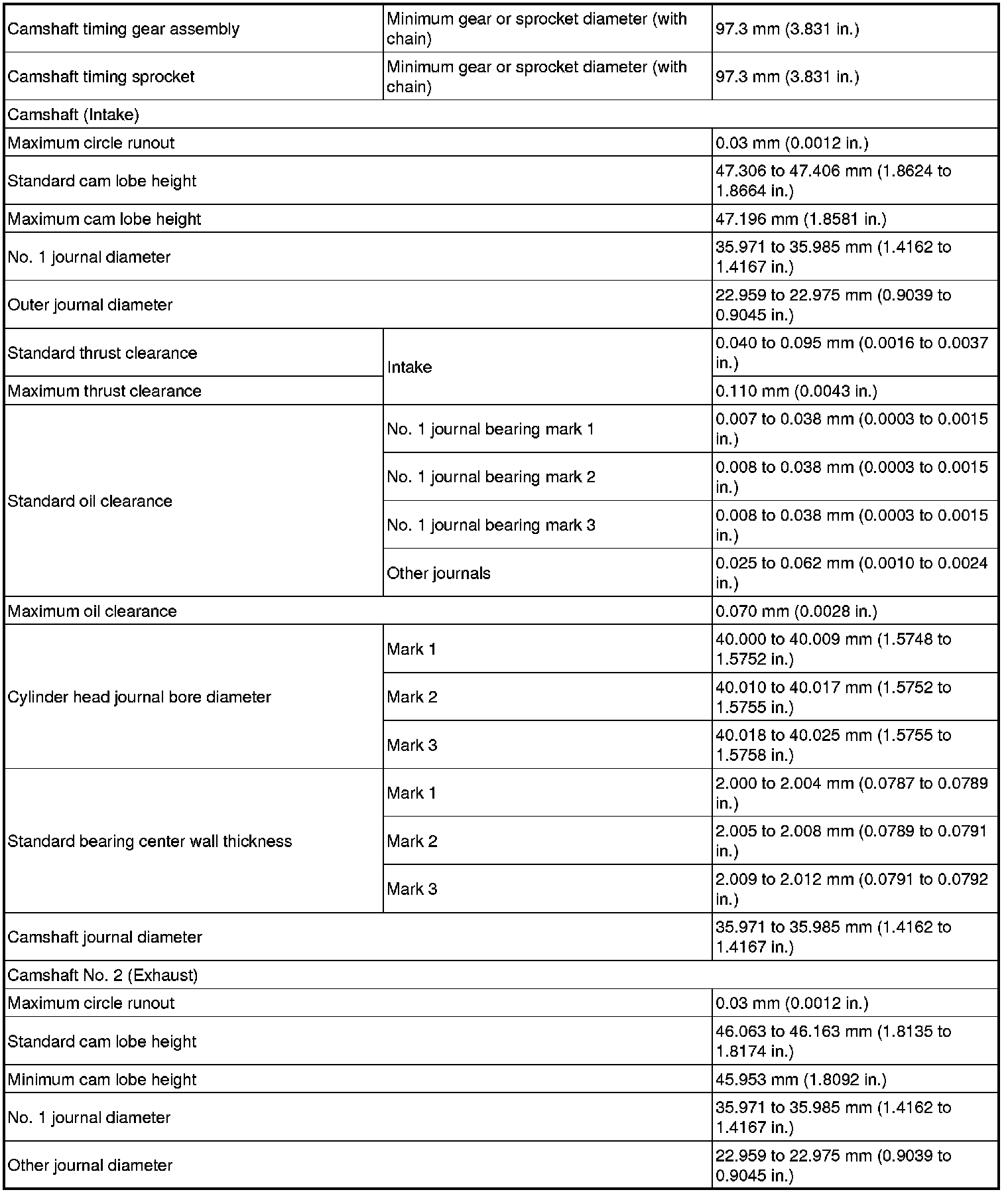

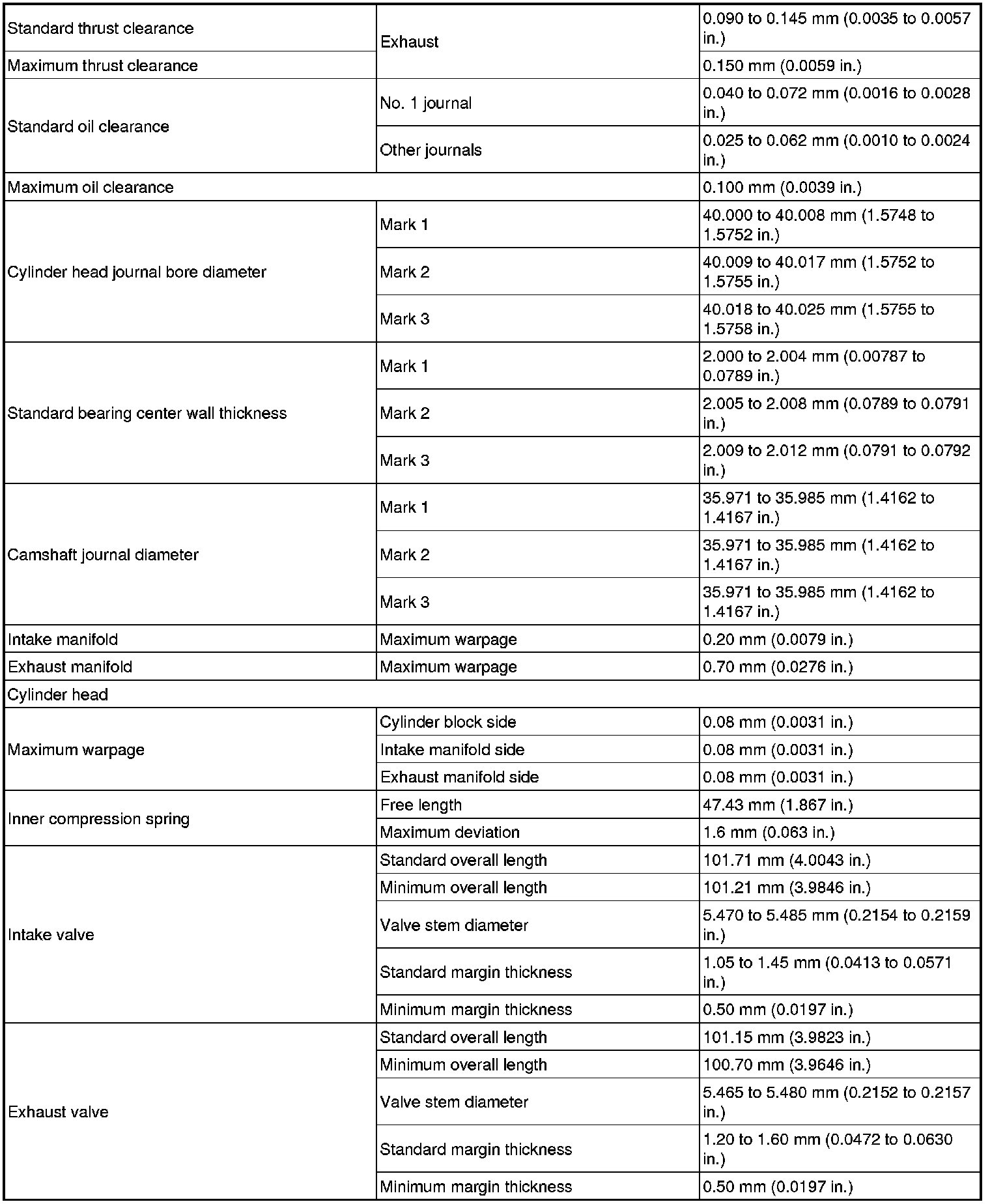

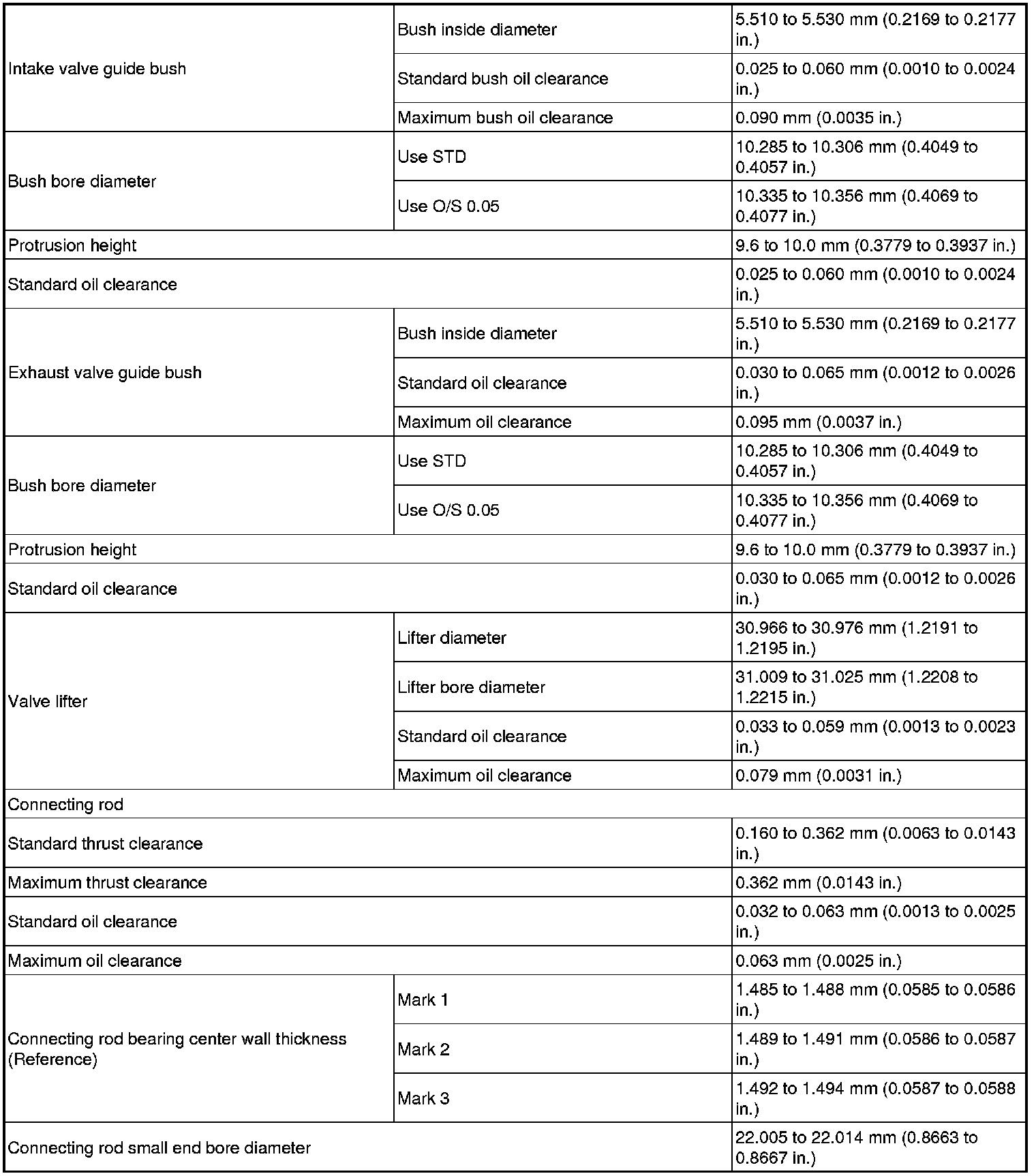

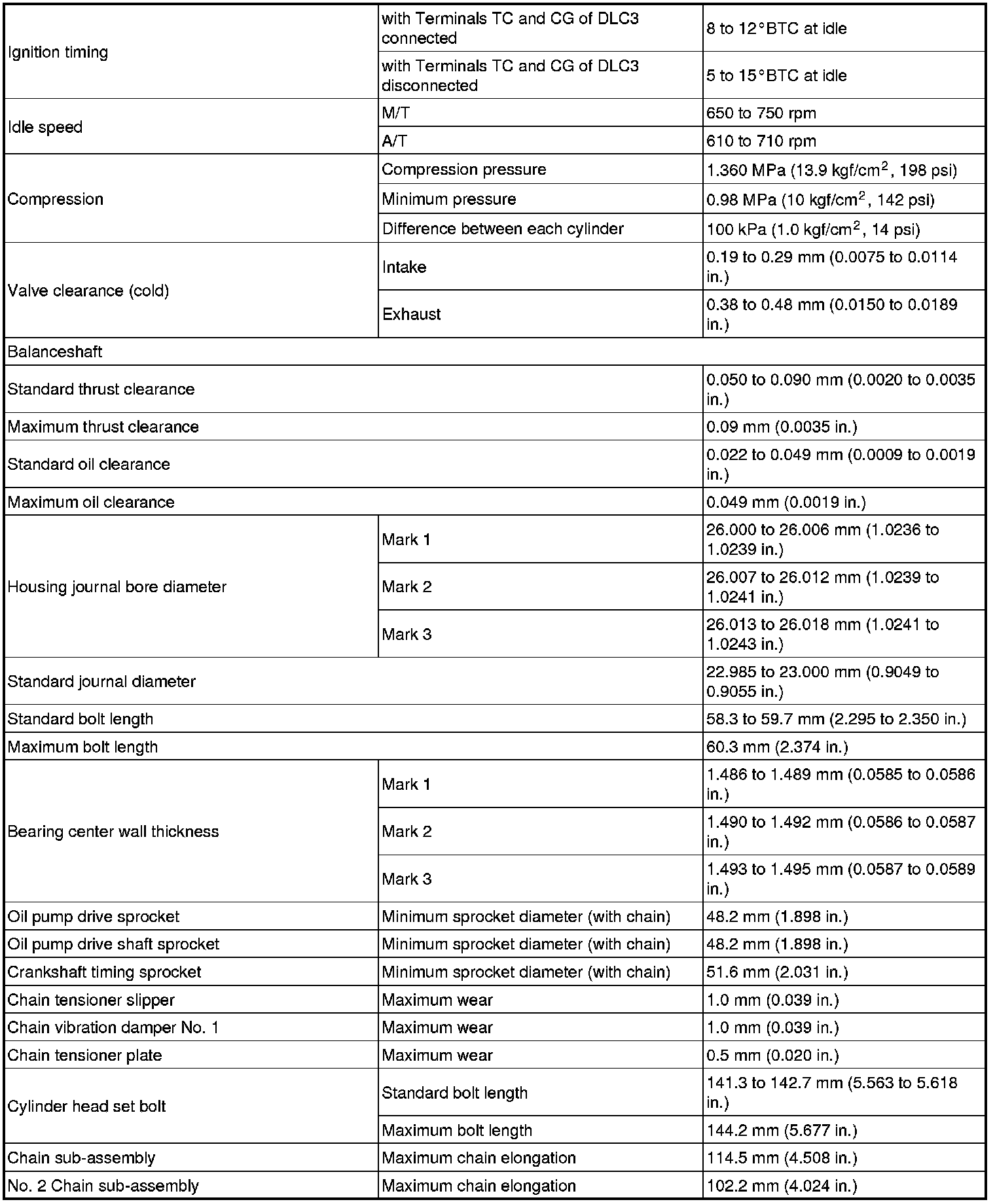

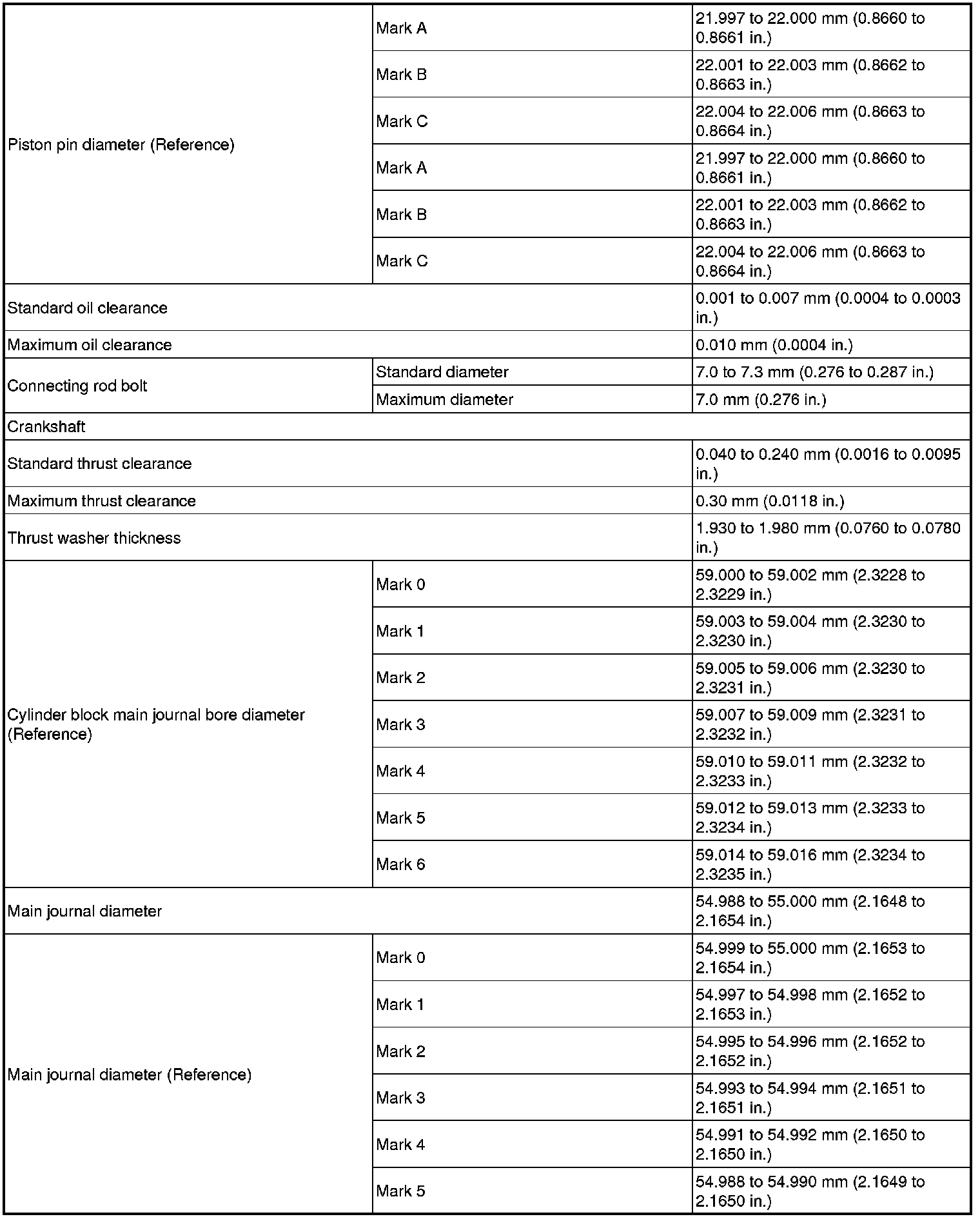

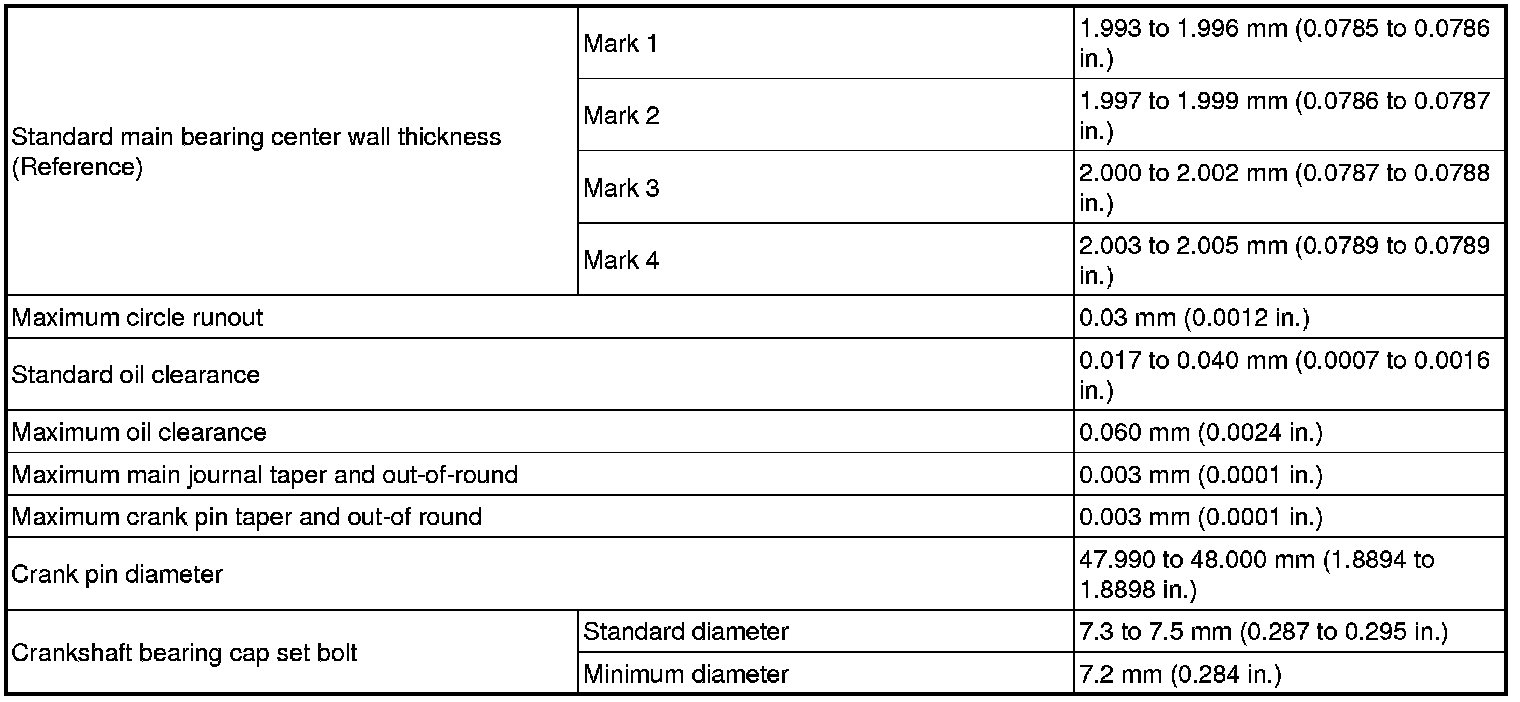

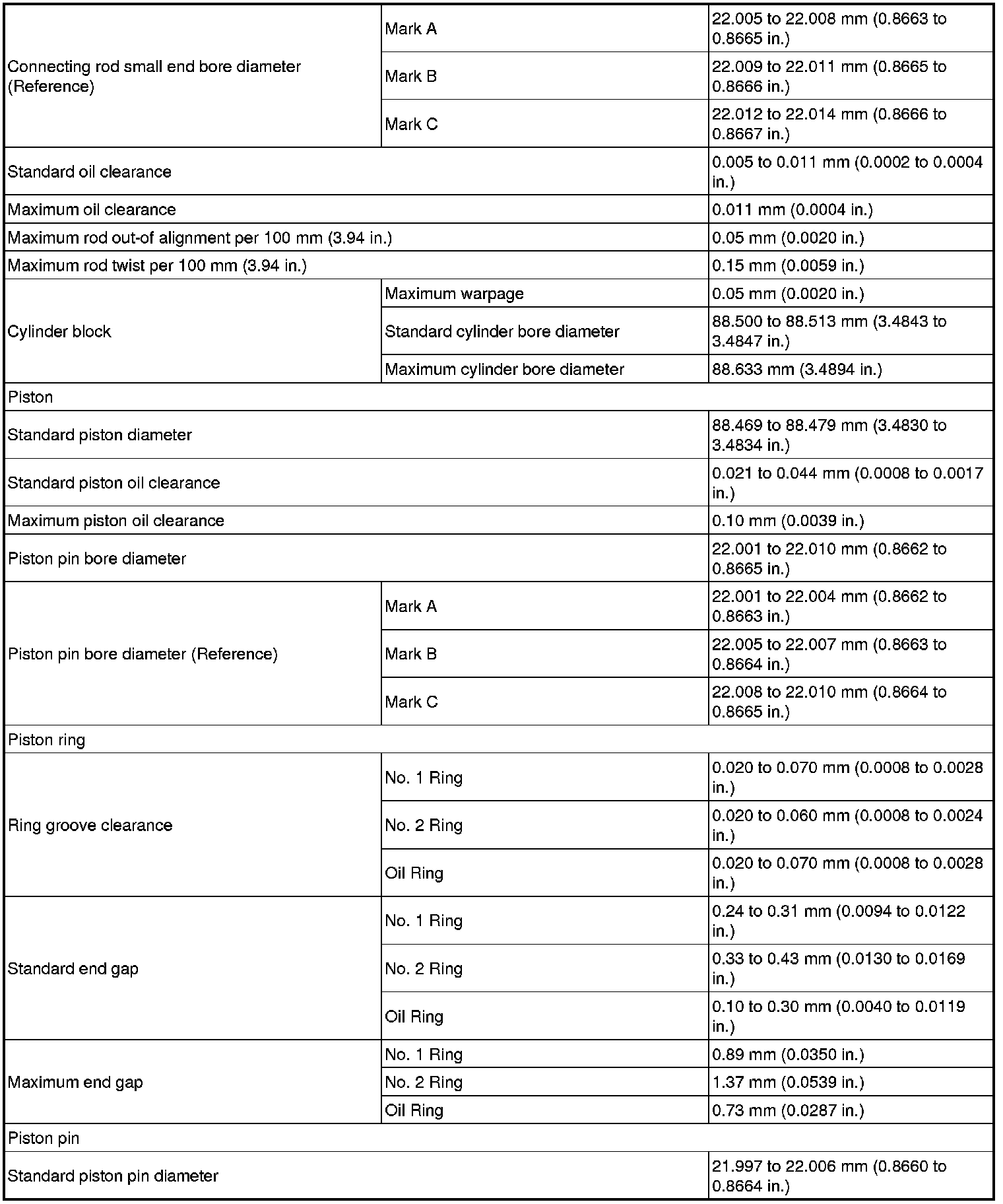

SERVICE SPECIFICATIONS: 2AZ-FE ENGINE MECHANICAL: SERVICE DATA

SERVICE DATA
