Installation

2AZ-FE STARTING: STARTER: INSTALLATION

INSTALLATION

1. INSTALL STARTER ASSEMBLY (for Manual Transaxle)

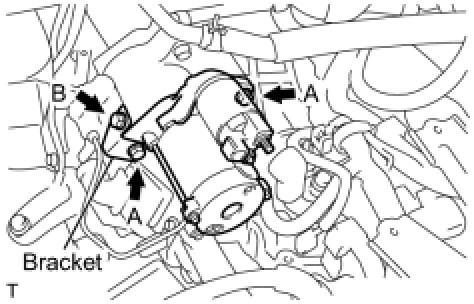

(a) Install the starter assembly and clutch flexible hose bracket with the 3 bolts.
Bolt A - Torque: 37 Nm (380 kgf-cm, 28ft-lbf)
Bolt B - Torque: 12 Nm (120 kgf-cm, 9ft-lbf)

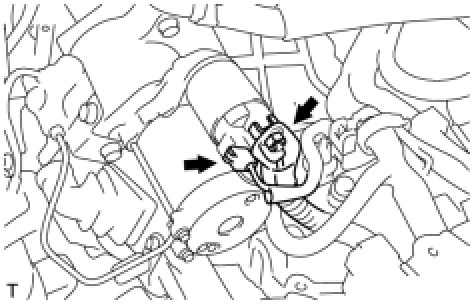

(b) Connect the wire harness to terminal 30 and install the nut. Then, attach the terminal cap.
Torque: 9.8 Nm (100 kgf-cm, 87in-lbf)
(c) Connect the terminal 50 connector to the starter assembly.
2. INSTALL STARTER ASSEMBLY (for Automatic Transaxle)

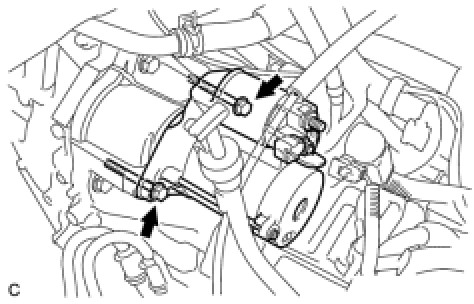

(a) Install the starter assembly with the 2 bolts.
Torque: 37 Nm (380 kgf-cm, 28ft-lbf)

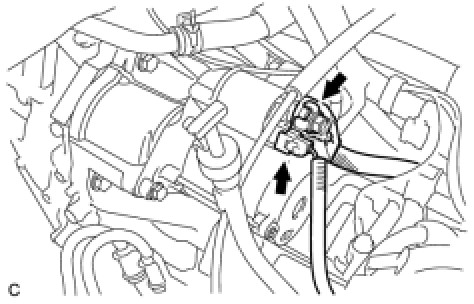

(b) Connect the wire harness to terminal 30 and install the nut. Then, attach the terminal cap.
Torque: 9.8 Nm (100 kgf-cm, 87in-lbf)
(c) Connect the terminal 50 connector to the starter assembly.
3. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation
4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
5. INSTALL AIR CLEANER INLET ASSEMBLY Installation
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
