Installation

U250E AUTOMATIC TRANSAXLE: DIFFERENTIAL OIL SEAL: INSTALLATION

INSTALLATION

1. INSTALL TRANSAXLE HOUSING OIL SEAL

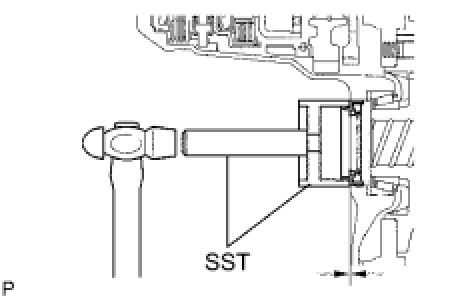

(a) Using SST and a hammer, install a new oil seal.
SST: 09316-60011
09316-00011
Oil seal installation depth:
-0.5 to 0.5 mm (-0.020 to 0.020 in.)
(b) Coat the lip of the oil seal with MP grease.
2. INSTALL DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL

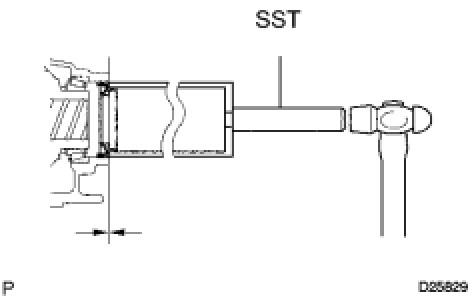

(a) Using SST and a hammer, install a new oil seal.
SST: 09649-17010
SST: 09950-70010
09951-07150
Oil seal installation depth:
-0.5 to 0.5 mm (-0.020 to 0.020 in.)
(b) Coat the lip of the oil seal with MP grease.
3. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH Installation
4. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH Installation
5. INSTALL FRONT AXLE ASSEMBLY LH Installation
6. INSTALL FRONT AXLE ASSEMBLY RH
HINT: Use the same procedures described for the LH side.

7. INSTALL FRONT SUSPENSION LOWER NO. 1 ARM LH Installation
8. INSTALL FRONT SUSPENSION LOWER NO. 1 ARM RH
HINT: Use the same procedures described for the LH side.

9. INSTALL TIE ROD ASSEMBLY LH Installation
10. INSTALL TIE ROD ASSEMBLY RH
HINT: Use the same procedures described for the LH side.

11. INSTALL FRONT SPEED SENSOR LH Installation
12. INSTALL FRONT SPEED SENSOR RH
HINT: Use the same procedures described for the LH side.

13. INSTALL FRONT STABILIZER LINK ASSEMBLY LH Installation
14. INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT: Use the same procedures described for the LH side.

15. INSTALL FRONT AXLE HUB NUT LH Installation
16. INSTALL FRONT AXLE HUB NUT RH
HINT: Use the same procedures described for the LH side.

17. INSTALL FRONT WHEEL Installation
18. ADD AUTOMATIC TRANSAXLE FLUID Installation
19. INSPECT AUTOMATIC TRANSAXLE FLUID Procedures
20. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT Service and Repair.
21. CHECK ABS SPEED SENSOR SIGNAL
HINT: Test Mode Procedure.
