Removal

U250E AUTOMATIC TRANSAXLE: DIFFERENTIAL OIL SEAL: REMOVAL

REMOVAL

1. DRAIN AUTOMATIC TRANSAXLE FLUID Removal
2. REMOVE FRONT WHEEL
3. REMOVE FRONT AXLE HUB NUT LH Removal
4. REMOVE FRONT AXLE HUB NUT RH
HINT: Use the same procedures described for the LH side.

5. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH Removal
6. SEPARATE FRONT STABILIZER LINK ASSEMBLY RH
HINT: Use the same procedures described for the LH side.

7. SEPARATE FRONT SPEED SENSOR LH Removal
8. SEPARATE FRONT SPEED SENSOR RH
9. SEPARATE TIE ROD ASSEMBLY LH Removal
10. SEPARATE TIE ROD ASSEMBLY RH
HINT: Use the same procedures described for the LH side.

11. SEPARATE FRONT SUSPENSION LOWER NO. 1 ARM LH Removal
12. SEPARATE FRONT SUSPENSION LOWER NO. 1 ARM RH
HINT: Use the same procedures described for the LH side.

13. SEPARATE FRONT AXLE ASSEMBLY LH Removal
14. SEPARATE FRONT AXLE ASSEMBLY RH
HINT: Use the same procedures described for the LH side.

15. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH Removal
16. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH Removal
17. FIX FRONT AXLE ASSEMBLY LH Removal
18. FIX FRONT AXLE ASSEMBLY RH
HINT: Use the same procedures described for the LH side.

19. REMOVE TRANSAXLE HOUSING OIL SEAL

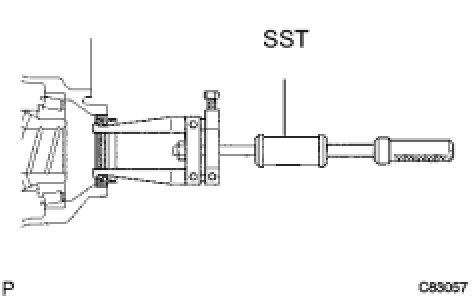

(a) Using SST, pull out the oil seal.
SST: 09308-00010
20. REMOVE DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL

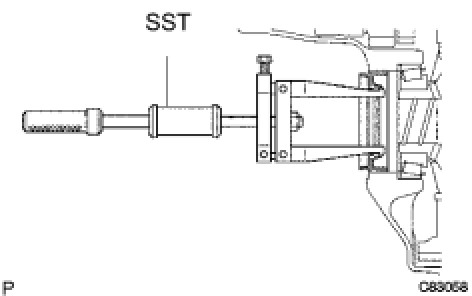

(a) Using SST, pull out the oil seal.
SST: 09308-00010
