Disassembly

U250E AUTOMATIC TRANSAXLE: SHIFT SOLENOID VALVE: DISASSEMBLY

DISASSEMBLY

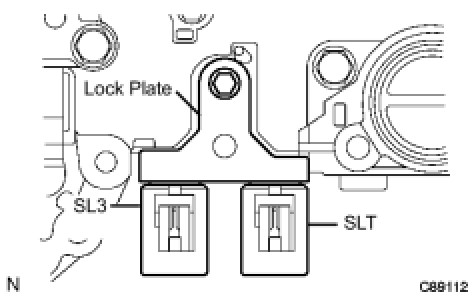

1. REMOVE SHIFT SOLENOID VALVE SL3





(a) Remove the bolt and lock plate from the valve body assembly.
(b) Remove the shift solenoid valve SL3 from the valve body assembly.
2. REMOVE SHIFT SOLENOID VALVE SLT
(a) Remove the shift solenoid valve SLT from the valve body assembly.

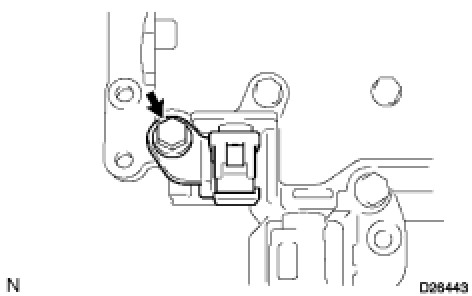

3. REMOVE SHIFT SOLENOID VALVE S4





(a) Remove the bolt and shift solenoid valve S4 from the valve body assembly.

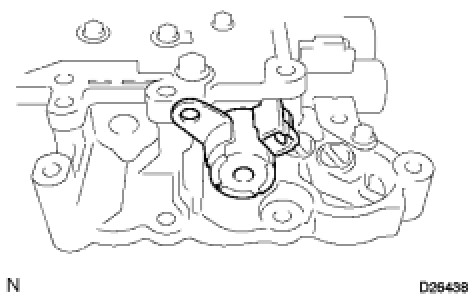

4. REMOVE SHIFT SOLENOID VALVE SR





(a) Remove the shift solenoid valve SR from the valve body assembly.

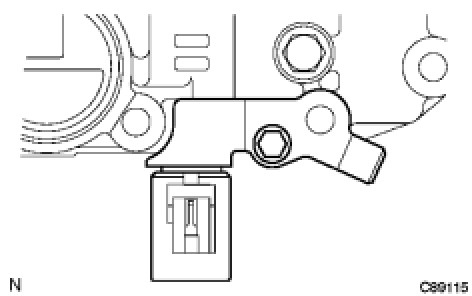

5. REMOVE SHIFT SOLENOID VALVE DSL





(a) Remove the bolt and shift solenoid valve DSL from the valve body assembly.

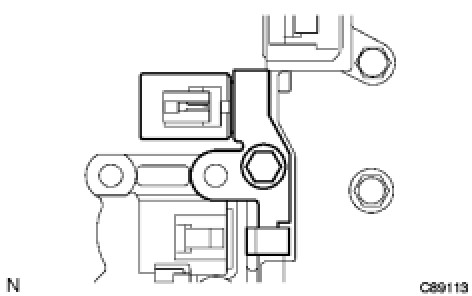

6. REMOVE SHIFT SOLENOID VALVE SL2





(a) Remove the bolt, lock plate and shift solenoid valve SL2 from the valve body assembly.
7. REMOVE SHIFT SOLENOID VALVE SL1





(a) Remove the bolt, lock plate and shift solenoid valve SL1 from the valve body assembly.
