Part 2

The content of this article/image reflects the changes identified in TSB-SB0351-10.

TRANSAXLE REPLACEMENT SUPPLEMENT

INSTALLATION (Continued)

22. Install the front wheels.

23. Install the front wheel opening extension pad LH.

24. Install the engine under cover LH.

25. Install the front wheel opening extension pad RH.

26. Install the front fender apron seal LH.

27. Install the front fender apron seal RH.

28. Remove the Engine Support Bar.

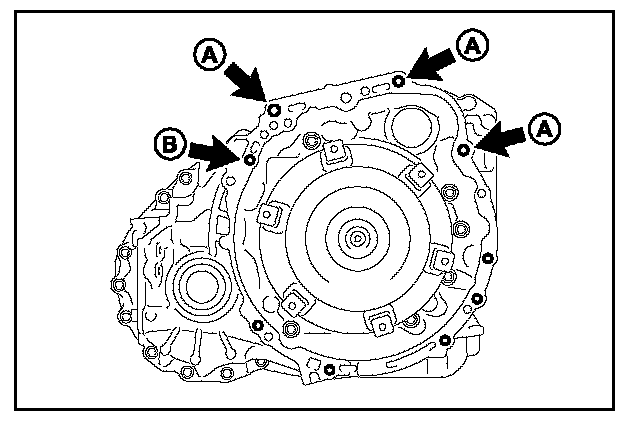

29. Install the upper (4) transaxle bolts

Bolt A:
Torque: 64 N*m (653 kgf*cm, 47 ft*lbf)
Bolt B:
Torque: 46 N*m (469 kgf*cm, 34 ft*lbf)

NOTICE
* Do NOT forcibly pry on the automatic transaxle assembly.
* Check that torque converter rotates.

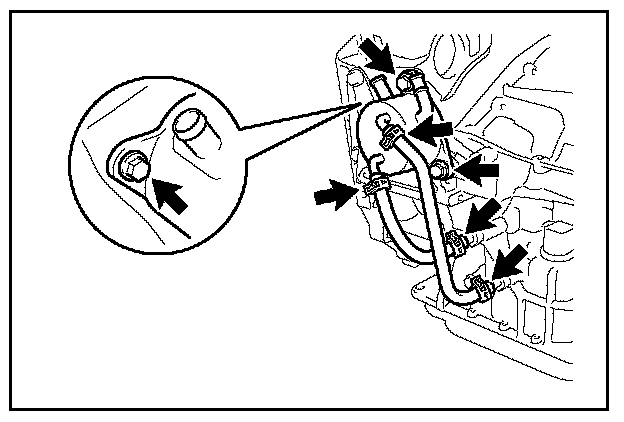

30. Install the transmission oil cooler.

A. Install the transmission oil cooler to the front engine mounting bracket with the 3 bolts.

Torque: 12 N*m (122 kgf*cm, 9 ft*lbf)

B. Connect the No. 1 oil cooler outlet hose and No. 1 oil cooler inlet hose.

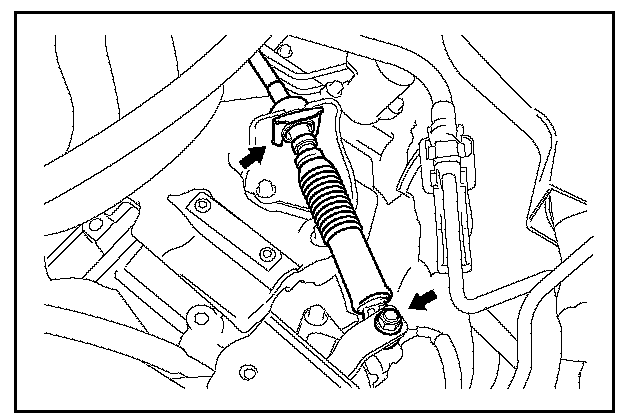

31. Connect the transmission control cable assembly.

Install a new clip and nut, and connect the cable to the transaxle.

Torque: 13 N*m (130 kgf*cm, 9 ft*lbf)

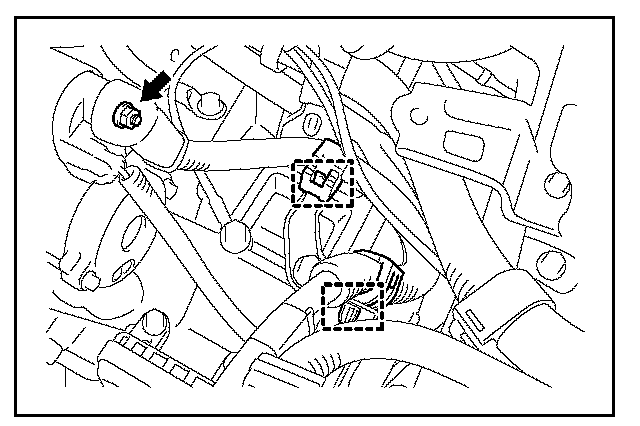

32. Connect the engine wire.





A. Install the positive (+) cable with the nut and 2 clamps.

Torque: 9.8 N*m (100 kgf*cm, 87 in*lbf)





B. Install the air cleaner bracket with the 2 bolts.

Torque: 7.8 N*m (80 kgf*cm, 69 in*lbf)

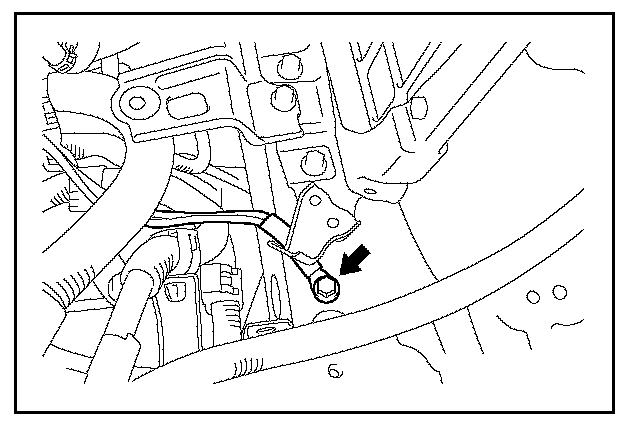

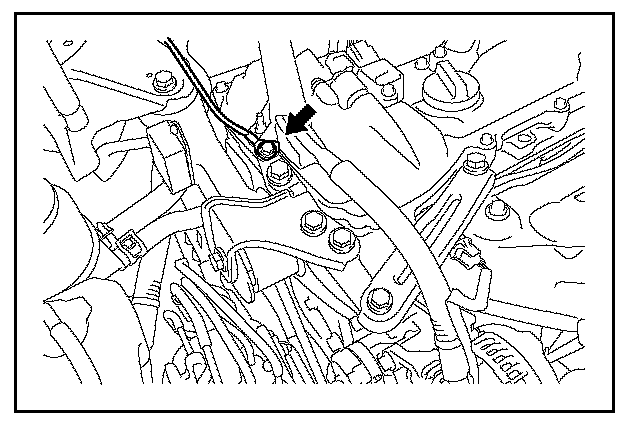

C. Connect the ground cable with the bolt.

Torque: 8.4 N*m (86 kgf*cm, 74 in*lbf)

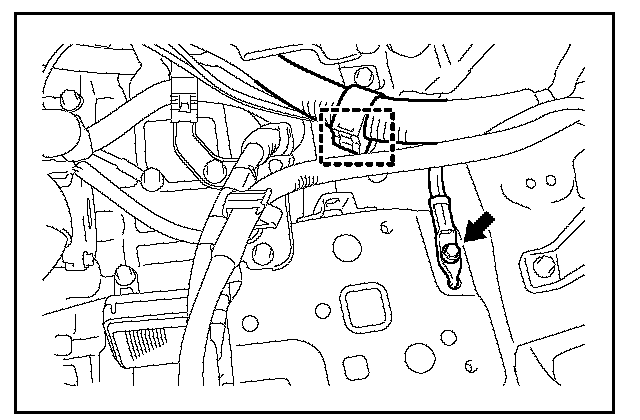

D. Connect the ground cable with the bolt.

Torque: 8.4 N*m (86 kgf*cm, 74 in*lbf)

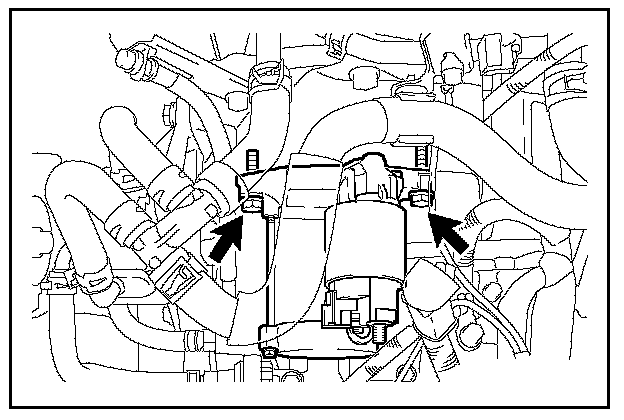

33. Install the starter assembly.





A. Install the starter assembly with the 2 bolts.

Torque: 37 N*m (377 kgf*cm, 27 ft*lbf)

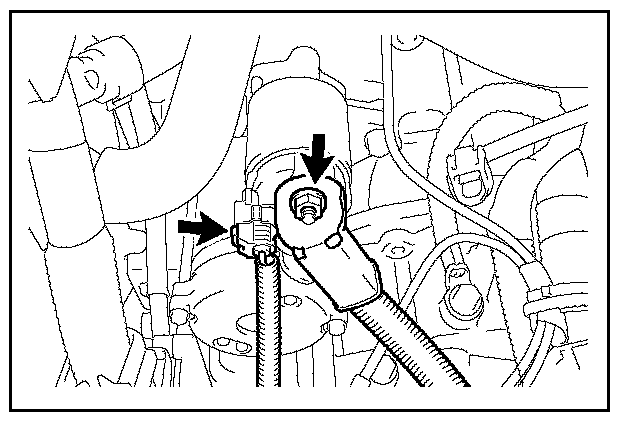

B. Connect the wire harness to terminal 30 and install the nut. Then attach the terminal cap.

Torque: 9.8 N*m (100 kgf*cm, 87 in*lbf)

C. Connect the terminal 50 connector to the starter assembly.

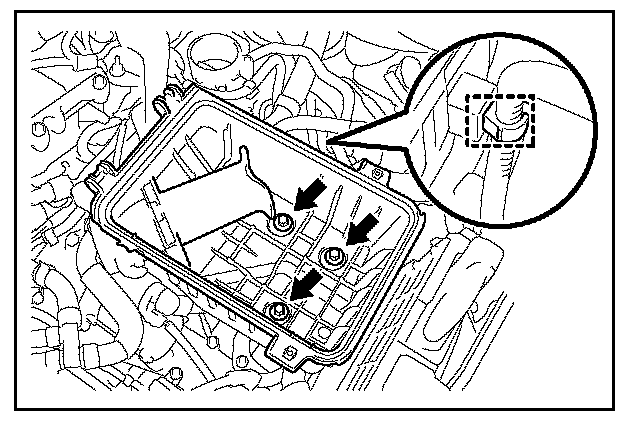

34. Install the air cleaner case sub-assembly.

A. Install the air cleaner case with the 3 bolts.

Torque: 5.0 N*m (51 kgf*cm, 44 in*lbf)

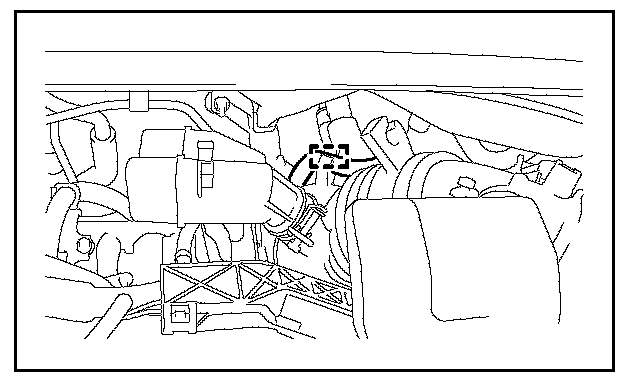

B. Connect the wire harness clamp.

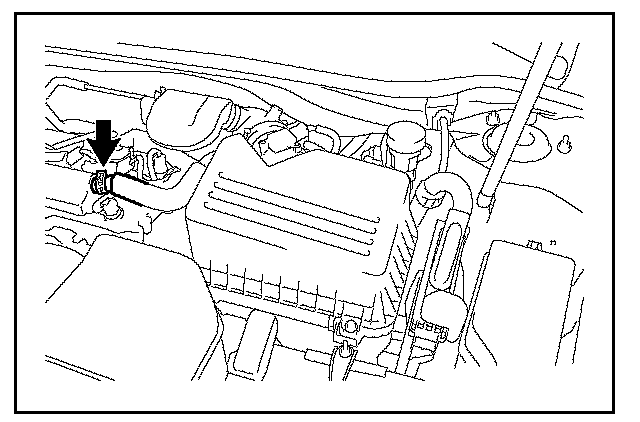

35. Install the air cleaner cap sub-assembly.





A. Connect the air cleaner cap sub-assembly with the hose clamp.





B. Connect the hose with the hose clamp.





C. Engage the hose with the hose clamp.

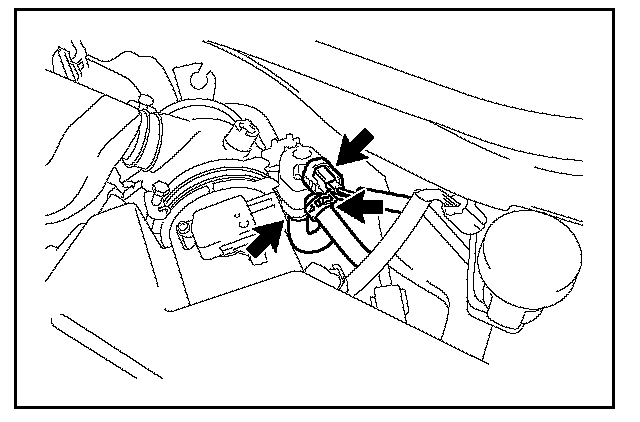

D. Connect the vacuum switching valve connector and 2 hoses.

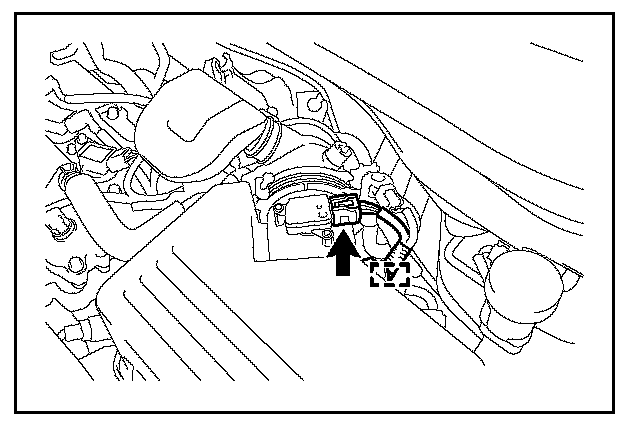

E. Connect the mass air flow meter connector and wire harness clamp to the air cleaner cap sub-assembly.

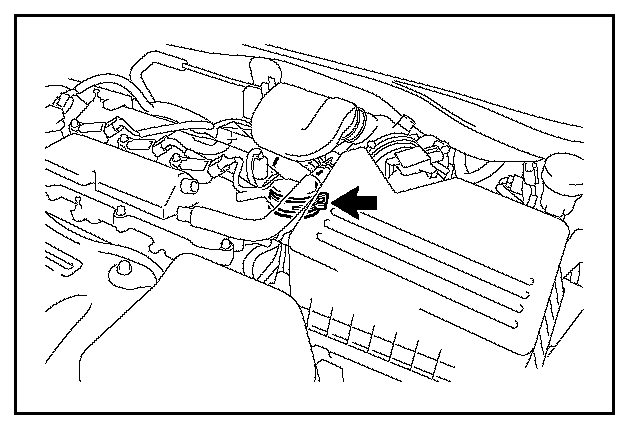

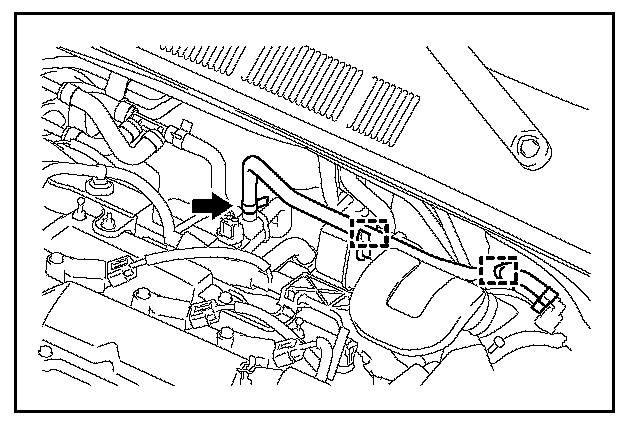

F. For PZEV vehicles: Connect the hose and engage the hose to the clips on the air cleaner hose.

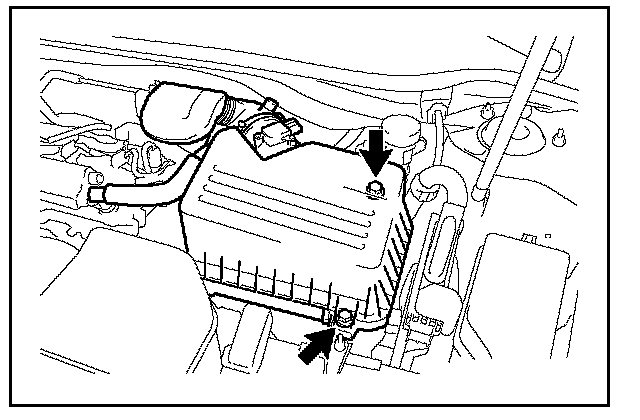

G. Install the air cleaner cap sub-assembly with the 2 bolts.

Torque: 5.0 N*m (51 kgf*cm, 44 in*lbf)

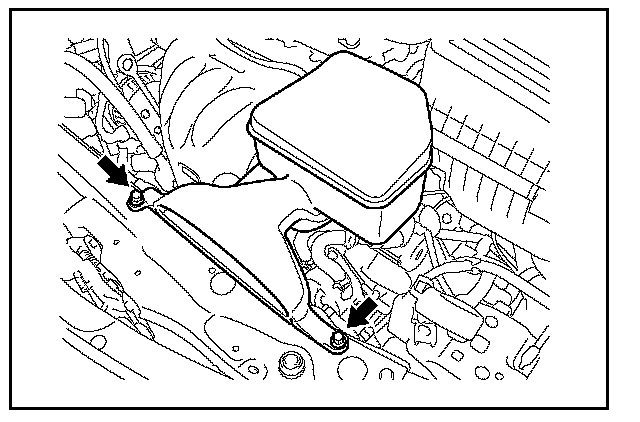

36. Install the inlet air cleaner assembly with the 2 bolts.

Torque: 5.0 N*m (51 kgf*cm, 44 in*lbf)

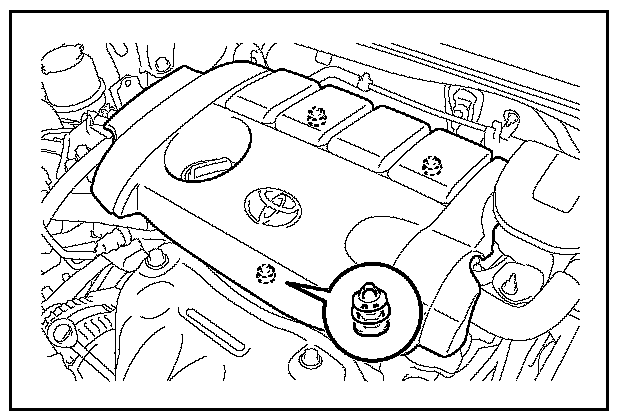

37. Fit the 3 retainers and install the No. 1 engine cover sub-assembly.

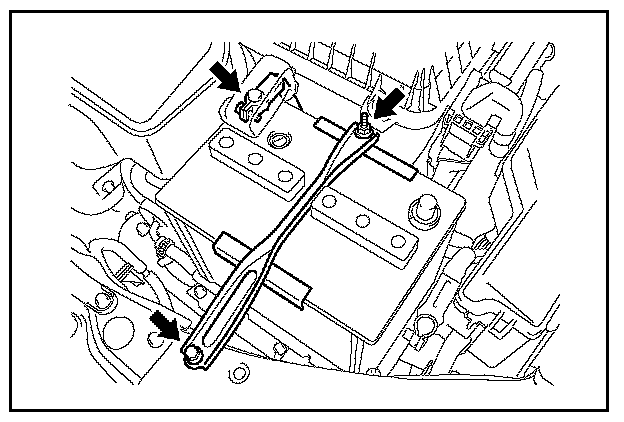

38. Install the battery.

A. Install the battery and battery tray.

B. Install the battery clamp with the bolt and nut.

Bolt:
Torque: 9.0 N*m (92 kgf*cm, 80 in*lbf)
Nut:
Torque: 3.5 N*m (36 kgf*cm, 31 in*lbf)

C. Connect the battery terminals.

Torque: 6.9 N*m (70 kgf*cm, 61 in*lbf)

39. Fill transmission to correct level with transaxle fluid using SST 00002-11100-02.

SST: 00002-11100-02

40. Check for exhaust leaks.

41. Check for fluid leaks.

42. Check shift lever position.

43. Install the engine under covers.

44. Re-initialize auto-power windows and moon roof (if equipped).

45. Test drive vehicle, insuring proper operation.

46. Adjust wheel alignment as needed.
