U250E AUTOMATIC TRANSAXLE: TRANSMISSION CONTROL CABLE ASSEMBLY: INSTALLATION

INSTALLATION

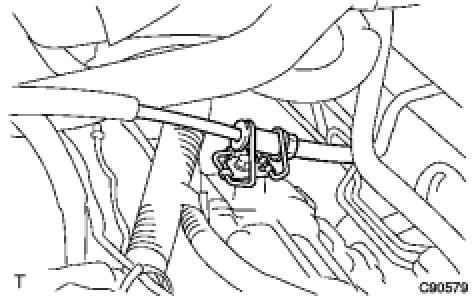

1. INSTALL NO. 2 SHIFT CABLE GROMMET RETAINER
(a) Pass the transmission control cable assembly from the cabin to the engine compartment.
(b) Install the No. 2 shift cable grommet retainer to the transmission control cable assembly.





(c) Install the No. 2 shift cable grommet retainer with the 2 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44in-lbf)
2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Install the transmission control cable assembly as shown in the illustration.
HINT:
- Install the floor shift cable with the uneven surface facing up.
- Securely engage the claws of the floor shift cable.





(b) Connect the control cable to the control cable clamp.





(c) Connect the control cable to the bracket with a new clip.





(d) Install the transmission control cable to the control shaft lever with the nut.
Torque: 15 Nm (150 kgf-cm, 11ft-lbf)





(e) Push in the lock piece of the transmission control cable.
NOTICE: Firmly push in the lock piece until the slider lock is engaged.
HINT: After pushing in the lock piece, make sure that the boot is not deformed.

3. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation
4. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
5. INSTALL AIR CLEANER INLET ASSEMBLY Installation
6. INSTALL BATTERY Installation
7. INSTALL AIR CONDITIONING UNIT
HINT: Installation.

8. INSPECT SHIFT LEVER POSITION Adjustments
9. ADJUST SHIFT LEVER POSITION Adjustments
