U250E AUTOMATIC TRANSAXLE: SHIFT LEVER: ADJUSTMENT

ADJUSTMENT

1. ADJUST SHIFT LEVER POSITION
(a) Move the shift lever to the N position.





(b) Remove the nut from the control shaft lever.
(c) Disconnect the transmission control cable assembly from the control shaft lever.





(d) Push the control shaft fully downward.
(e) Return the control shaft lever 2 notches to the N position.

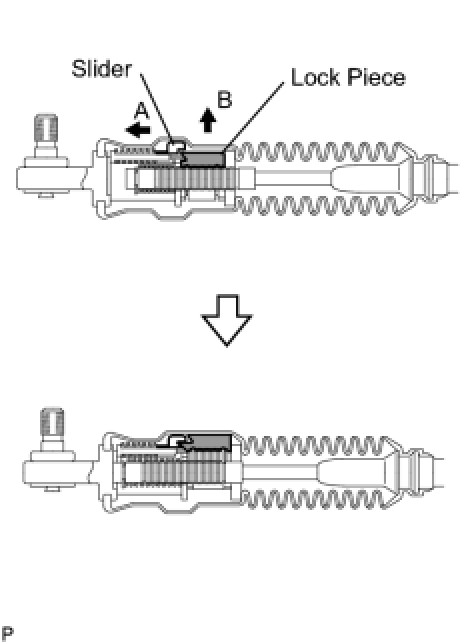

(f) Move the slider in the direction indicated by arrow A and pull up the lock piece in the direction indicated by arrow B.
NOTICE: Do not damage the boot.





(g) Connect the transmission control cable assembly to the control shaft lever with the nut.
Torque: 15 Nm (150 kgf-cm, 11ft-lbf)

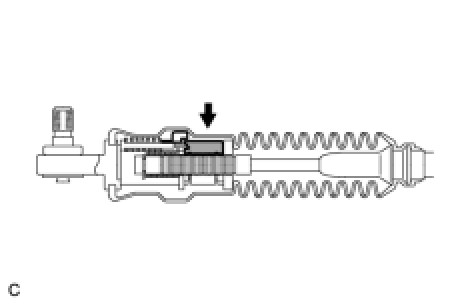

(h) Push in the lock piece.
NOTICE: Firmly push in the lock piece until the slider lock is engaged.

(i) Start the engine and make sure that the vehicle moves forward when moving the lever from the N to the D position and moves rearward when moving it to the R position.
If it becomes hard to move the shift lever, readjust the shift lever position.
