Inspection

U250E AUTOMATIC TRANSAXLE: SHIFT LEVER: INSPECTION

INSPECTION

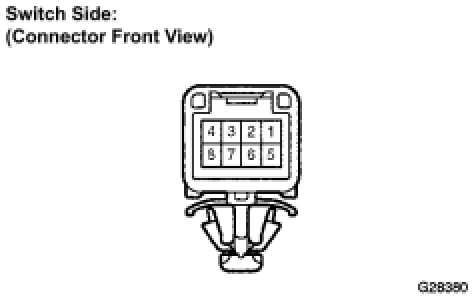

1. INSPECT TRANSMISSION CONTROL SWITCH

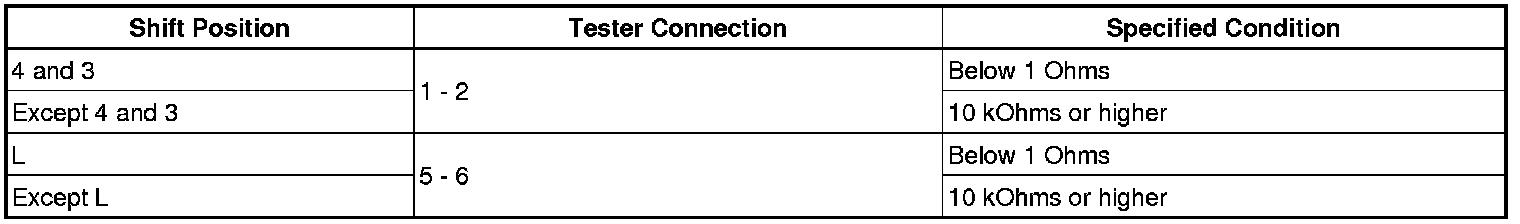

(a) Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.
Standard resistance:





If the resistance value is not as specified, replace the transmission control switch.
