Differential Case

U250E AUTOMATIC TRANSAXLE: DIFFERENTIAL CASE: INSPECTION

INSPECTION

1. INSPECT BACKLASH

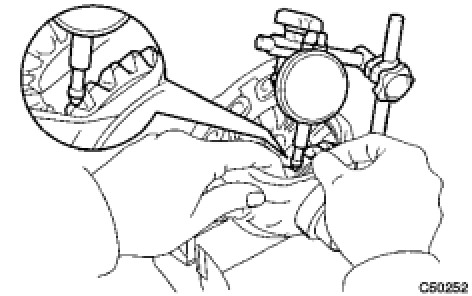

(a) Using a dial indicator, inspect the backlash of the side gear.
Standard backlash:
0.05 to 0.20 mm (0.0020 to 0.0079 in.)

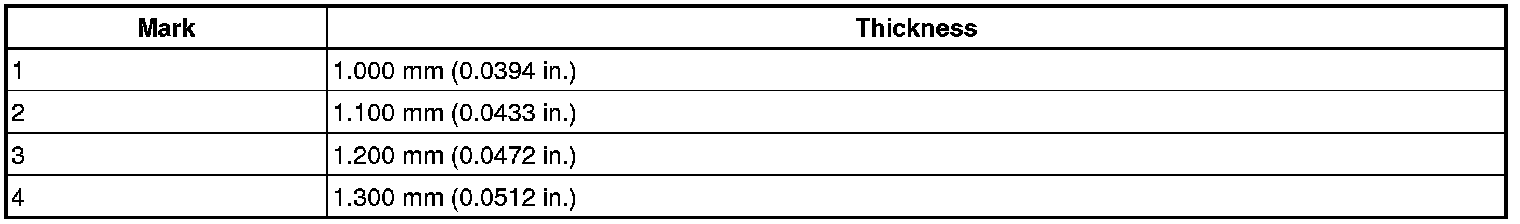

Thrust Washer Thickness
