Underdrive Planetary Gear

U250E AUTOMATIC TRANSAXLE: UNDERDRIVE PLANETARY GEAR: INSPECTION

INSPECTION

1. INSPECT UNDERDRIVE PLANETARY GEAR PRELOAD

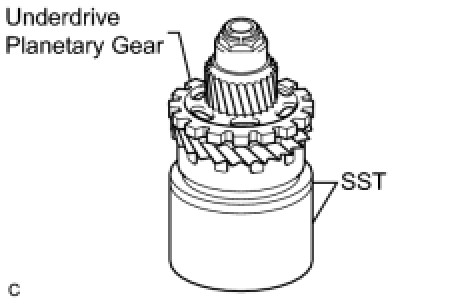

(a) Using SST, fix the underdrive planetary gear assembly.
SST: 09387-00050
SST: 09495-65040

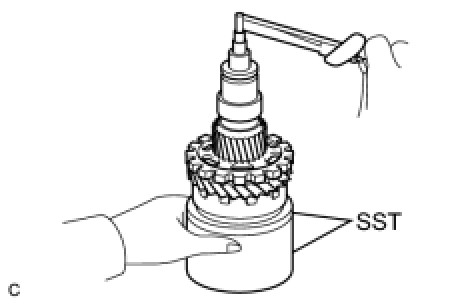

(b) Using SST and a torque wrench, measure the turning torque of the underdrive planetary gear assembly while turning the torque wrench at 60 rpm.
SST: 09387-00050
SST: 09495-65040
Turning torque at 60 rpm:
0.28 to 0.89 N*m (2.9 to 9.1 kgf*cm, 2.478 to 7.877 in.*lbf)
HINT: Use a torque wrench with a fulcrum length of 160 mm (6.3 in.).
