Reassembly

CLUTCH: CLUTCH RELEASE CYLINDER: REASSEMBLY

REASSEMBLY

1. INSTALL RELEASE CYLINDER BLEEDER PLUG
(a) Install the bleeder plug to the cylinder body.
Torque: 8.3 Nm (85 kgf-cm, 73in-lbf)
2. INSTALL CLUTCH RELEASE CYLINDER KIT
(a) Install the bleeder plug cap to the bleeder plug.
(b) Install a new spring to the cylinder body.

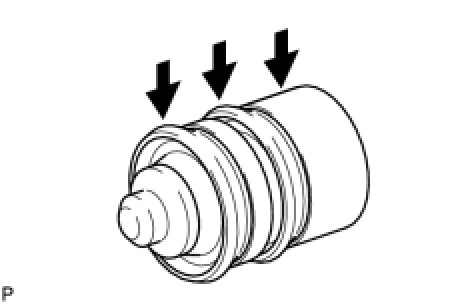

(c) Coat the piston with lithium soap base glycol grease as shown in the illustration.
(d) Install the piston to the cylinder body.
NOTICE: Be careful not to damage the inside of the cylinder body.

(e) Install the push rod to the cylinder body.
(f) Install the boot to the cylinder body.
