Clutch Cover

CLUTCH COVER

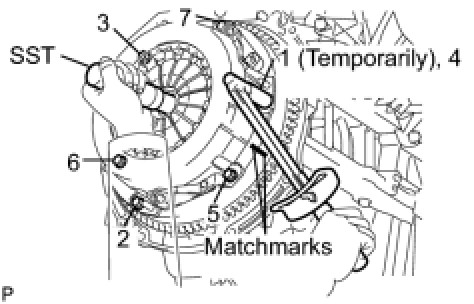

Align the matchmarks on the clutch cover assembly with the one on the flywheel sub-assembly.
Following the procedures shown in the illustration, tighten the 6 bolts in order, starting with the bolt located near the knock pin on the top.

Torque 19 Nm (195 kgf-cm, 14 ft-lbf)
