E351 MANUAL TRANSAXLE: TRANSMISSION CONTROL CABLE: INSTALLATION

INSTALLATION

1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Install the No. 2 shift cable grommet retainer to the transmission control cable assembly.
(b) Install the control cable assembly through the floor hole.
(c) Install the control cable assembly with the 2 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44in-lbf)





(d) Connect the ends of the 2 cables and install the 2 washers and 2 clips.
(e) Install 2 new clips to the control cable bracket.
2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

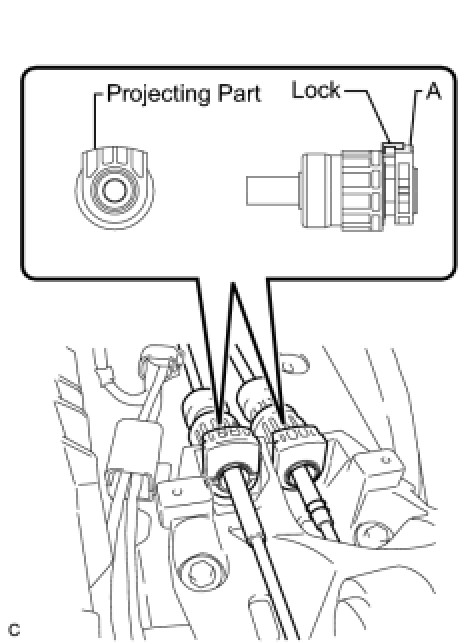

(a) Connect the control cable to the shift lever retainer.
NOTICE:
- The projecting part of the cable outer should face upward when the shift cable is connected.
- After installation, make sure that the cable outer lock is projecting from A as shown in the illustration.

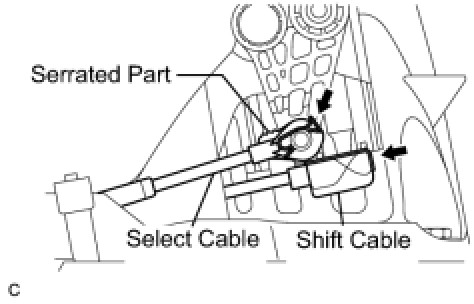

(b) Connect the end of the shift cable to the shift lever assembly with the clip.
(c) Connect the end of the select cable to the shift lever assembly with a new clip.
NOTICE:
- The serrated part of the select cable point should face upward when the select cable point is connected.
- The clip should be installed in the direction as shown in the illustration.

3. INSTALL CENTER AIRBAG SENSOR ASSEMBLY Installation
4. INSTALL AIR CONDITIONER UNIT ASSEMBLY Installation.
5. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation.
6. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY Installation
7. INSTALL UPPER CONSOLE PANEL Installation
8. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation
9. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation
10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
11. INSTALL BATTERY Installation
12. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation
13. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
14. INSTALL AIR CLEANER INLET ASSEMBLY Installation
15. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
