E351 MANUAL TRANSAXLE: TRANSMISSION CONTROL CABLE: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal
3. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal
4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal
5. REMOVE UPPER CONSOLE PANEL Removal
6. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY Installation
7. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY

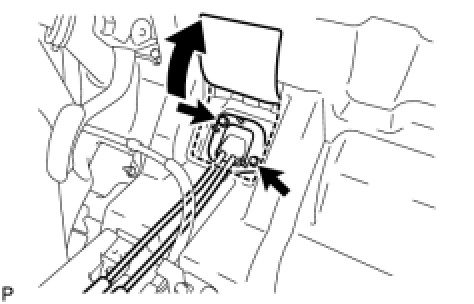

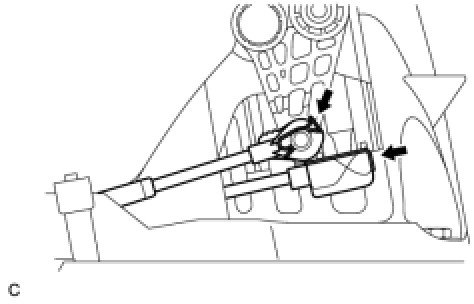

(a) Remove the 2 clips and disconnect the end of the transmission control cable.

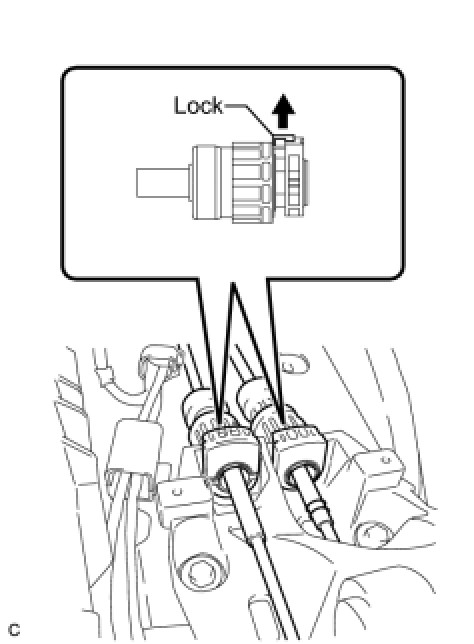

(b) Pull out the control cable assembly locks.
(c) Turn the adjust nut 180° clockwise. While holding the adjust nut, separate the control cable assembly.
8. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Removal.
9. REMOVE AIR CONDITIONER UNIT ASSEMBLY Removal.
10. REMOVE CENTER AIRBAG SENSOR ASSEMBLY Removal
11. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal
12. REMOVE AIR CLEANER INLET ASSEMBLY Removal
13. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal
14. REMOVE AIR CLEANER CASE SUB-ASSEMBLY Removal
15. REMOVE BATTERY Removal
16. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Remove the 2 clips and 2 washers and disconnect the 2 cables from the transaxle.
(b) Remove the 2 clips and disconnect the 2 cables from the control cable bracket.





(c) Remove the 2 bolts and control cable assembly.
(d) Remove the No. 2 shift cable grommet retainer from the control cable assembly.
