Installation

E351 MANUAL TRANSAXLE: SHIFT LEVER ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL FLOOR SHIFT LEVER ASSEMBLY

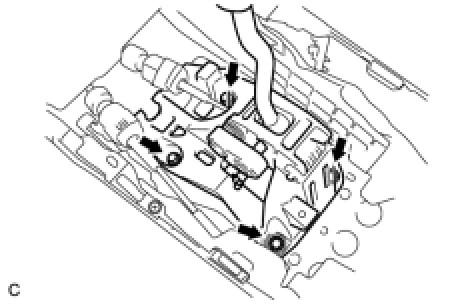

(a) Install the shift lever assembly with the 4 bolts.
Torque: 12 Nm (122 kgf-cm, 9ft-lbf)
2. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Connect the control cable to the shift lever retainer.
NOTICE:
- The projecting part of the cable outer should face upward when the shift cable is connected.
- After installation, make sure that the cable outer lock is projecting from A as shown in the illustration.





(b) Connect the end of the shift cable to the shift lever assembly with the clip.
(c) Connect the end of the select cable to the shift lever assembly with a new clip.
NOTICE:
- The serrated part of the select cable point should face upward when the select cable point is connected.
- The clip should be installed in the direction as shown in the illustration.

3. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY Installation
4. INSTALL UPPER CONSOLE PANEL Installation
5. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation
6. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation
7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
