E351 MANUAL TRANSAXLE: SHIFT LEVER ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal
2. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal
3. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal
4. REMOVE UPPER CONSOLE PANEL Removal
5. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY Removal
6. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Remove the 2 clips and disconnect the end of the transmission control cable.





(b) Pull out the control cable assembly locks.

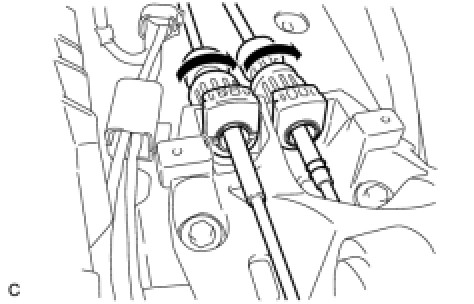

(c) Turn the adjust nut 180° clockwise. While holding the adjust nut, separate the control cable assembly.
7. REMOVE FLOOR SHIFT LEVER ASSEMBLY





(a) Remove the 4 bolts and shift lever assembly.
