B1207

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: B1207: Certification ECU Communication Malfunction

DTC B1207 - Certification ECU Communication Malfunction

DESCRIPTION

The main body ECU will store this DTC when no signals can be received from the certification ECU while the CAN MS main bus is normal.

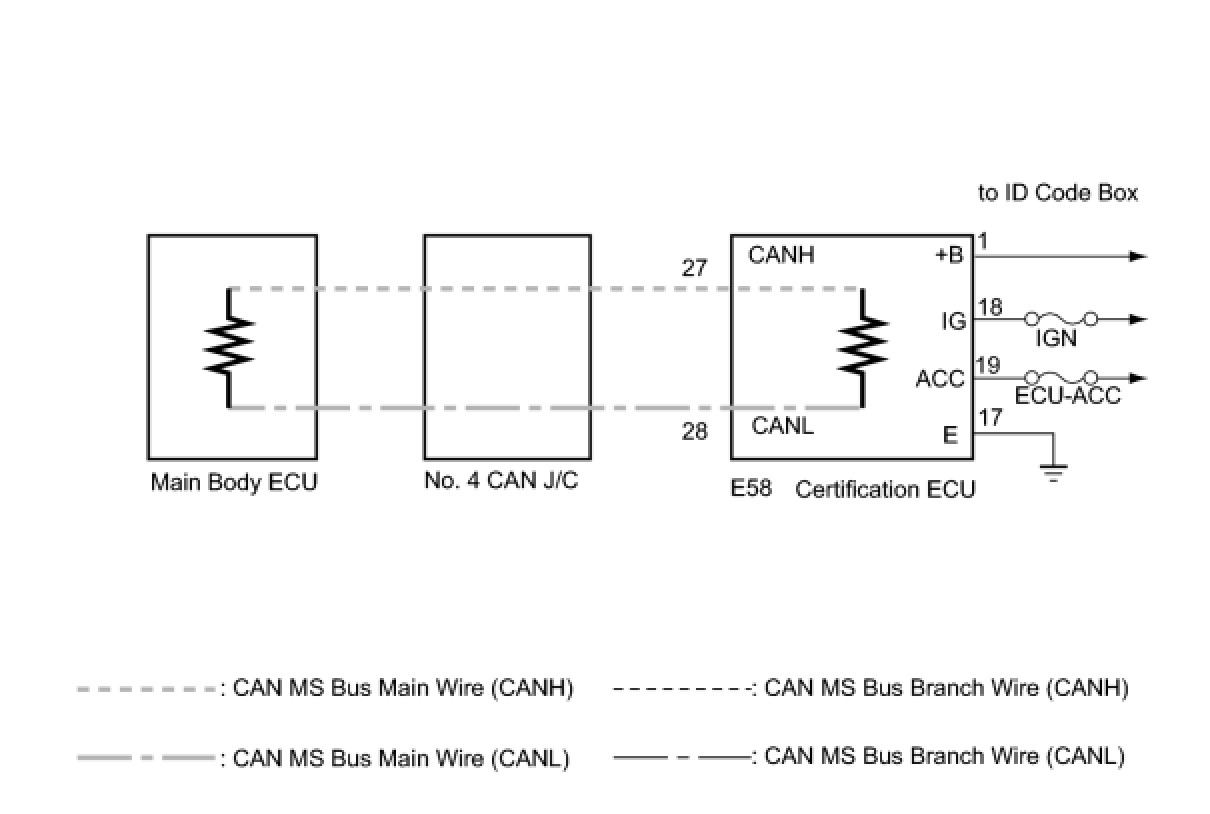

WIRING DIAGRAM





INSPECTION PROCEDURE
NOTICE:
- Turn the ignition switch off before measuring the resistances of CAN bus main wires and CAN bus branch wires.
- After the ignition switch is turned off, check that the key reminder warning system and light reminder warning system are not in operation.
- Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches, or the doors. If any doors need to be opened in order to check the connectors, open the doors and leave them open.
HINT:
- Operating the ignition switch, any other switches, or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.
- Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below will help determine the cause of the malfunction.

PROCEDURE

1. CHECK FOR DTC
(a) Check for DTC.
HINT: If the CAN MS bus communication error DTC B2326 is output, troubleshoot for B2326 and check for malfunctions in the CAN MS main bus circuit.

Result:






B -- GO TO DTC CHART (B2326)
A -- Continue to next step.
2. CHECK CAN MS BUS WIRE (CERTIFICATION ECU)
(a) Turn the ignition switch off.

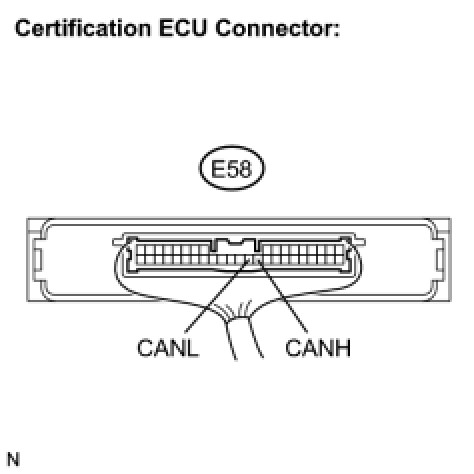

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE CAN MS BUS BRANCH WIRE OR CONNECTOR (CERTIFICATION ECU)
OK -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)




(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:

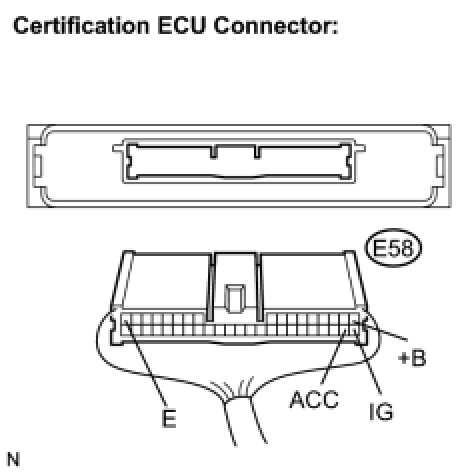

(b) Measure the voltage according to the value(s) in the table below.

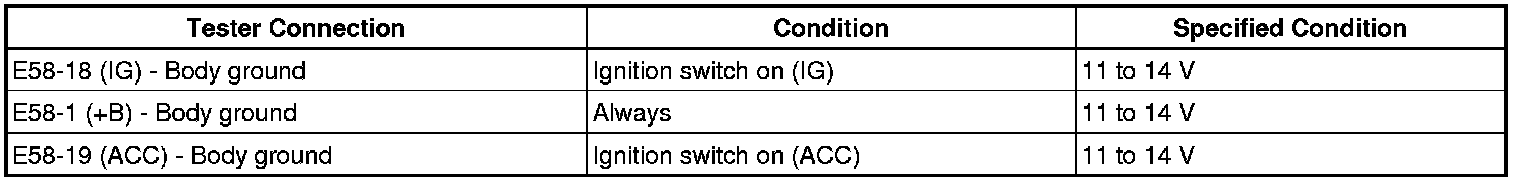

Standard voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE CERTIFICATION ECU
