B2325

MULTIPLEX COMMUNICATION: LIN COMMUNICATION SYSTEM: B2325: LIN Communication Bus Malfunction

DTC B2325 - LIN Communication Bus Malfunction

DESCRIPTION

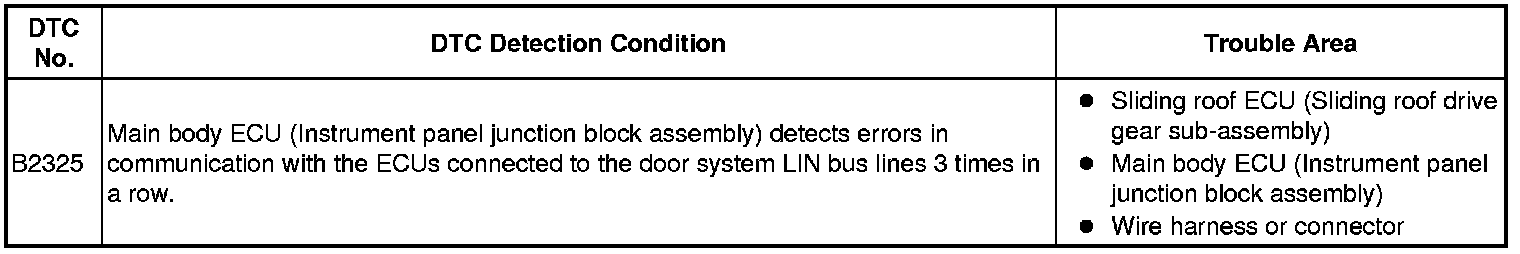

The main body ECU (Instrument panel junction block assembly) monitors communication between all the ECUs connected to the door system LIN bus lines. When the main body ECU (Instrument panel junction block assembly) detects errors in communication with all the ECUs connected to the door system LIN bus lines at 2.6-second intervals and 3 times in a row, DTC B2325 will be output.

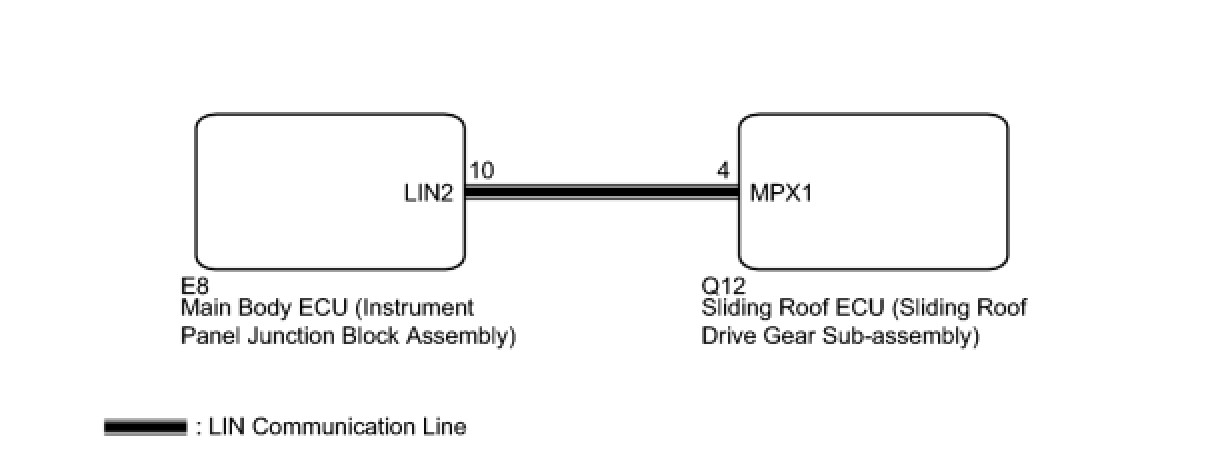

WIRING DIAGRAM





INSPECTION PROCEDURE
NOTICE: When using the Techstream with the ignition switch off to troubleshoot:

Connect the Techstream to the vehicle, and turn the courtesy switch on and off at 1.5-second intervals until communication between the Techstream and vehicle begins.

PROCEDURE

1. CHECK FOR DTC
(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.
(b) Recheck for DTC.
OK:
B2325 is not output.
NG -- CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - EACH ECU)
OK -- USE SIMULATION METHOD TO CHECK
2. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - EACH ECU)

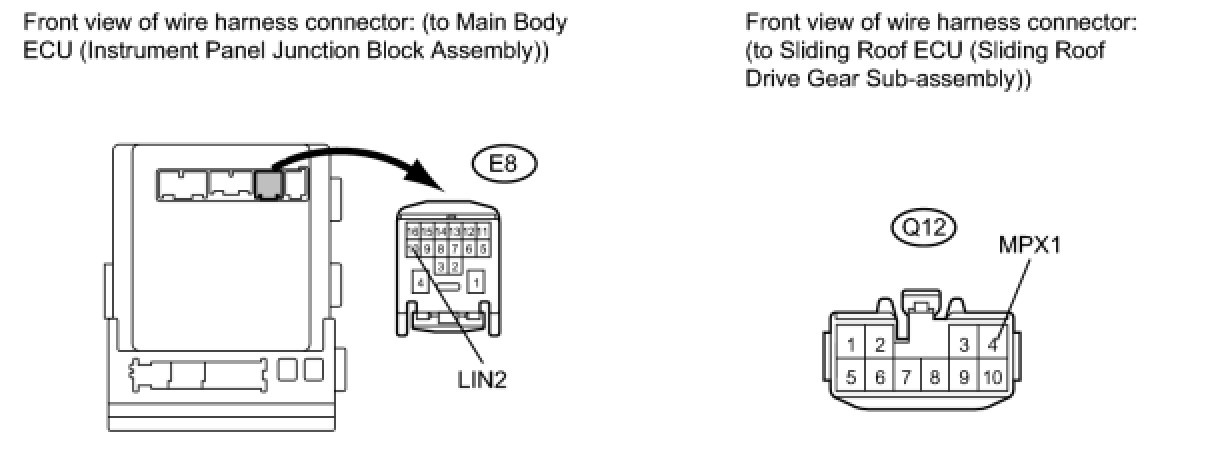

(a) Disconnect the E8 and Q12 connectors.

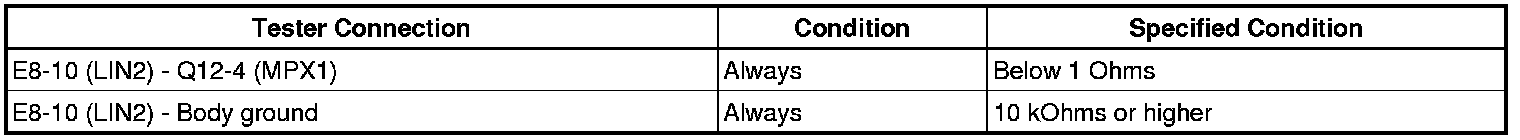

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





(c) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
3. REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY)
(a) Replace the sliding roof ECU (sliding roof drive gear sub-assembly) Removal.
NEXT -- Continue to next step.
4. CHECK FOR DTC
(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.
(b) Recheck for DTC.
OK:
B2325 is not output.
NG -- REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)
OK -- END (SLIDING ROOF ECU IS DEFECTIVE)
