ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: B2784: Antenna Coil Open / Short

DTC B2784 - Antenna Coil Open / Short

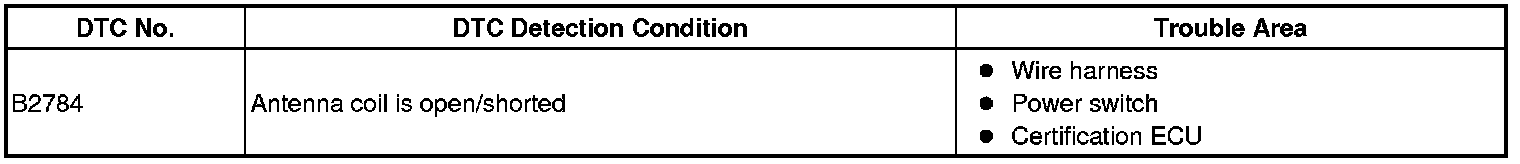

DESCRIPTION

This DTC is output when there is an open or short in the key coil (built into power switch).

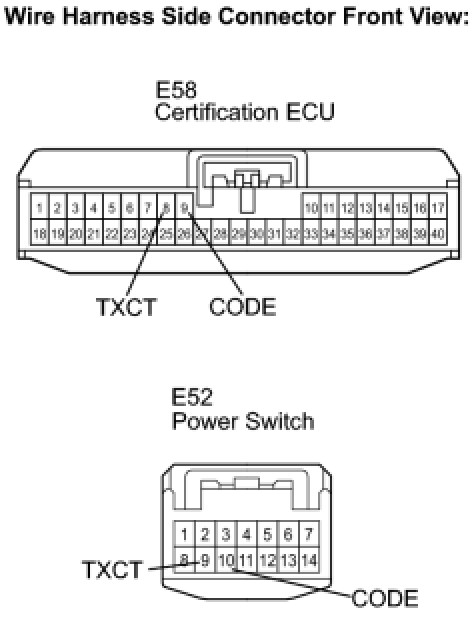

WIRING DIAGRAM





INSPECTION PROCEDURE
NOTICE: If the certification ECU is replaced, register the key and ECU communication ID Programming and Relearning.

PROCEDURE

1. CHECK DTC OUTPUT
(a) Delete the DTCs Reading and Clearing Diagnostic Trouble Codes.
(b) Recheck for DTCs Reading and Clearing Diagnostic Trouble Codes.

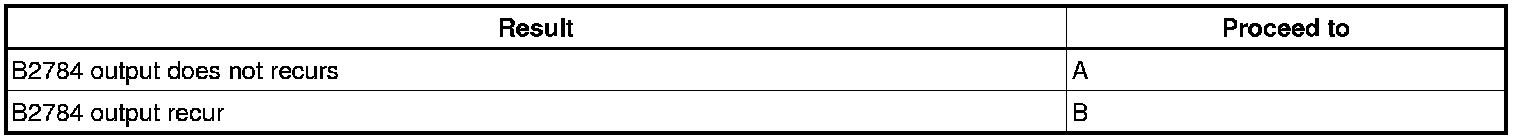

Result:






B -- USE SIMULATION METHOD TO CHECK
A -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - POWER SWITCH)




(a) Disconnect the E58 ECU and E52 switch connectors.

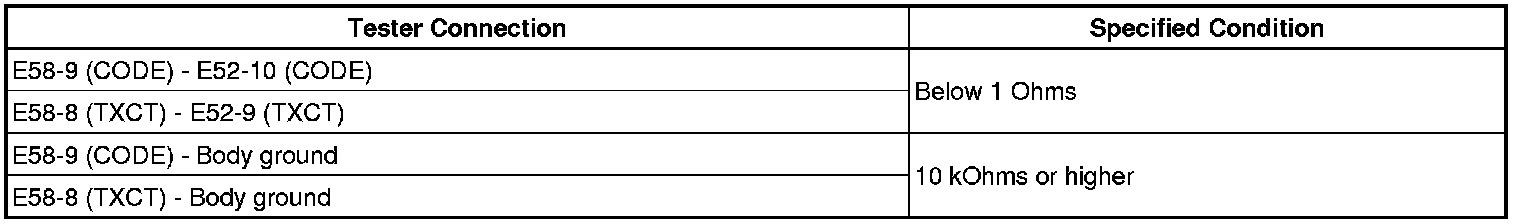

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
3. REPLACE POWER SWITCH
(a) Replace the power switch Removal.
NEXT -- Continue to next step.
4. CHECK DTC OUTPUT
(a) Delete the DTCs Reading and Clearing Diagnostic Trouble Codes.
(b) Recheck for DTCs Reading and Clearing Diagnostic Trouble Codes.

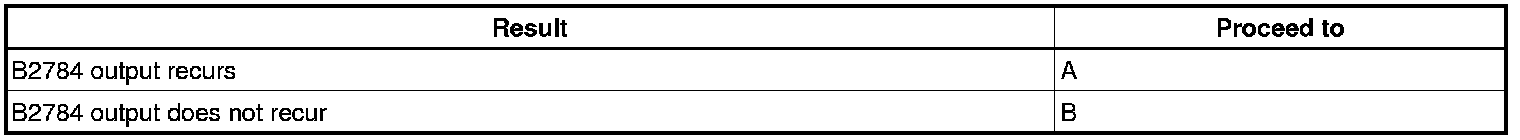

Result:






B -- REPLACE CERTIFICATION ECU
A -- END
