Electronic Power Steering System

POWER STEERING: ELECTRONIC POWER STEERING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, turn to the respective DTC code in the DTC chart

ELECTRONIC POWER STEERING SYSTEM DIAGNOSTIC TROUBLE CODE CHART:

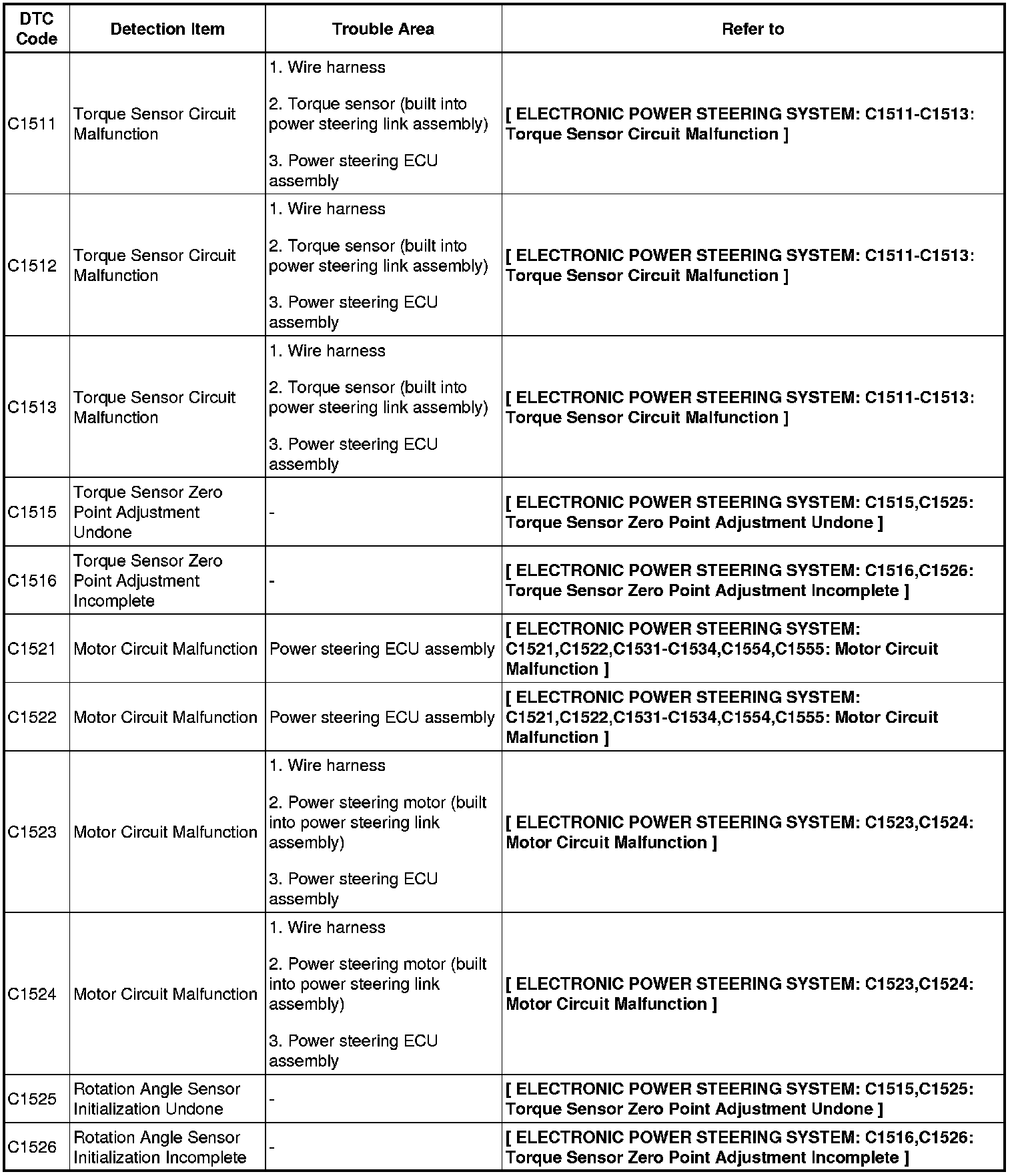

C1511 - C1526:

C1532 - C1581 / U0073 - U0100:

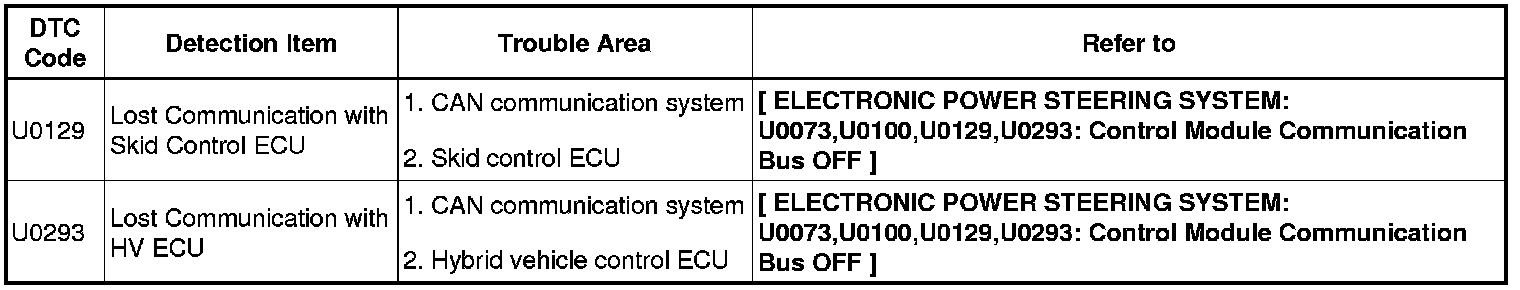

U0129 - U0293:
