Engine Control System - SFI System

2AZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: Parameters listed in the chart may be different than your readings depending on the type of instruments and other factors.
If any DTCs are displayed during a check mode DTC check, check the circuits for the DTCs listed in the table below.

SFI SYSTEM:

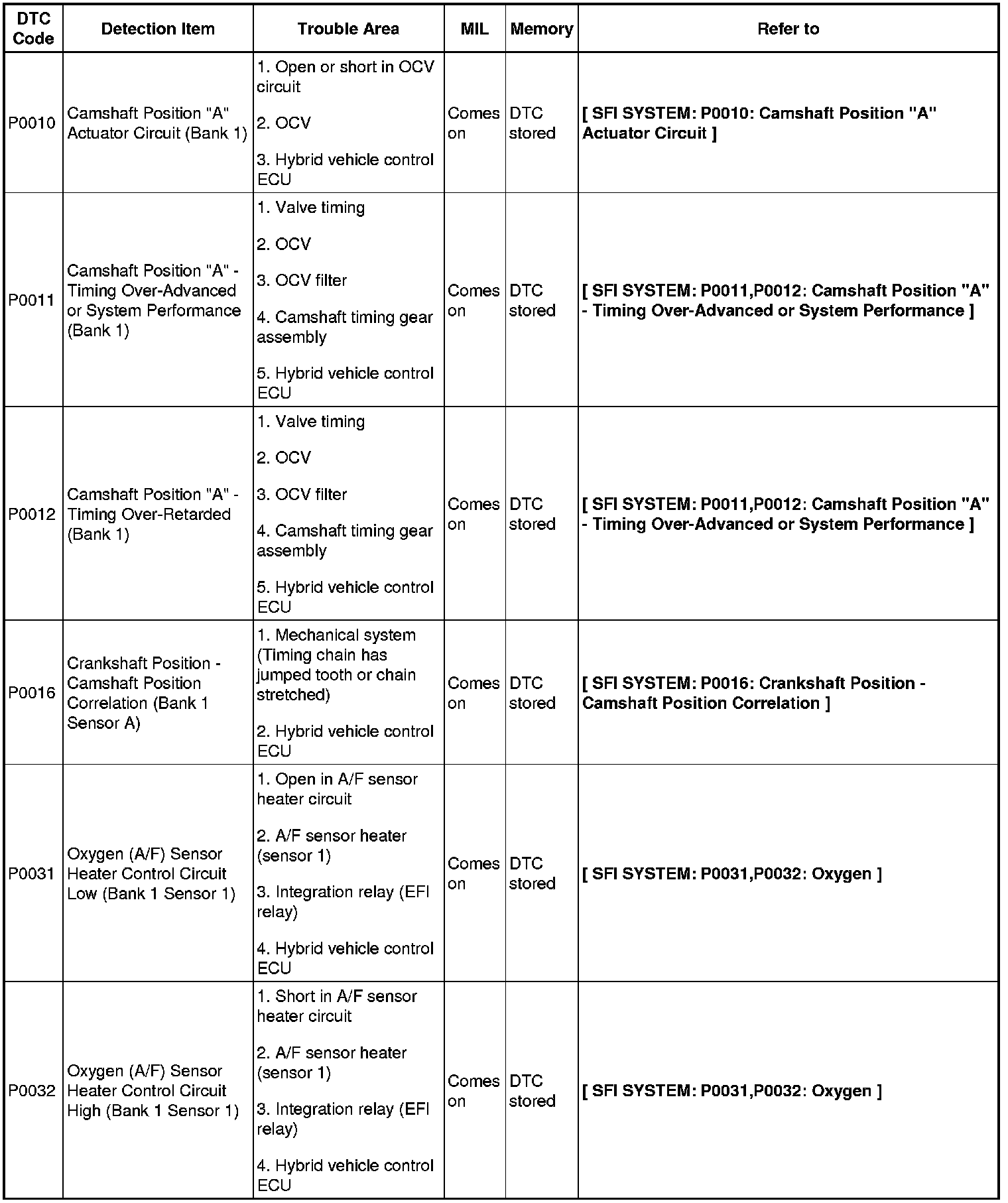

P0010 - P0032:

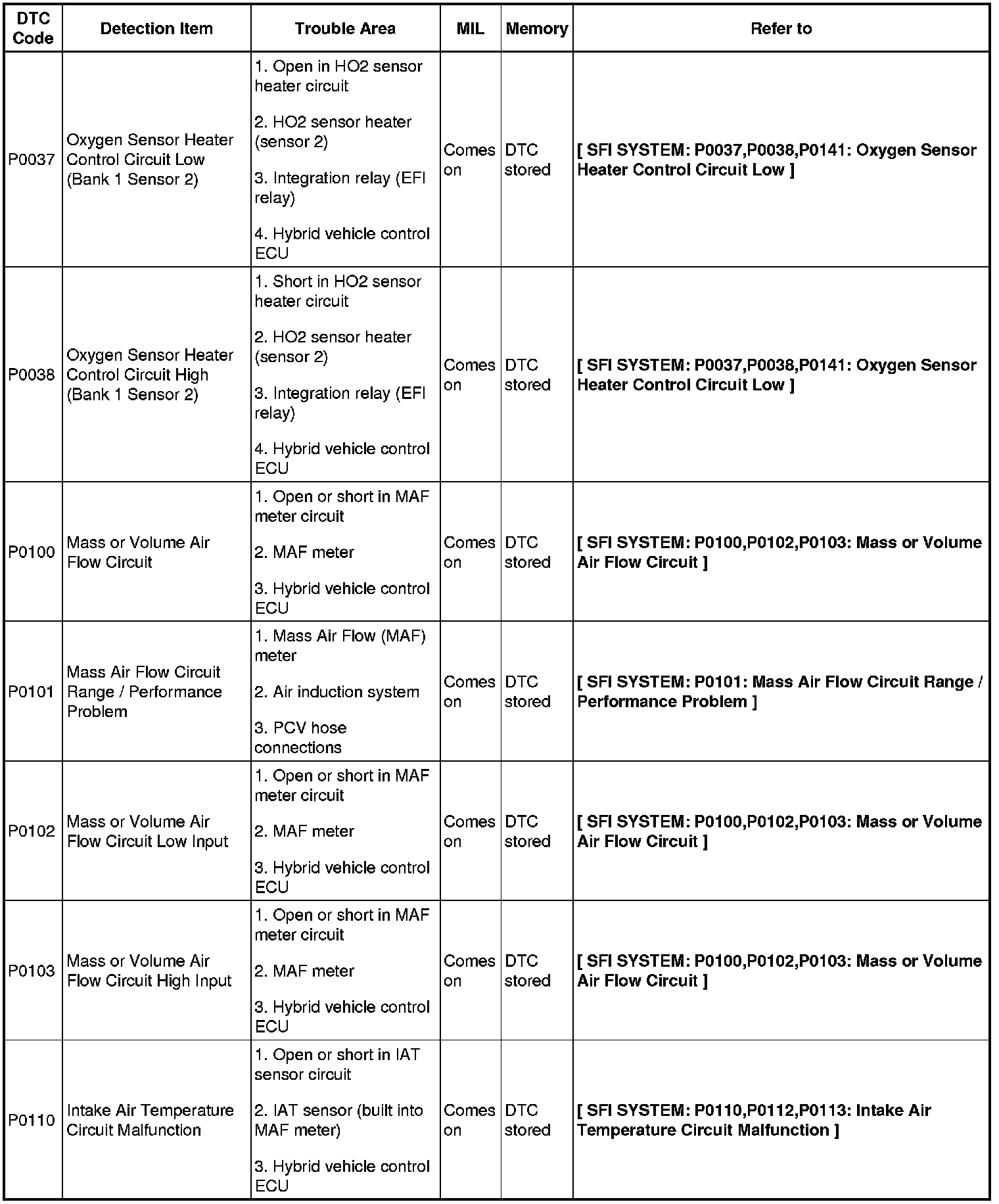

P0037 - P0110:

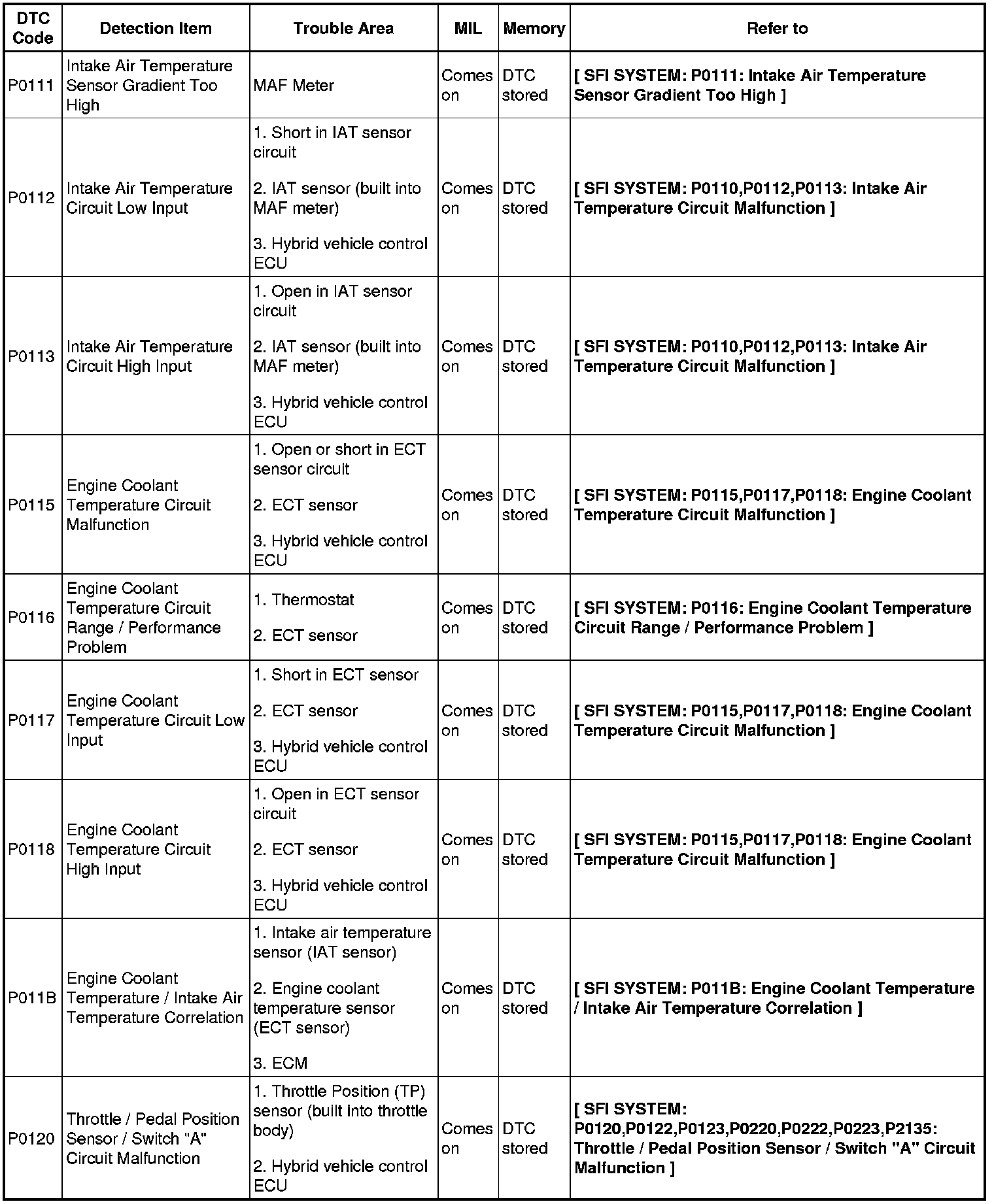

P0111 - P0120:

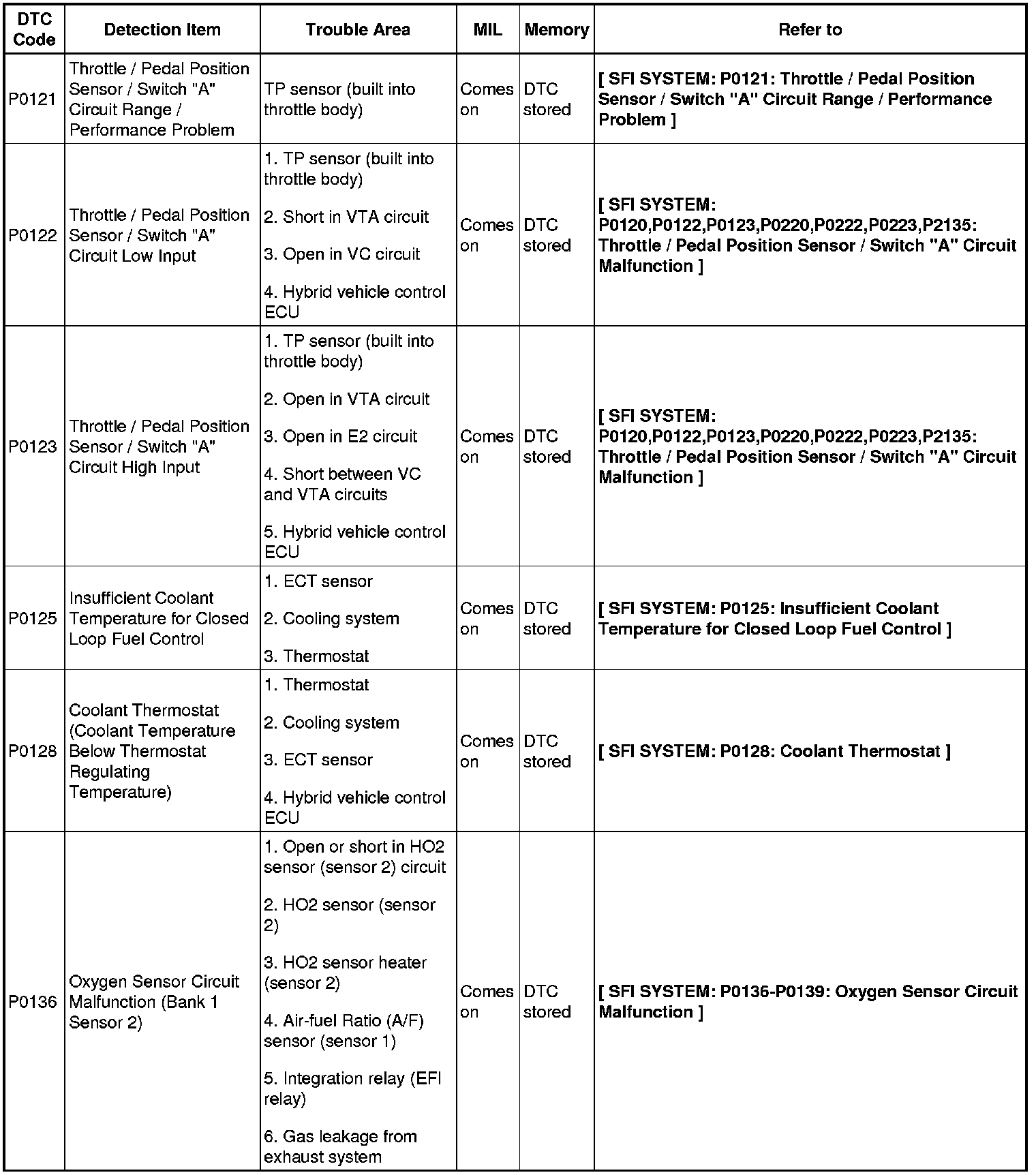

P0121 - P0136:

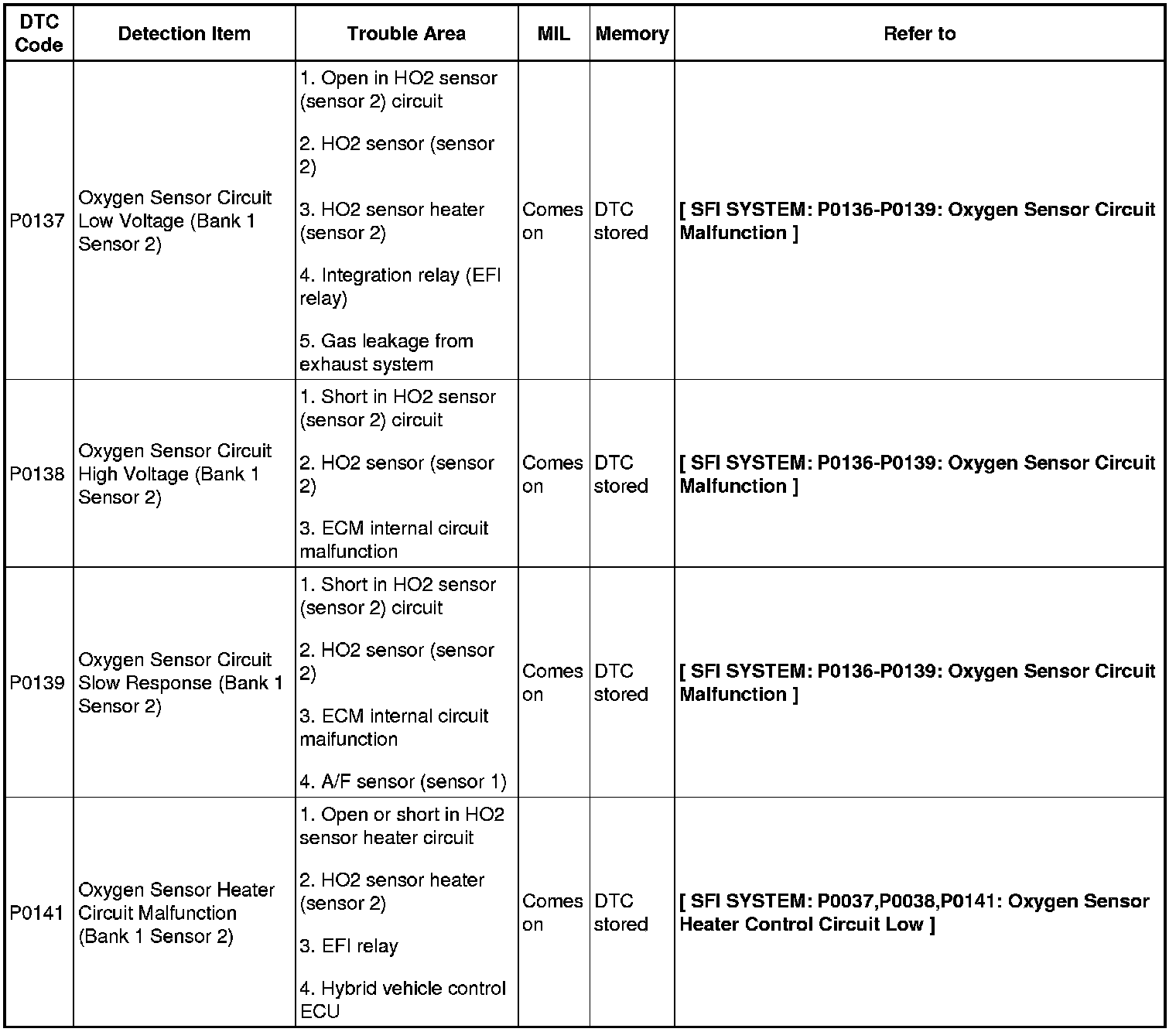

P0137 - P0141:

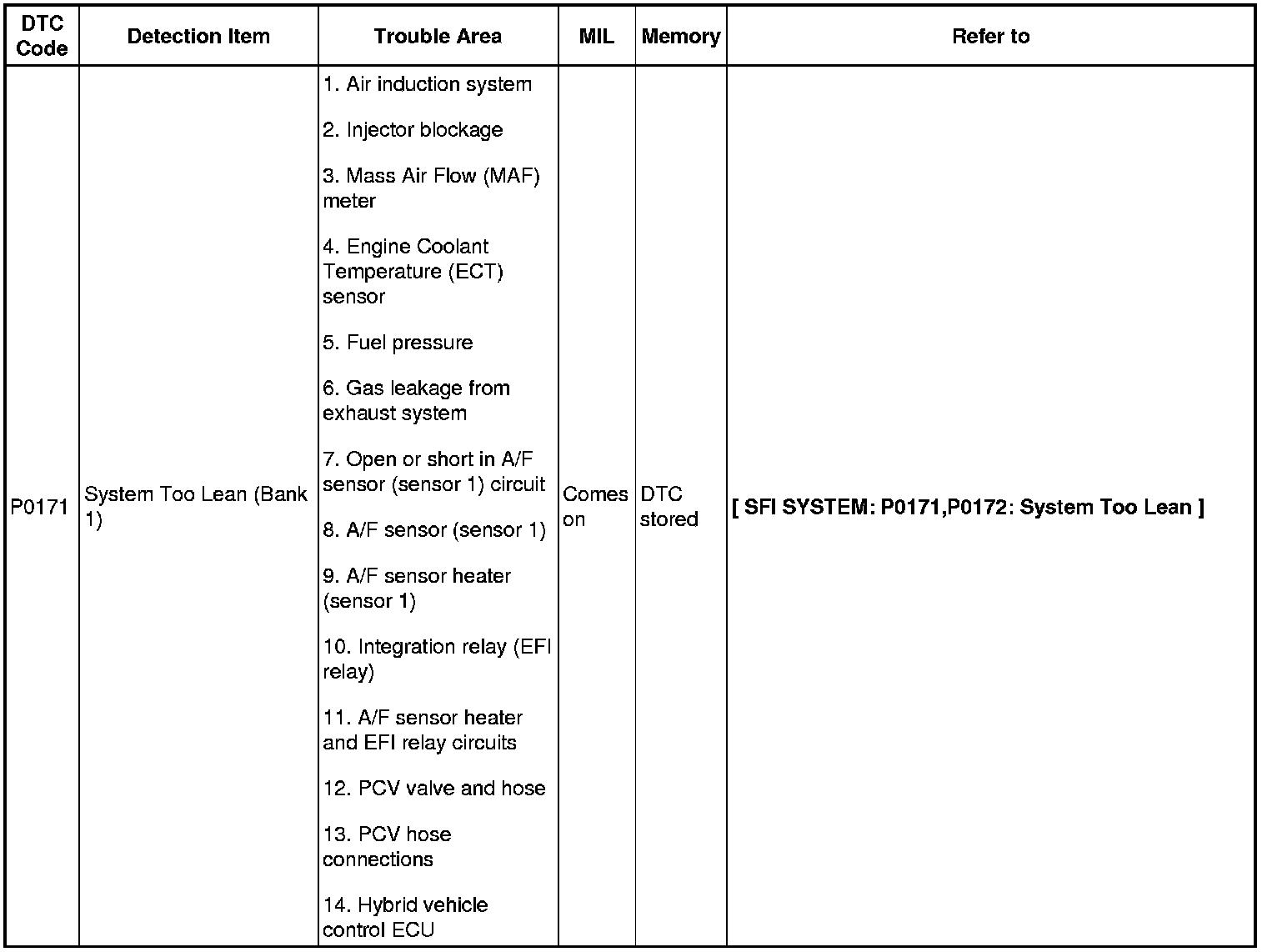

P0171:

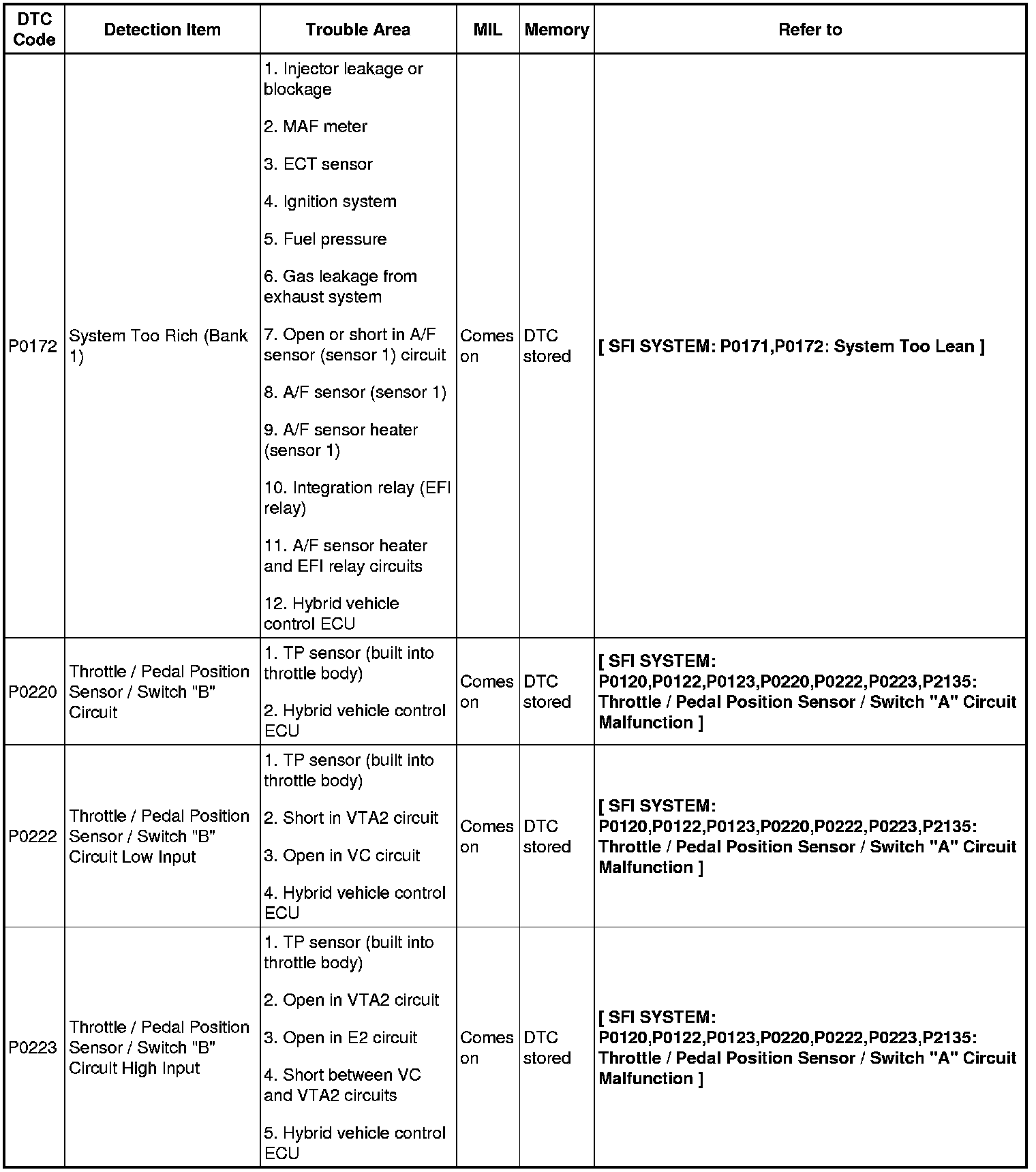

P0172 - P0223:

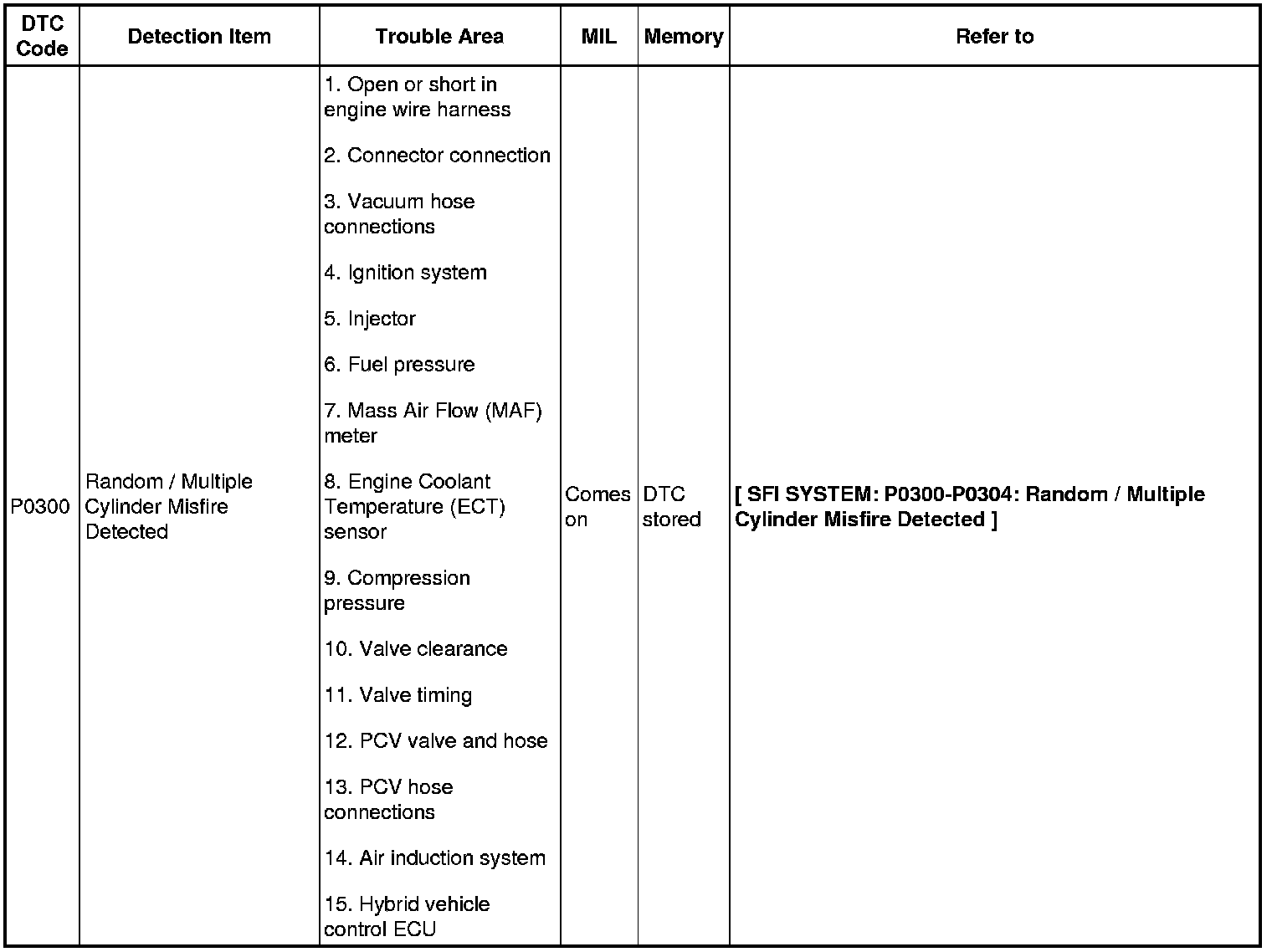

P0300:

P0301:

P0302:

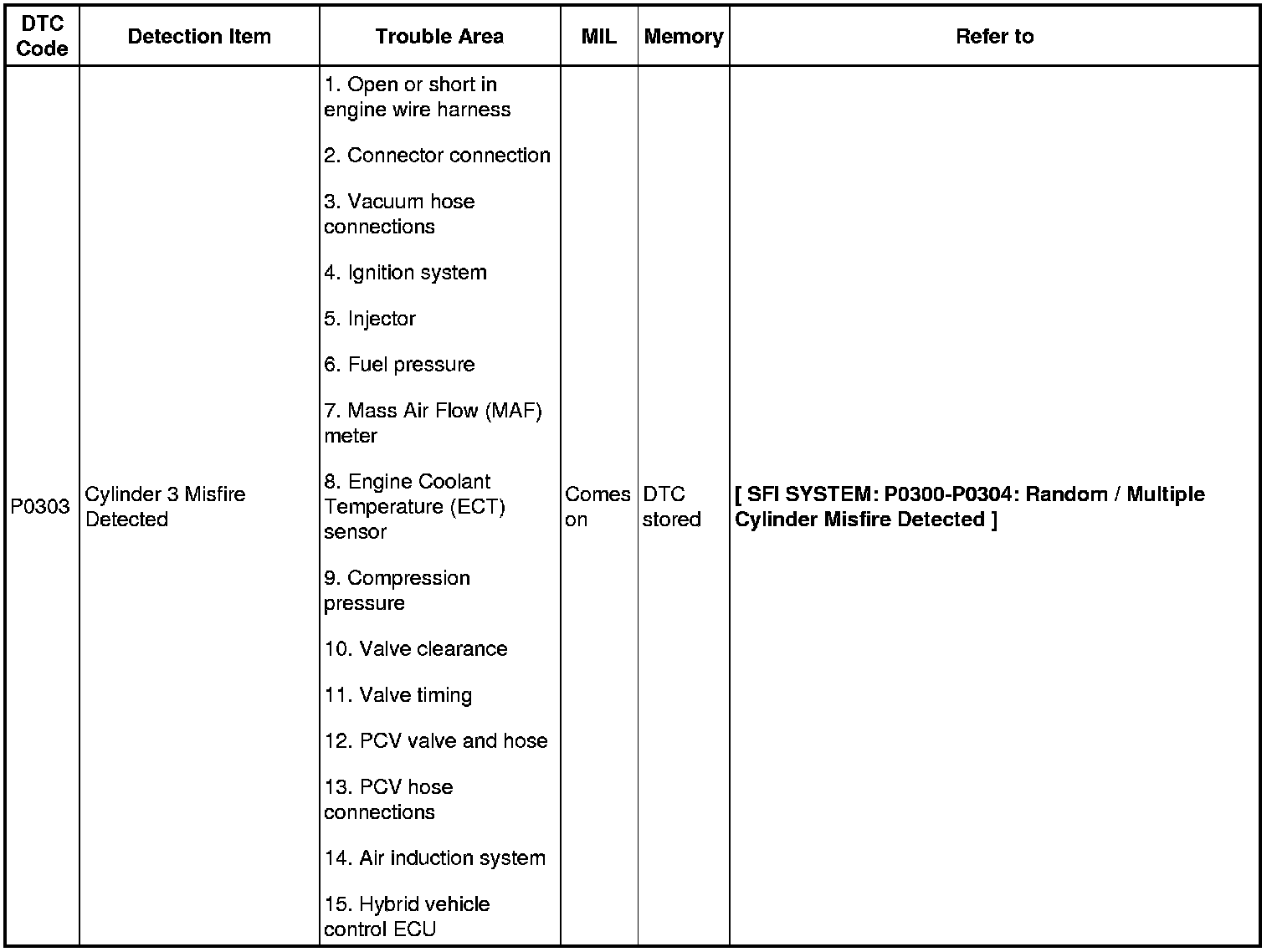

P0303:

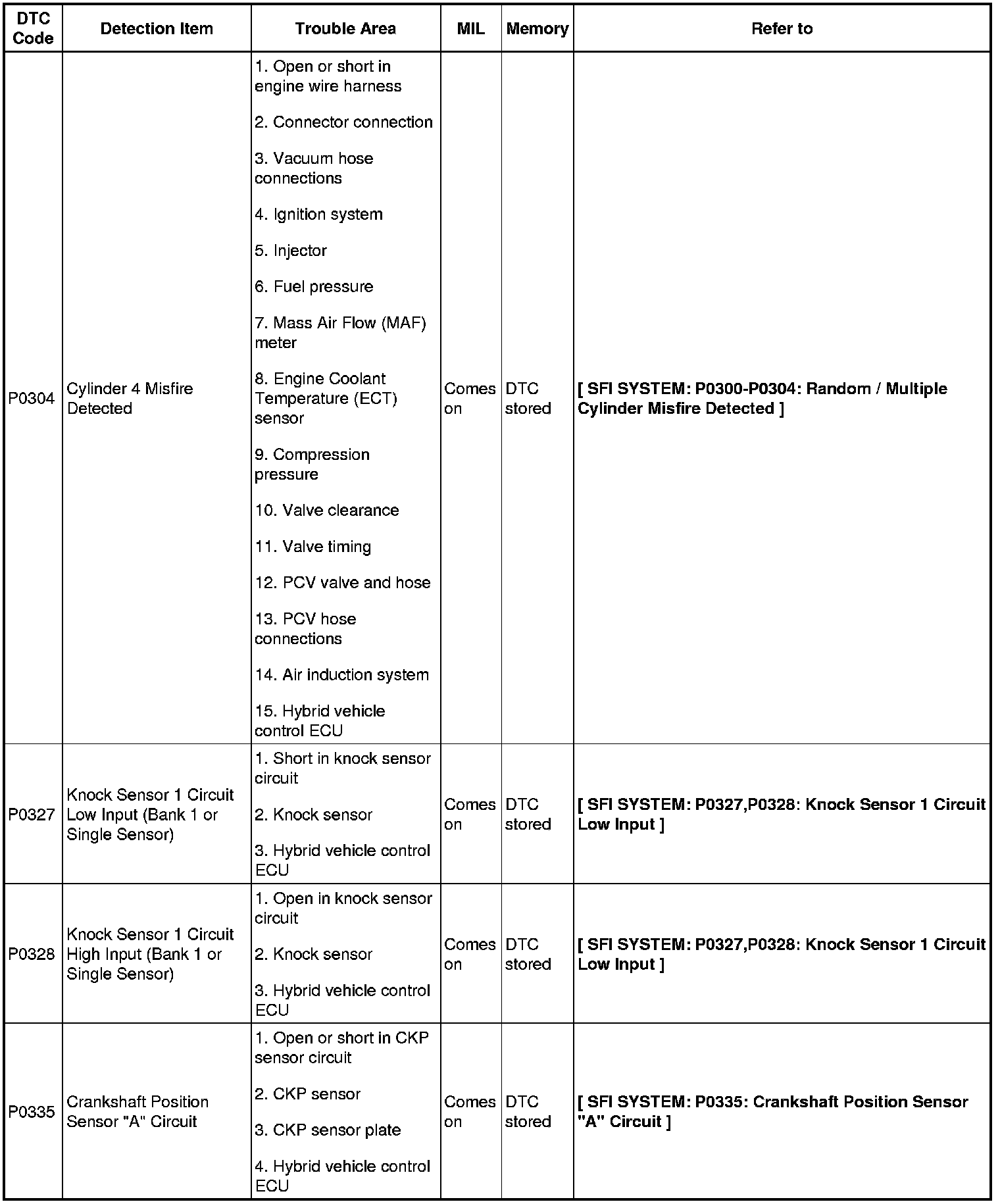

P0304 - P0335:

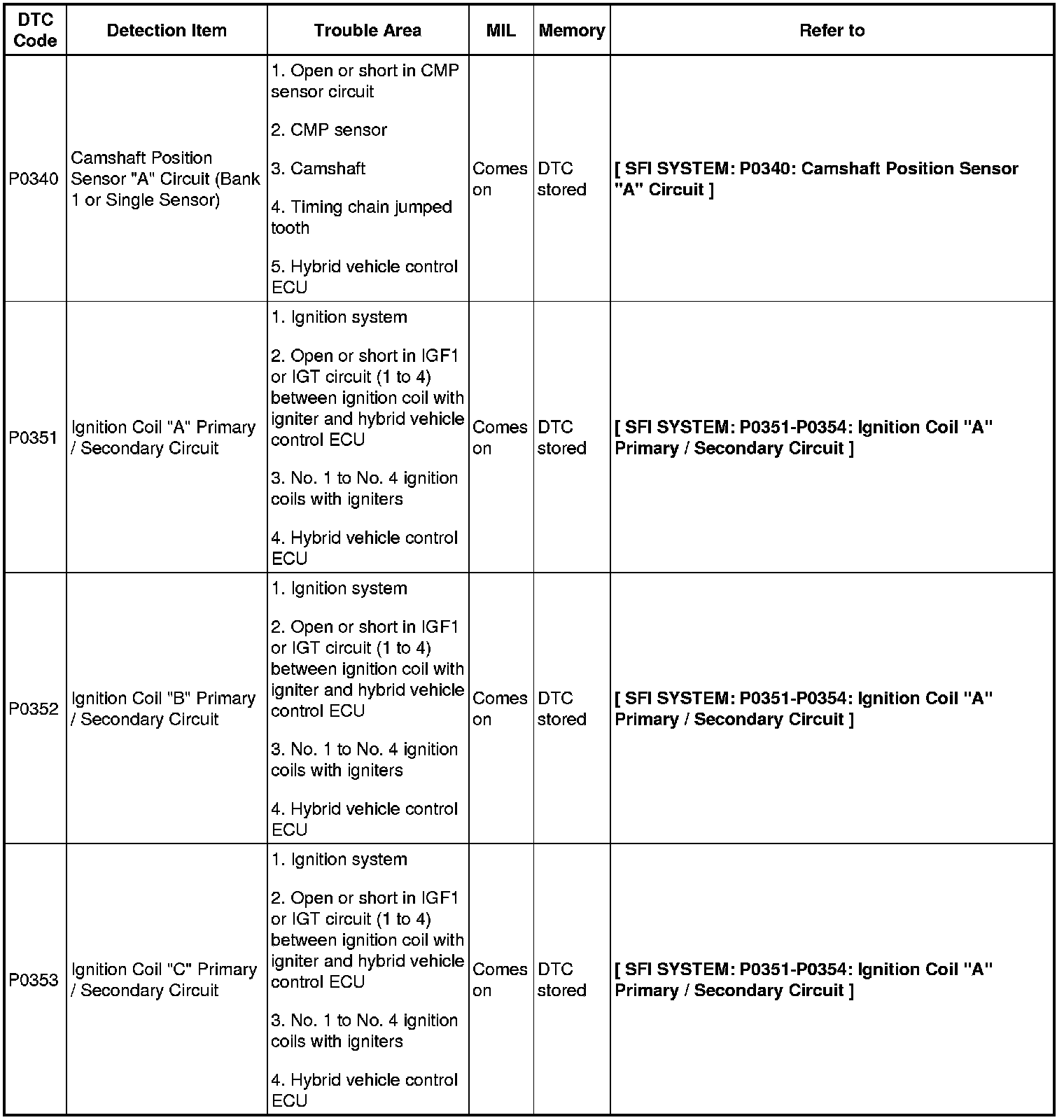

P0340 - P0353:

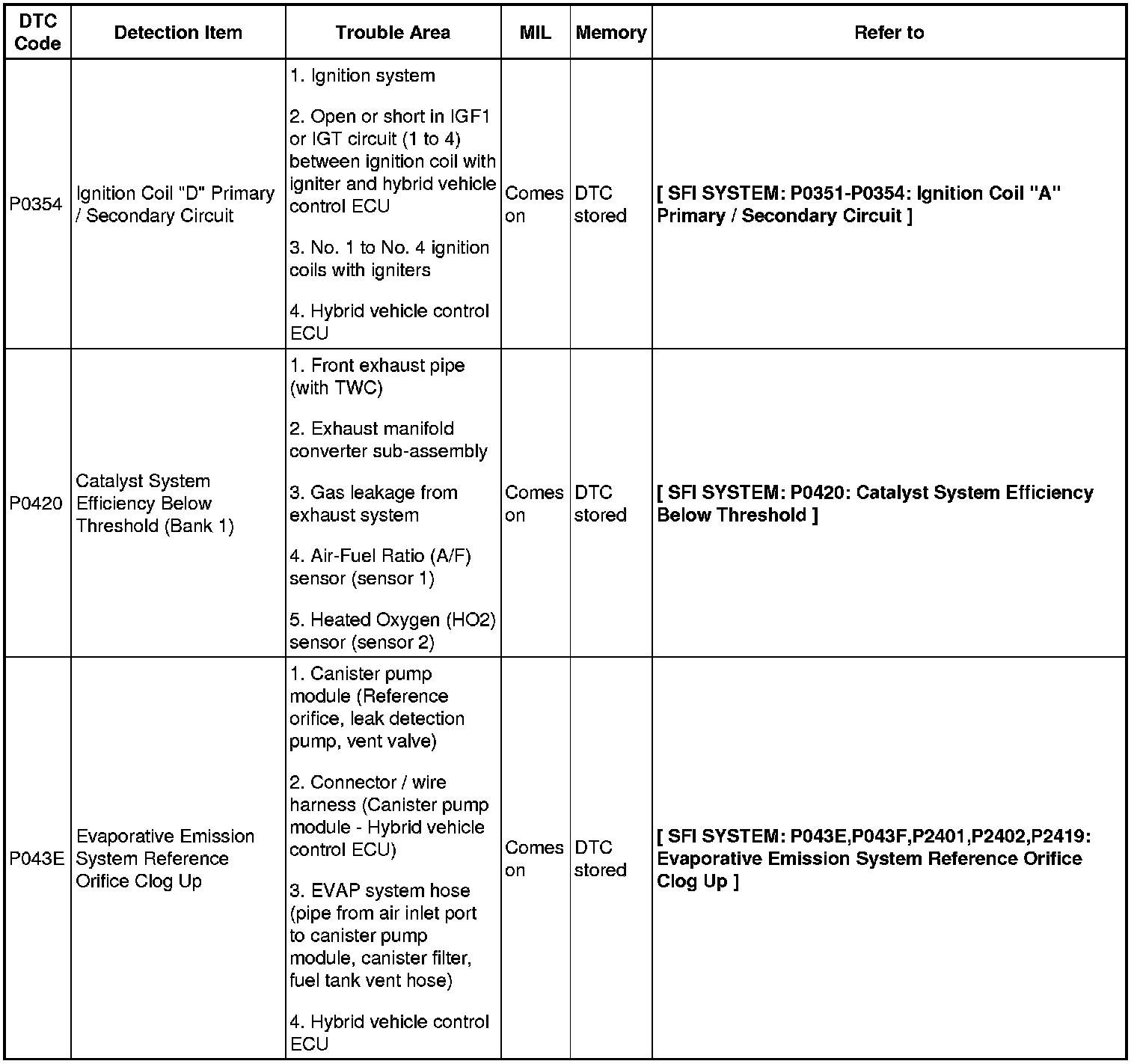

P0354 - P043E:

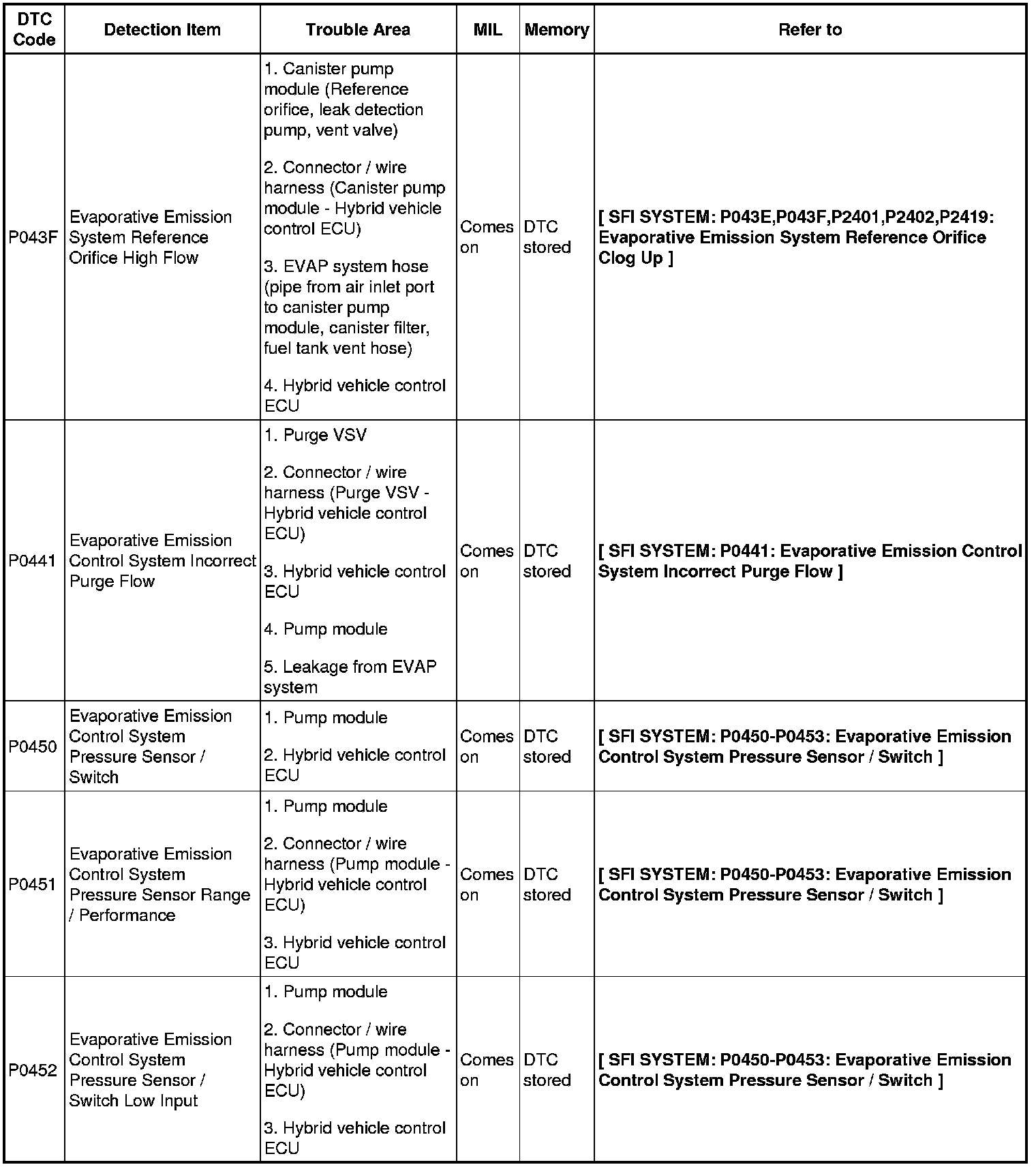

P043F - P0452:

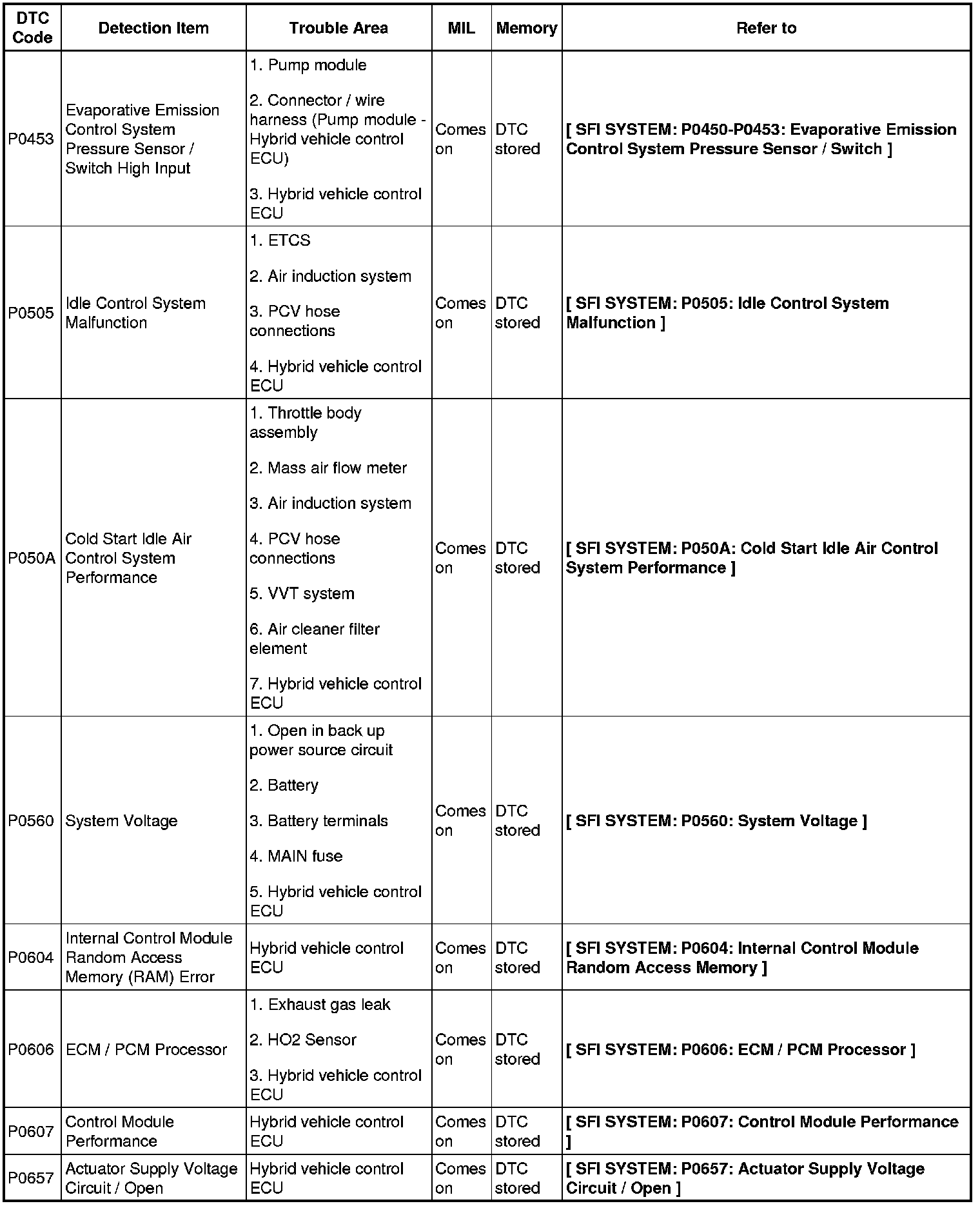

P0453 - P0657:

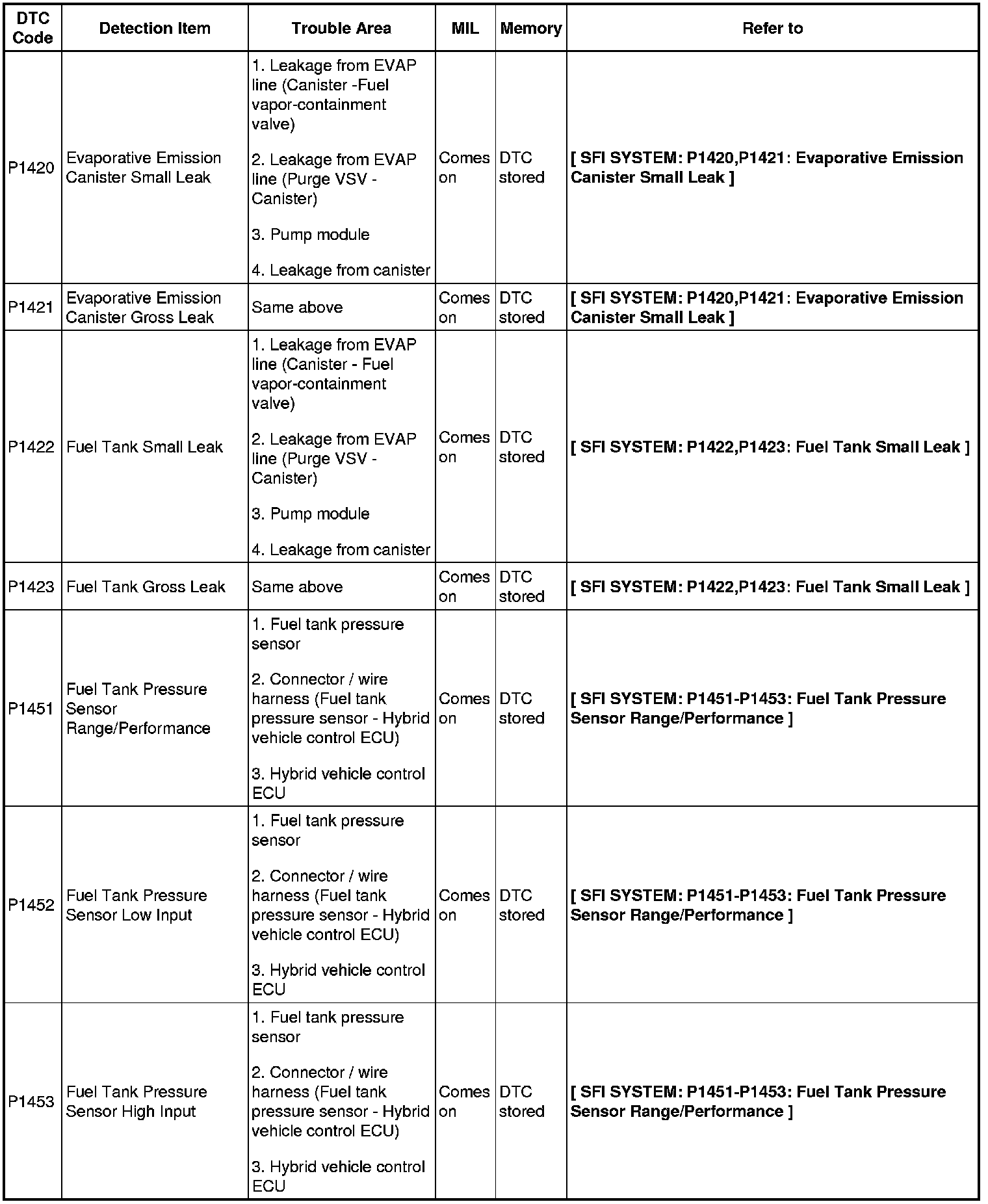

P1420 - P1453:

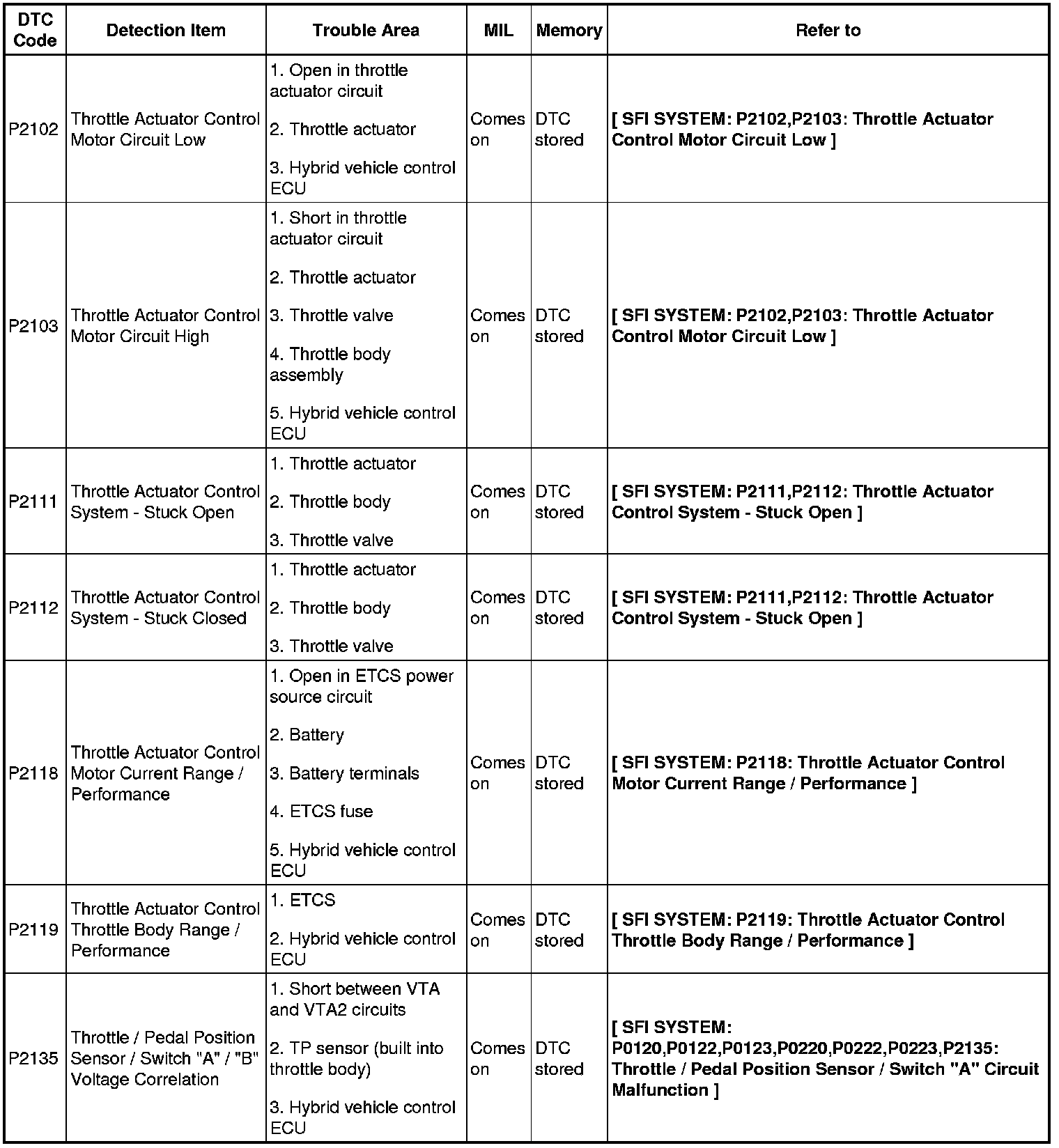

P2102 - P2135:

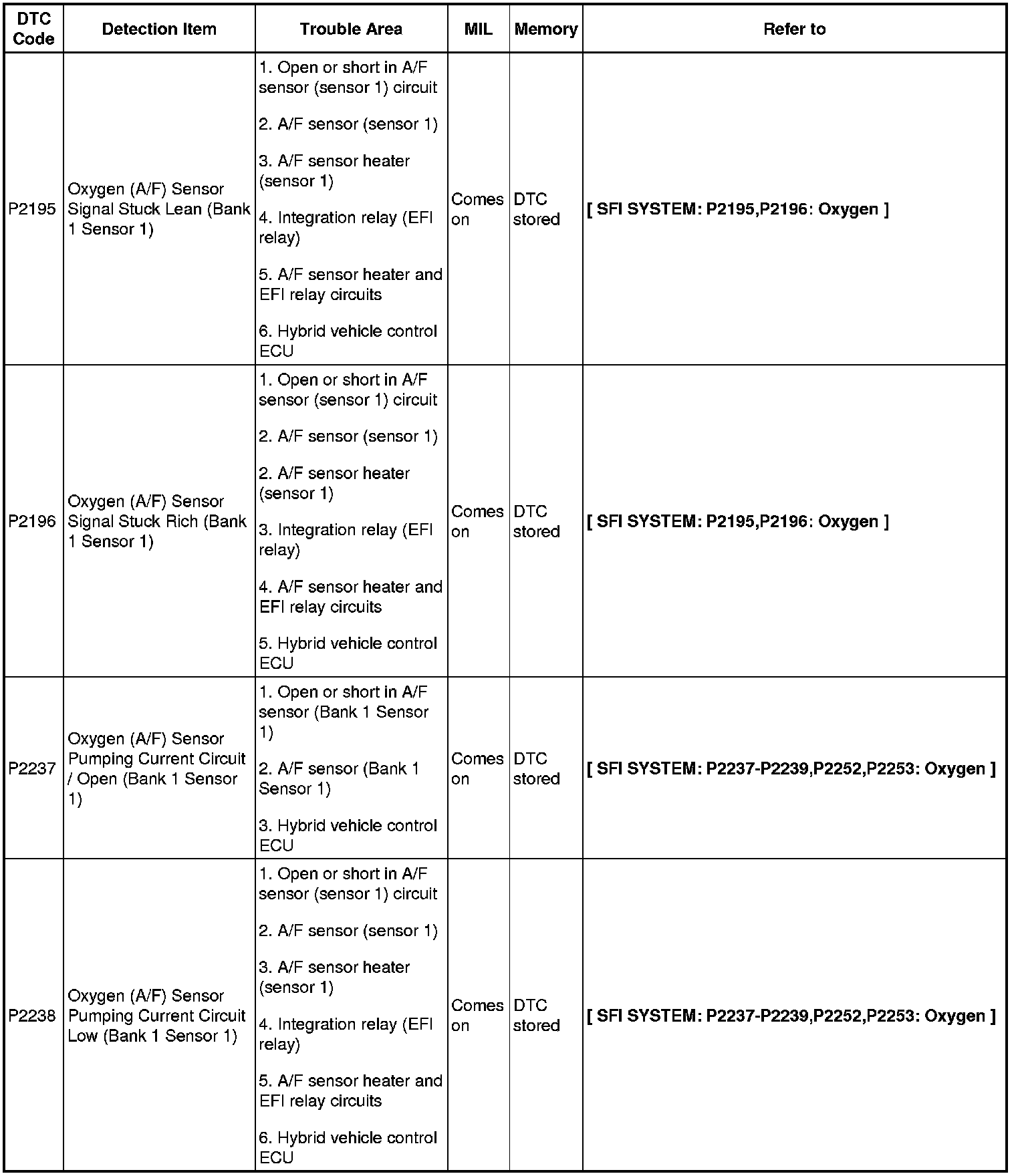

P2195 - P2238:

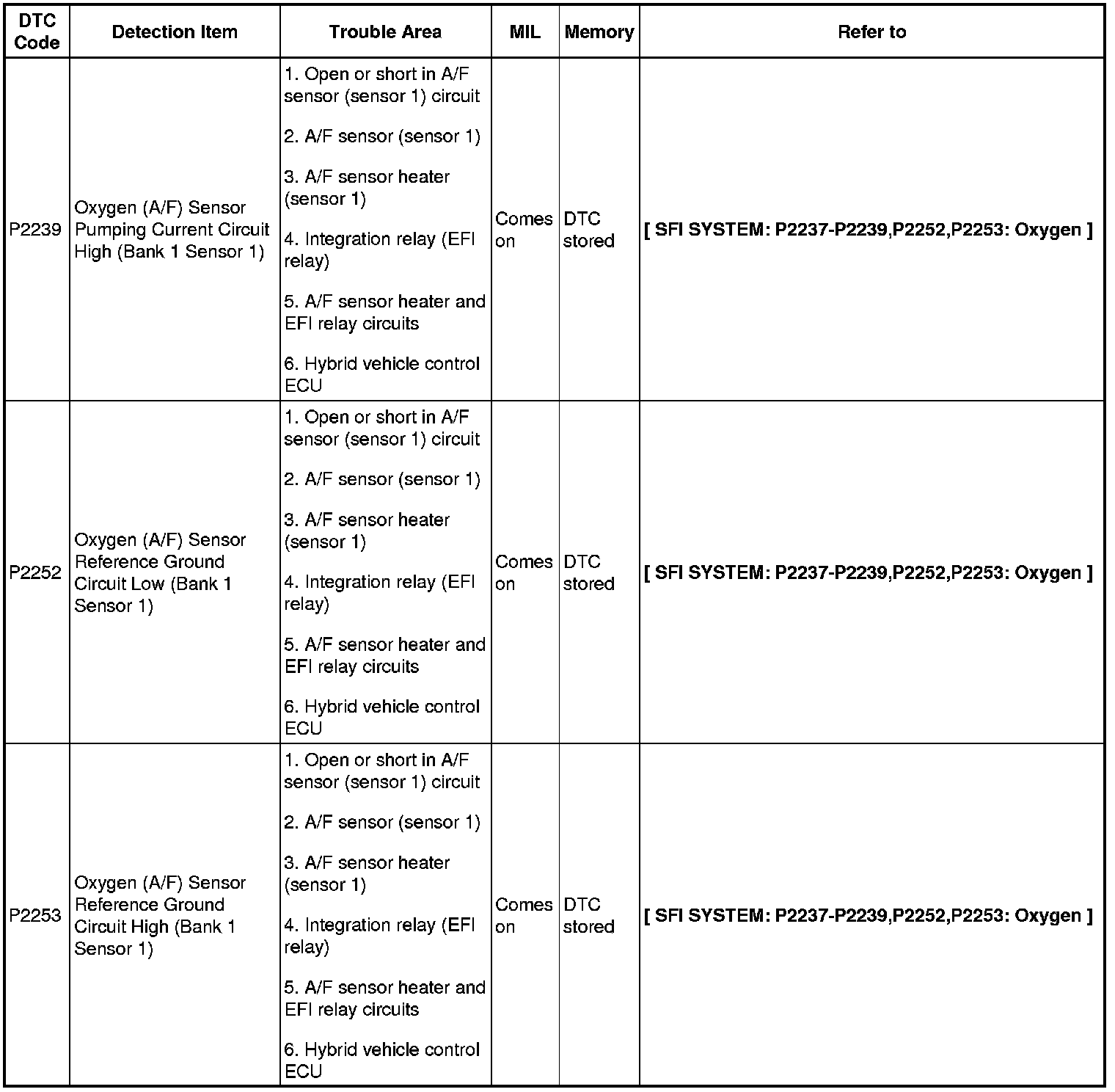

P2239 - P2253:

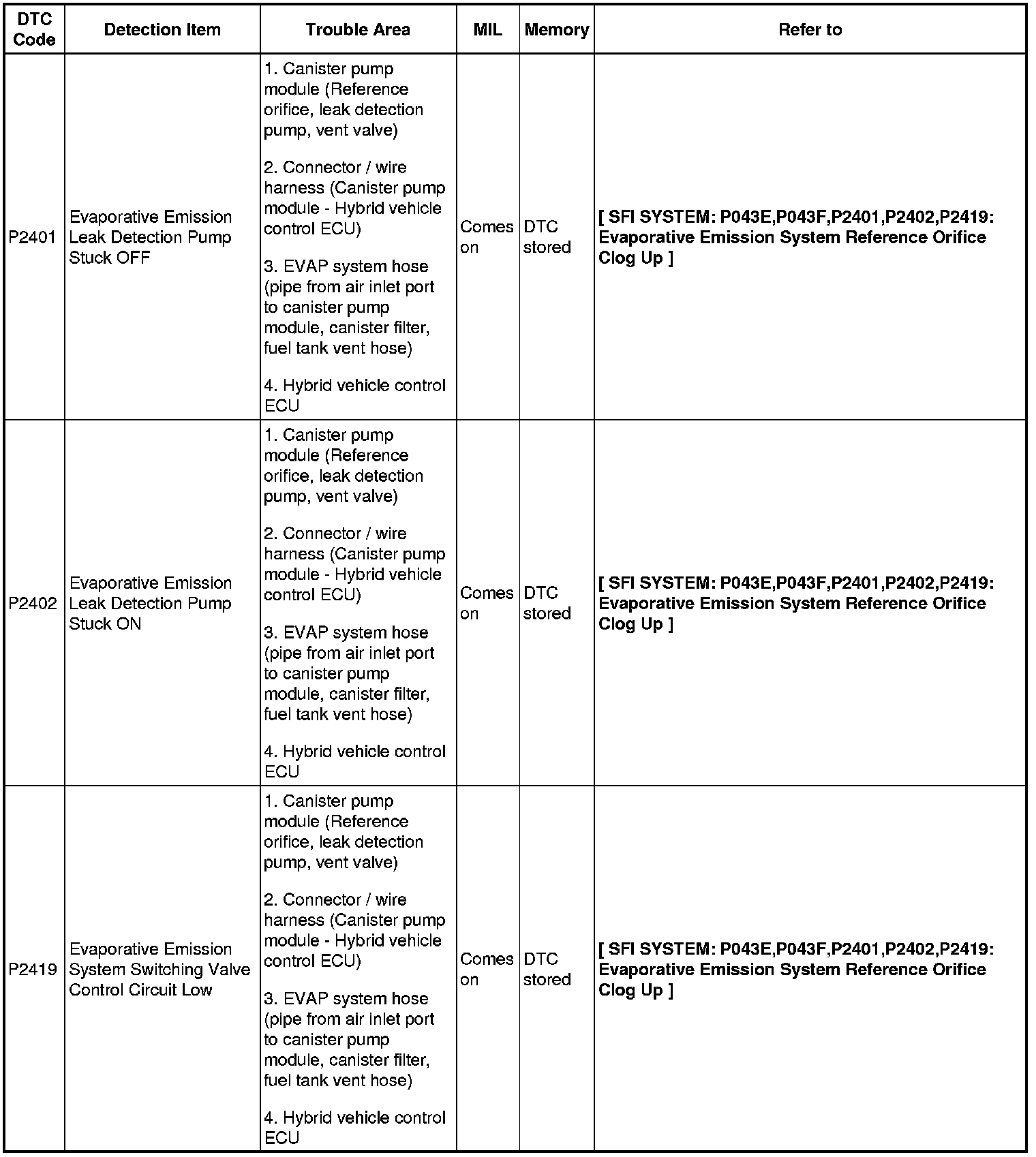

P2401 - P2419:

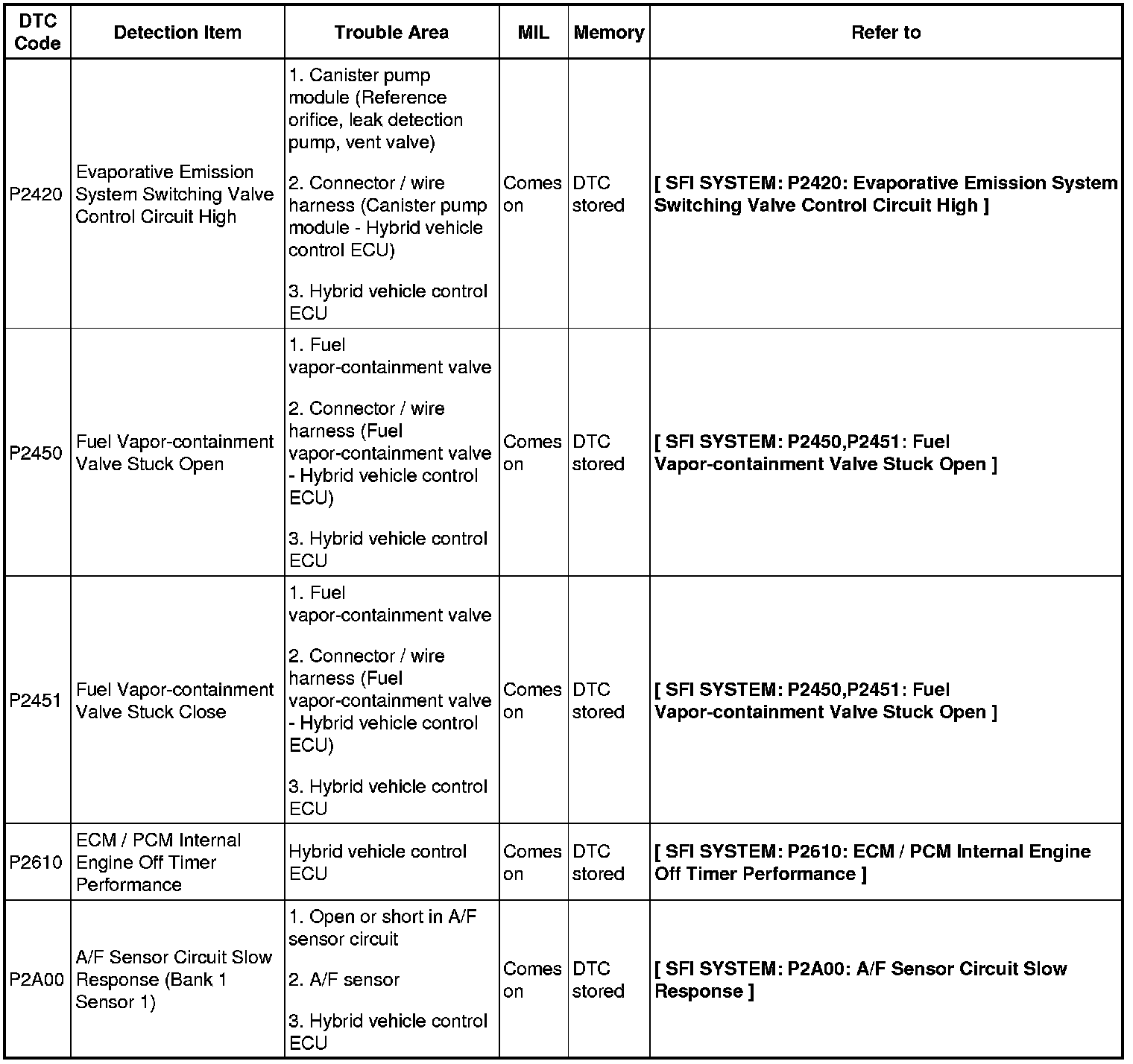

P2420 - P2A00:

P3190 - P3193 / U0001 - U0293:
