Hybrid Battery System



HYBRID BATTERY CONTROL: HYBRID BATTERY SYSTEM:

DIAGNOSTIC TROUBLE CODE CHART

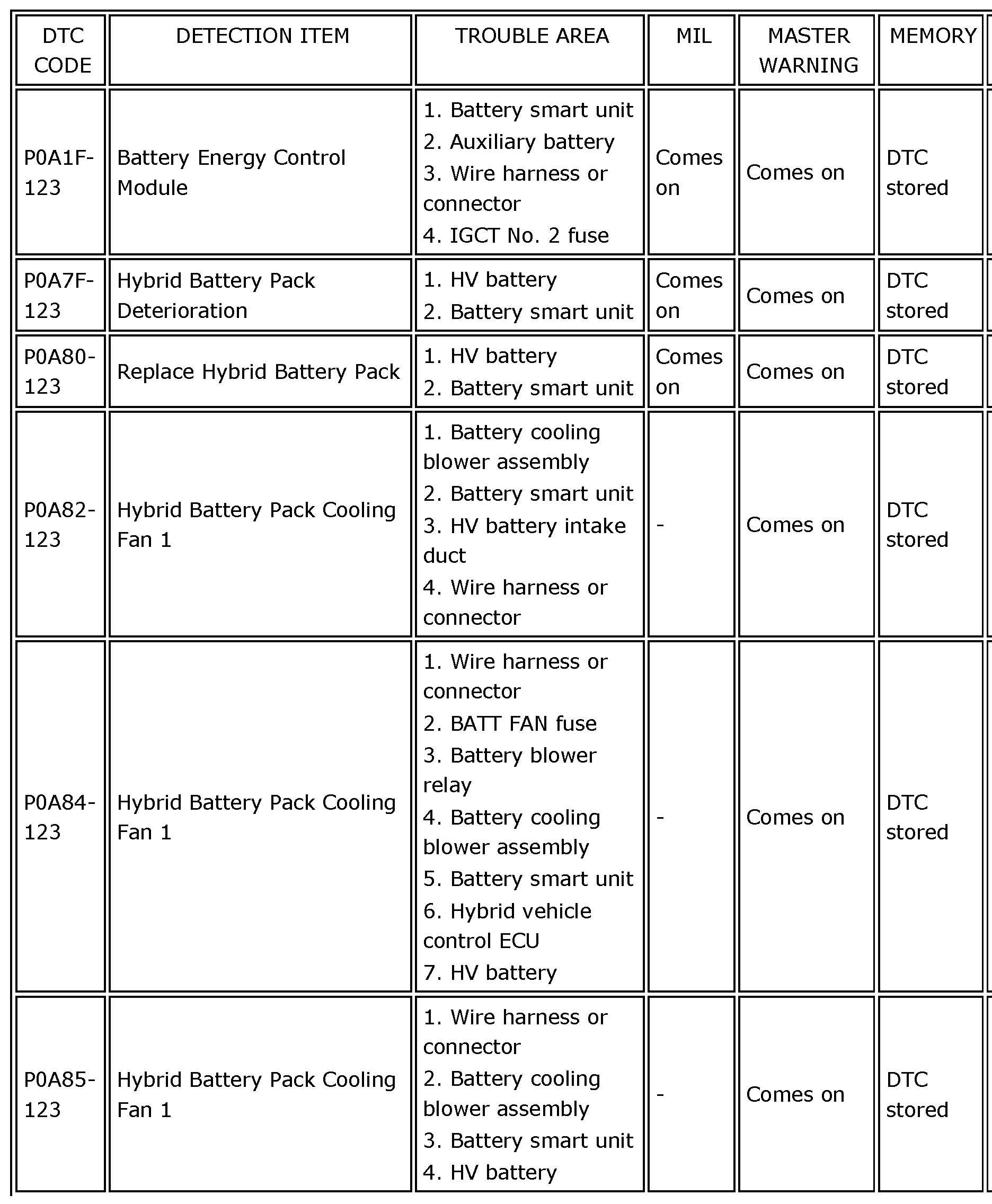

P0A1F-123 - P0A85-123:

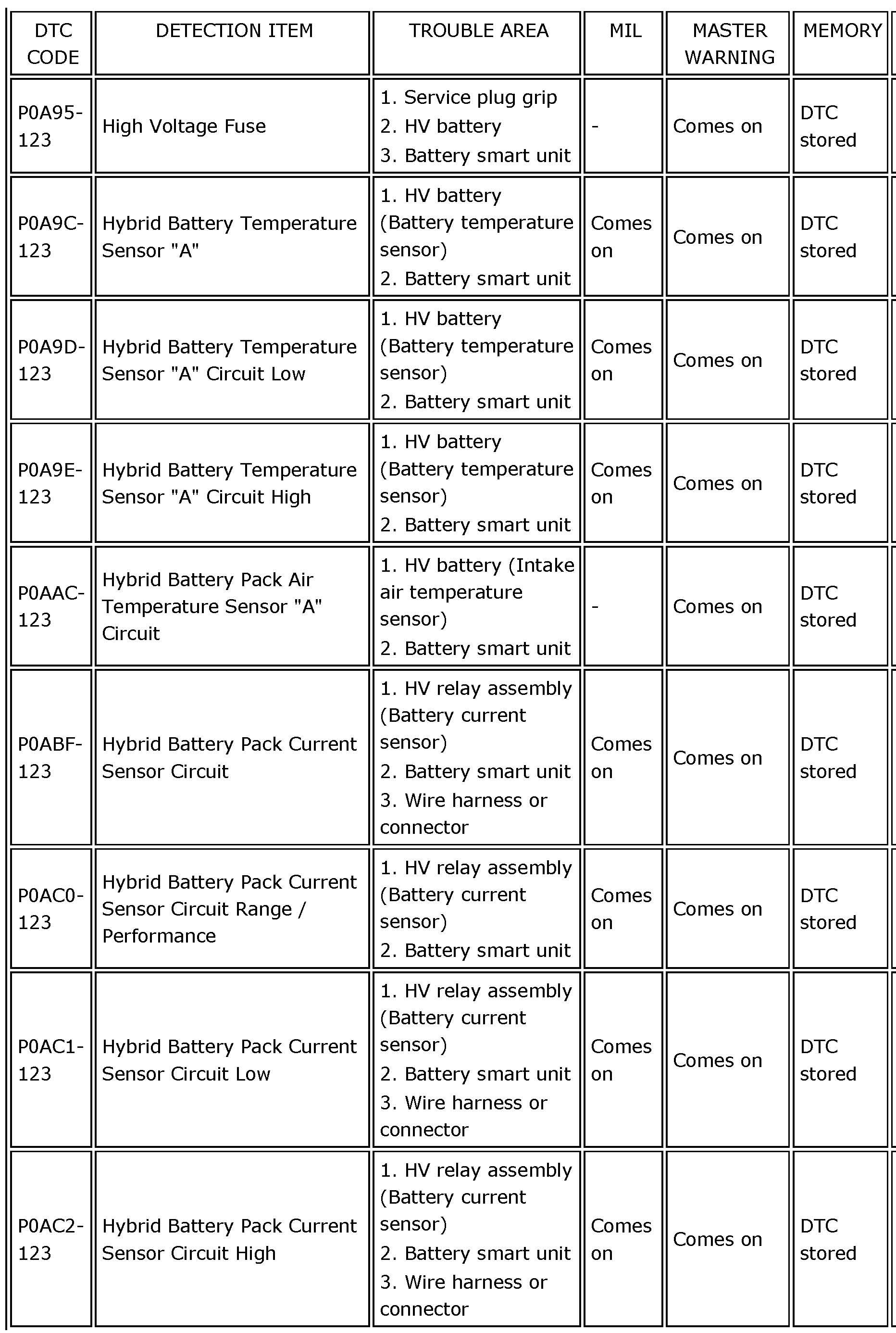

P0A95-123 - P0AC2-123:

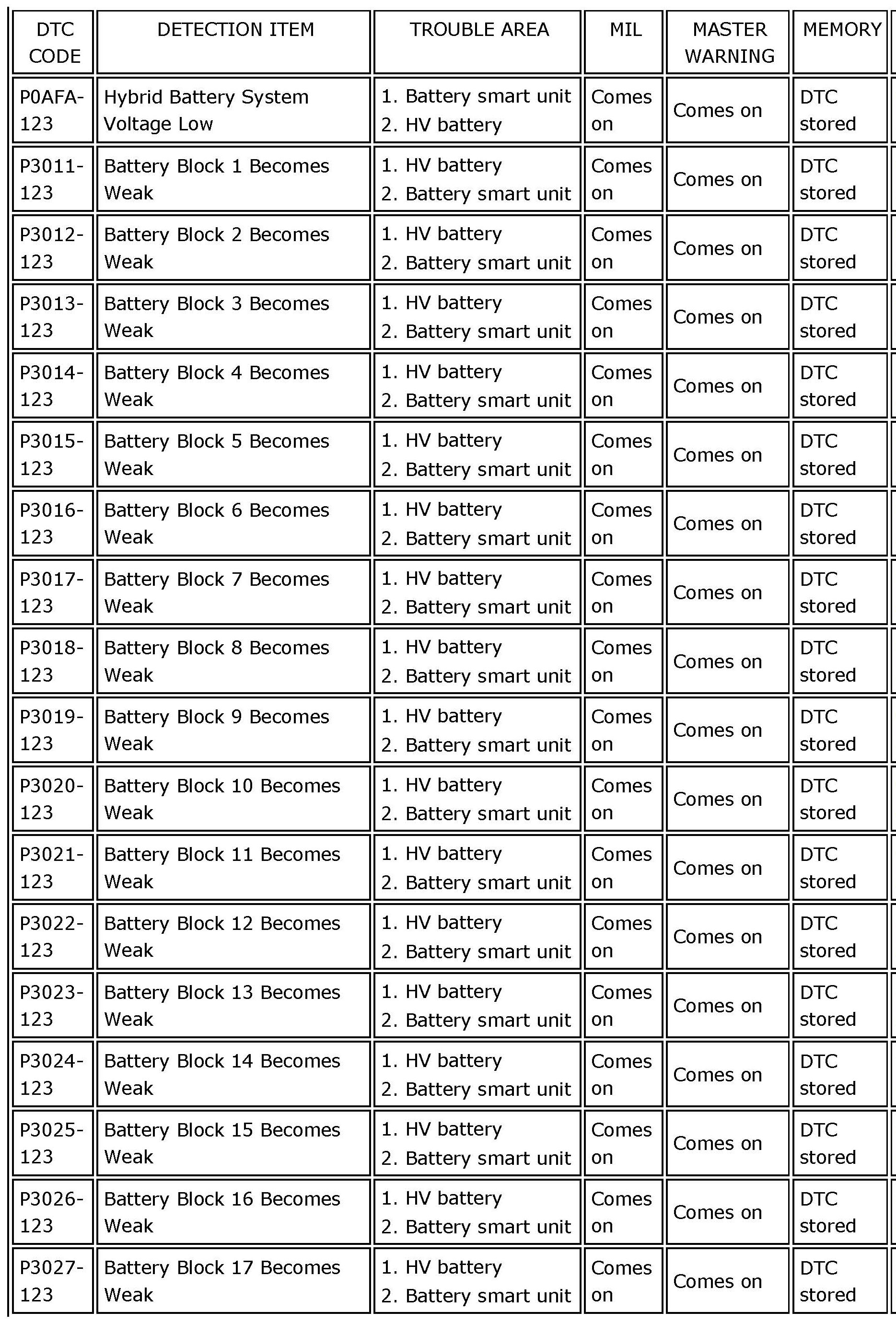

P0AFA-123 - P3027-123:

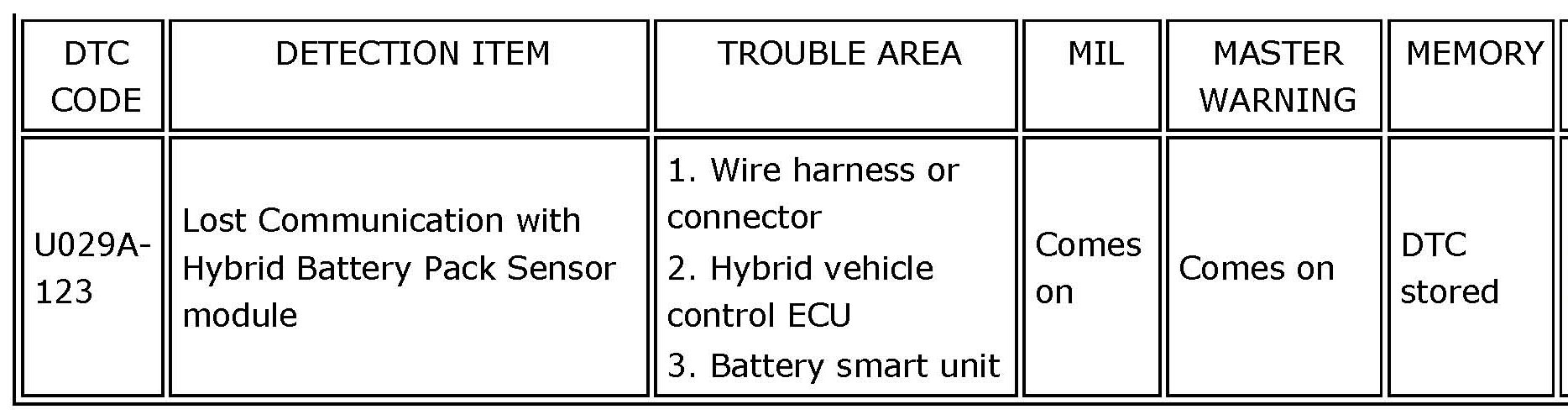

U029A-123:
