Occupant Classification System








SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: When DTC B1650/32 is detected as a result of troubleshooting for the Airbag System, perform troubleshooting for the Occupant Classification System as shown in the chart below.

OCCUPANT CLASSIFICATION SYSTEM:

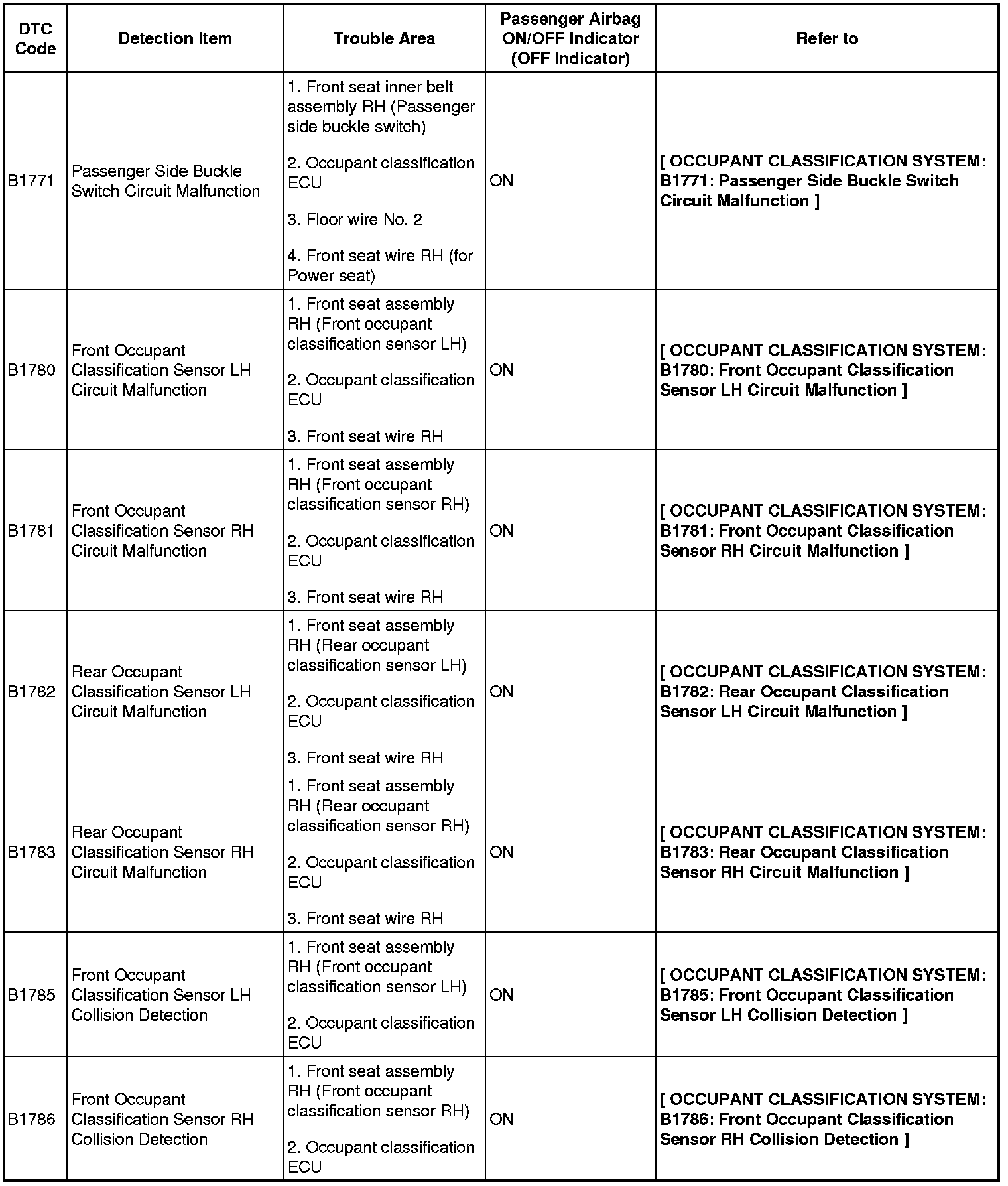

B1771 - B1786:

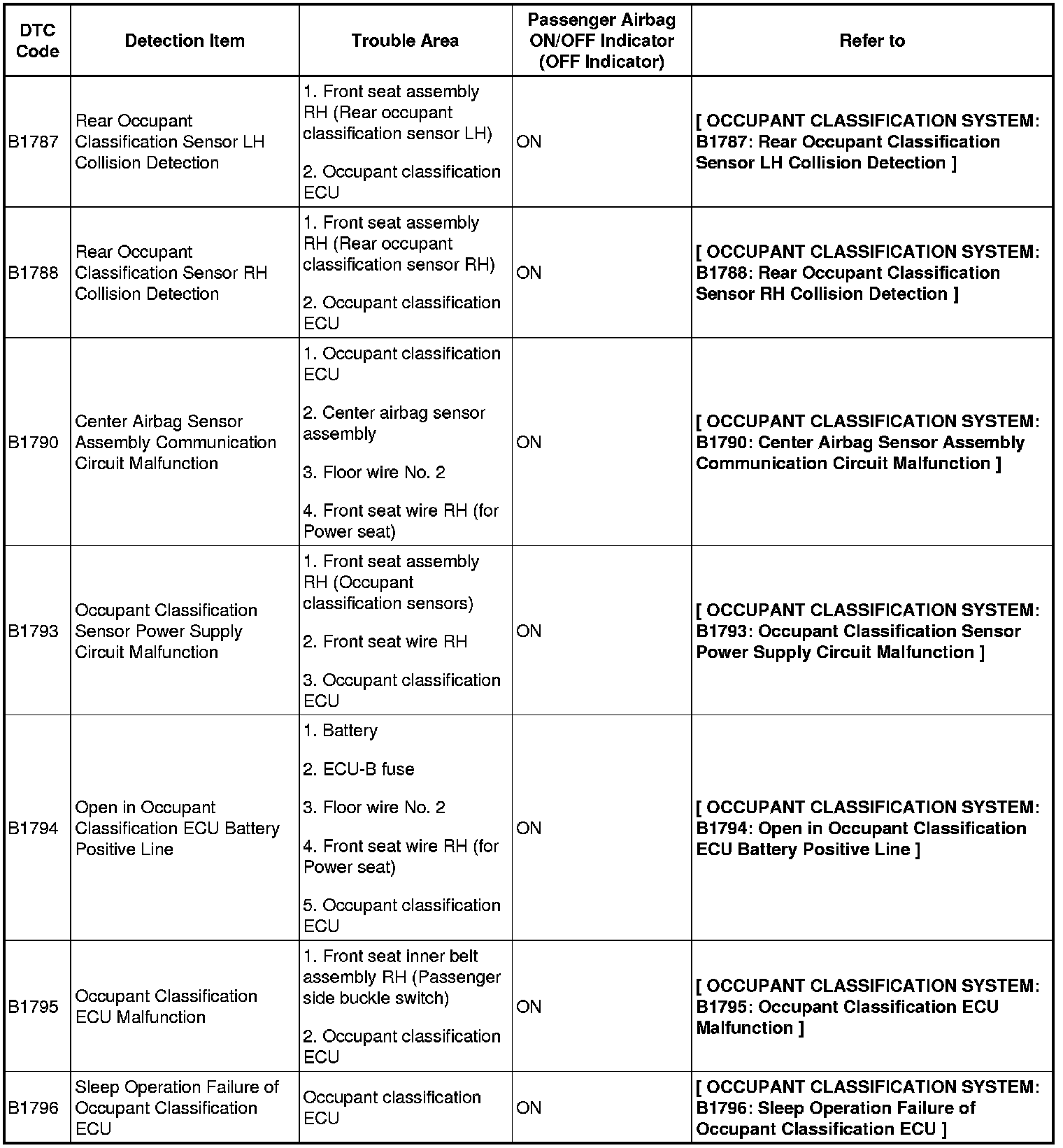

B1787 - B1796:
