SFI System

2AZ-FXE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0607: Control Module Performance

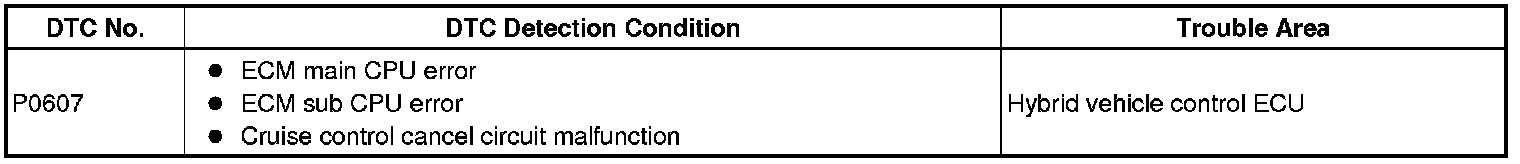

DTC P0607 - Control Module Performance

DESCRIPTION

The ECM (included in hybrid vehicle control ECU) continuously monitors its main and sub CPUs. This self-check ensures that the ECM is functioning properly. If outputs from the CPUs are different and deviate from the standards, the ECM will illuminate the MIL and set a DTC immediately.
The ECM also monitors the cruise control cancel circuit. If this circuit malfunctions, the ECM will set a DTC immediately (MIL is not illuminated).





NOTICE: First check for an exhaust gas leak around the HO2S if P0606 is present. An exhaust gas leak generates noise in the HO2S output. The ECM may interpret this as an HO2S transistor malfunction.

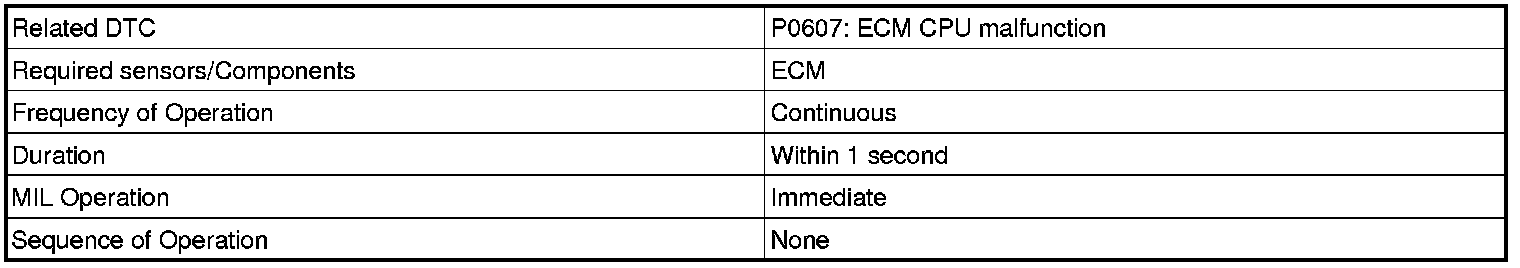

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE

PROCEDURE

1. CHECK WHETHER DTC OUTPUT RECURS (IN ADDITION TO DTC P0607)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Turn the tester on.
(d) Clear the DTC.
(e) Turn the power switch off.
(f) Disconnect the auxiliary battery negative terminal and wait for 1 minute.
(g) Connect the auxiliary battery negative terminal.
(h) Turn the power switch on (IG).
(i) Enter the following menus: Powertrain / Engine / Trouble Code.
(j) Read the DTCs.

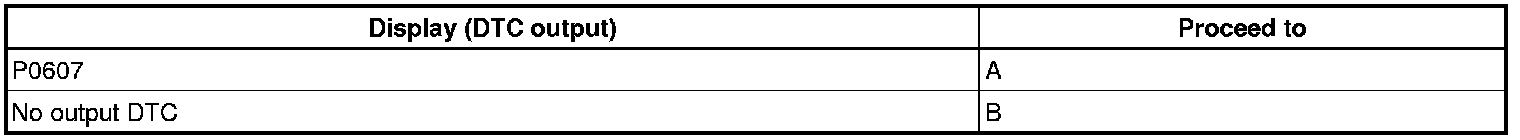

Result:






B -- CHECK FOR INTERMITTENT PROBLEMS
A -- REPLACE HYBRID VEHICLE CONTROL ECU
