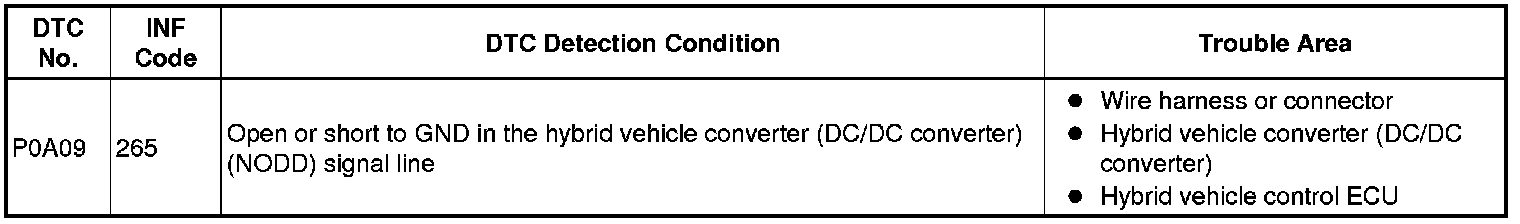

DTC P0A09-265 - DC / DC Converter Status Circuit Low Input

DESCRIPTION

The hybrid vehicle converter (DC/DC converter) converts the DC 244.8 V of the HV battery into DC 12 V in order to supply power to areas such as the vehicle's lighting, audio, and ECU systems. In addition, it charges the auxiliary battery.
A transistor bridge circuit initially converts DC 244.8 V into alternating current, and a transformer lowers its voltage. Then, it is rectified and smoothed (into DC) and converted into DC 12 V.
The hybrid vehicle converter (DC/DC converter) controls the output voltage in order to keep a constant voltage at the terminals of the auxiliary battery.





The hybrid vehicle control ECU uses the NODD signal line to transmit a stop command to the hybrid vehicle converter (DC/DC converter) and receive signals indicating the normal or abnormal condition of the 12 V charging system.
If the vehicle is being driven with an inoperative hybrid vehicle converter (DC/DC converter), the voltage of the auxiliary battery will drop, which will prevent the continued operation of the vehicle. Therefore, the hybrid vehicle control ECU monitors the operation of the hybrid vehicle converter (DC/DC converter) and alerts the driver if it detects a malfunction.






WIRING DIAGRAM






INSPECTION PROCEDURE
CAUTION:
- Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
- After disconnecting the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.
HINT: Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

PROCEDURE

1. CHECK DTC OUTPUT (HV)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
(d) Check if DTCs are output.
Result:
DTC P0AE6-225 is also output.
YES -- GO TO INSPECTION PROCEDURE RELEVANT TO OUTPUT DTC (P0AE6-225)
NO -- Continue to next step.
2. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR) P0343
NG -- CONNECT SECURELY
OK -- Continue to next step.
3. CHECK CONNECTOR CONNECTION CONDITION (BATTERY PACK WIRE CONNECTOR) P0A09
NG -- CONNECT SECURELY
OK -- Continue to next step.
4. CHECK HARNESS AND CONNECTOR (RESISTANCE VALUE OF NODD INSIDE HYBRID VEHICLE CONTROL ECU) P0A08
NG -- CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - BATTERY PACK WIRE CONNECTOR)
OK -- Continue to next step.
5. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONVERTER CONNECTOR) P0A09
NG -- CONNECT SECURELY
OK -- Continue to next step.
6. CHECK HARNESS AND CONNECTOR (BATTERY PACK WIRE CONNECTOR - HYBRID VEHICLE CONVERTER) P0A08
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE HYBRID VEHICLE CONVERTER
7. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - BATTERY PACK WIRE CONNECTOR) P0A08
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE HYBRID VEHICLE CONTROL ECU
