P0A1F-129








P311 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: P0A1F-129: Battery Energy Control Module

DTC P0A1F-129 - Battery Energy Control Module

DESCRIPTION

The battery smart unit (battery energy control module) sends HV battery voltage information to the hybrid vehicle control ECU via serial communication.






MONITOR DESCRIPTION

The hybrid vehicle control ECU calculates the differences among the received HV battery voltage, boost converter voltage, and inverter voltage. If any of the differences exceed prescribed values, the hybrid vehicle control ECU determines that there is a malfunction in a battery smart unit circuit. When the hybrid vehicle control ECU detects a malfunction, it will illuminate the MIL and set a DTC.

MONITOR STRATEGY

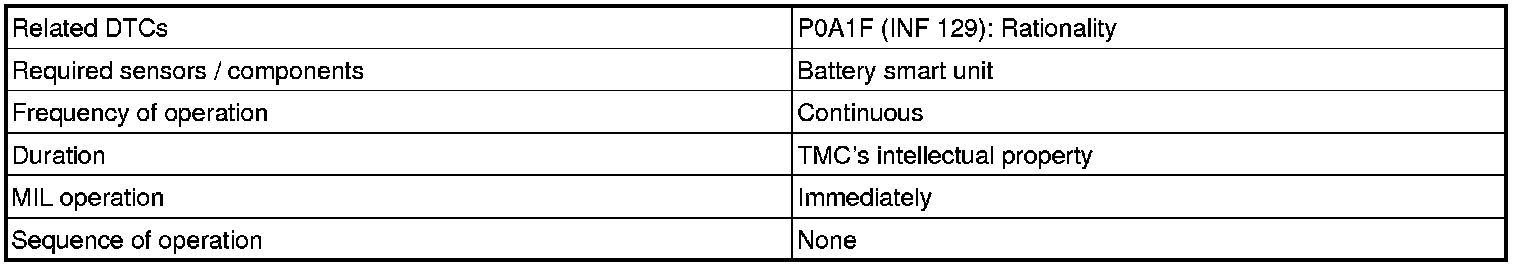

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





INSPECTION PROCEDURE
NOTICE: Performing the check procedures for a long time with the shift lever in the N position may cause DTC P3000-388 to be set.

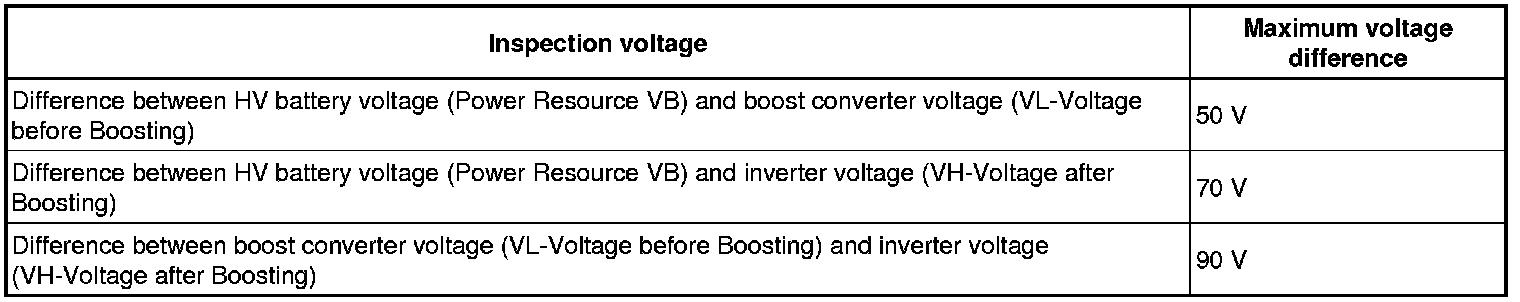

HINT: To determine if conditions are normal, turn the power switch on (READY), move the shift lever to the N position, and check HV battery voltage (Power Resource VB), boost converter voltage (VL-Voltage before Boosting), and inverter voltage (VH-Voltage after Boosting) in the data list. This check should be performed after the battery smart unit is replaced. When the system is normal, the Power Resource VB, VL-Voltage before Boosting, and VH-Voltage after Boosting values should be almost equal (voltage boosting will not occur when the shift lever is in neutral). If the difference between each voltage exceeds the values specified below, there is a malfunction in the battery smart unit.





CAUTION:
- Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
- After disconnecting the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.
HINT: Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

PROCEDURE

1. CHECK DTC OUTPUT (HV)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG).
(c) Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
(d) Check if DTCs are output.
Result:





HINT:

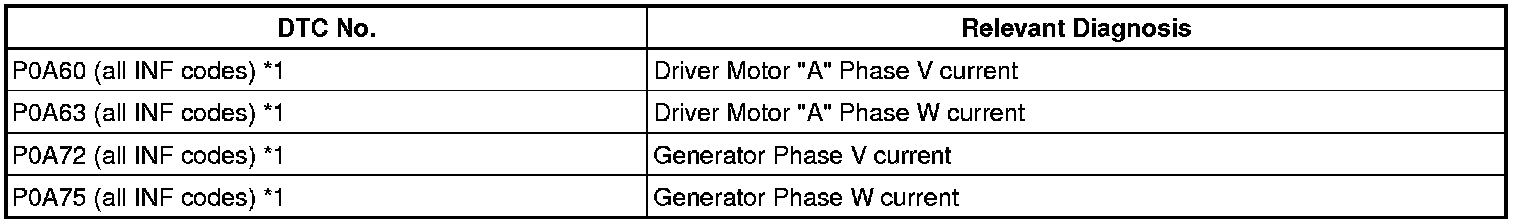

- *1: If any INF codes are output for this DTC, refer to the corresponding diagnostic flowchart.
- Turning the power switch on (IG) with the service plug grip and inverter cover removed causes interlock switch system DTC P0A0D-350 to be output.
- P0A1F-129 may be output due to a malfunction which causes the DTCs in the table above to be output. In this case, first troubleshoot the output DTCs in the table above. Then, perform a reproduction test to check that no DTCs are output.

NG -- GO TO DTC CHART
NO -- REPLACE BATTERY SMART UNIT
